2x10x1.25 Double Acting Hydraulic Grapple Cylinder Prince CF0158

Item Number: 9-12852

Price: $103.50
TOP
Back to top

2x10x1.25 Double Acting Hydraulic Grapple Cylinder Prince CF0158

  • 2x10x1.25 Double Acting Hydraulic Grapple Cylinder Prince CF0158
  • 2x10x1.25 Double Acting Hydraulic Grapple Cylinder Prince CF0158 - Alternate 1
  • 2x10x1.25 Double Acting Hydraulic Grapple Cylinder Prince CF0158 - Alternate 2

2x10x1.25 Double Acting Hydraulic Grapple Cylinder Prince CF0158

item number: 9-12852 PRICE: $103.50 496 In Stock Regular Stock Item



Available for in store pickup in our Lincoln, NE location
✓Add to Wishlist
calculate shipping
Calculate Shipping for Item 9-12852
2x10x1.25 Double Acting Hydraulic Grapple Cylinder Prince CF0158
Item Number: 9-12852
Price: $103.50
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
  • This item is on page 56 of our current catalog
Description
DESCRIPTION

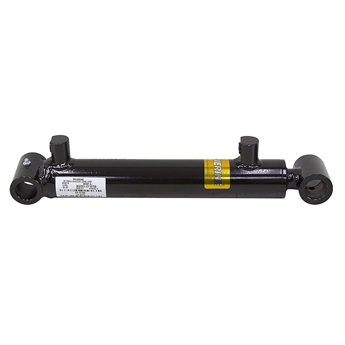

2" x 10" x 1.25" DA HYDRAULIC GRAPPLE CYLINDER
Brand New.  PRINCE WOLVERINE double acting hydraulic cylinder. Ideal size for use as a grapple cylinder and for other implement attachments. Grease zerk on each crosstube.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 2" x 10"
  • Barrel Thickness 0.1875"
  • Gland Retainer Threaded in
  • Pressure 3000 PSI max.
  • Rod Dia. 1.25"
  • Ports SAE 6
  • Retracted Length 17"
  • Gland Face to Rod Pin Center 1.57"
  • Shpg. 19 lbs.
END MOUNTINGS
  • Rod End Cross-Tube
  • O.D. 2"
  • Width 3"
  • Pin Hole 1-1/4"
  • Base End Cross-Tube
  • O.D. 2"
  • Width 3"
  • Pin Hole 1-1/4"
More Specs
MORE SPECS
Click on boxes below for more information about this product.
Dimensional DiagramMore Specs
