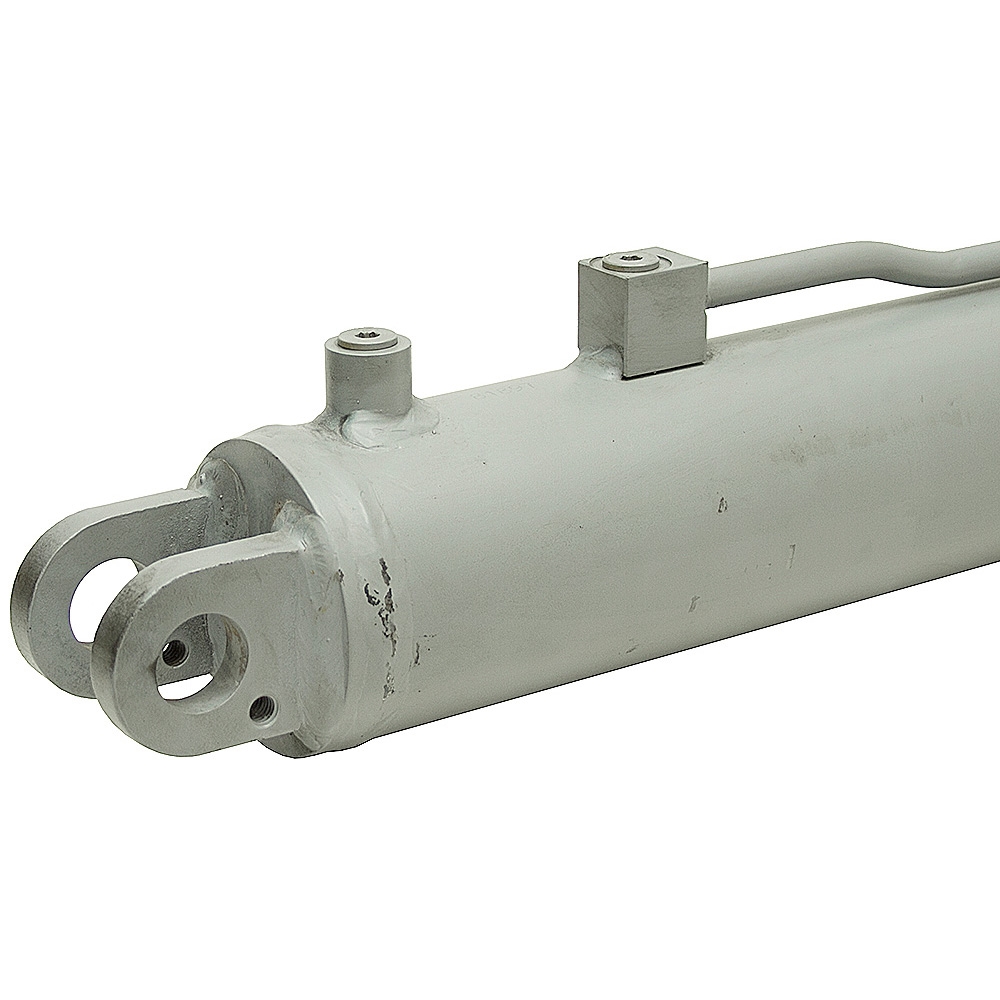

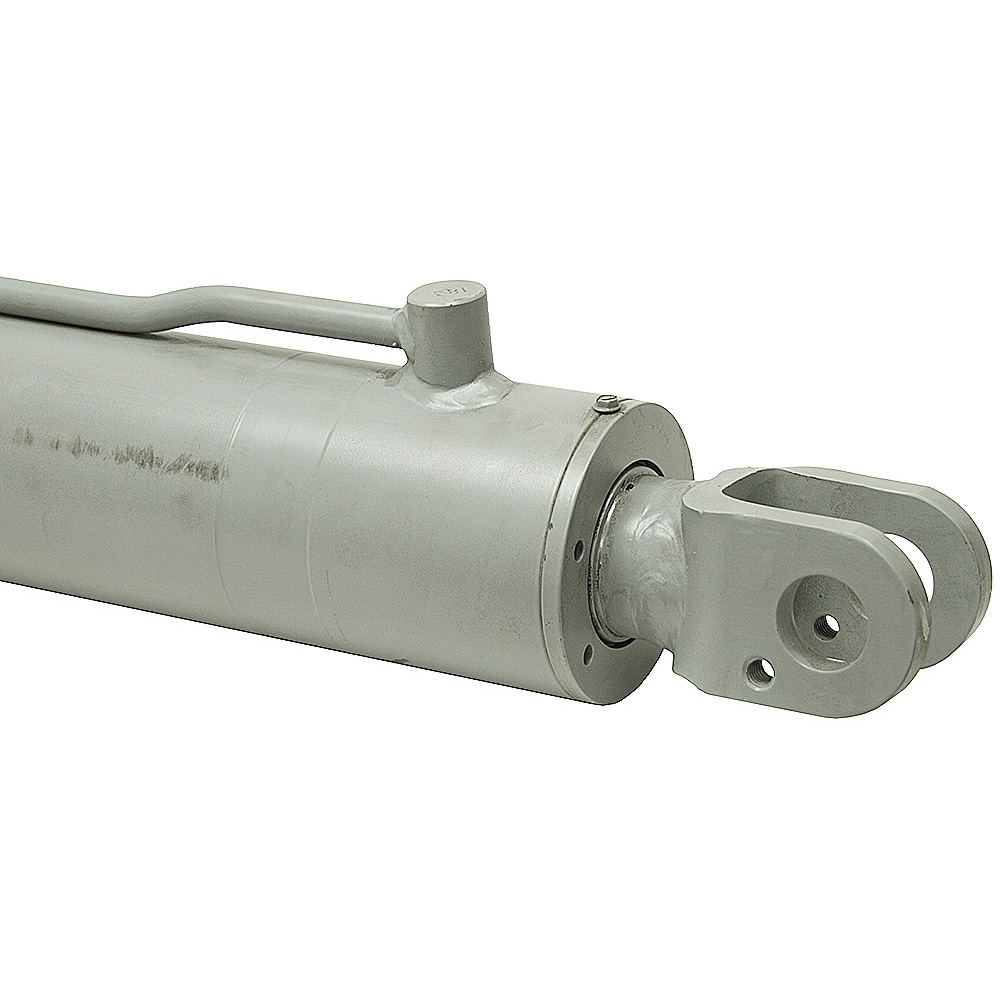

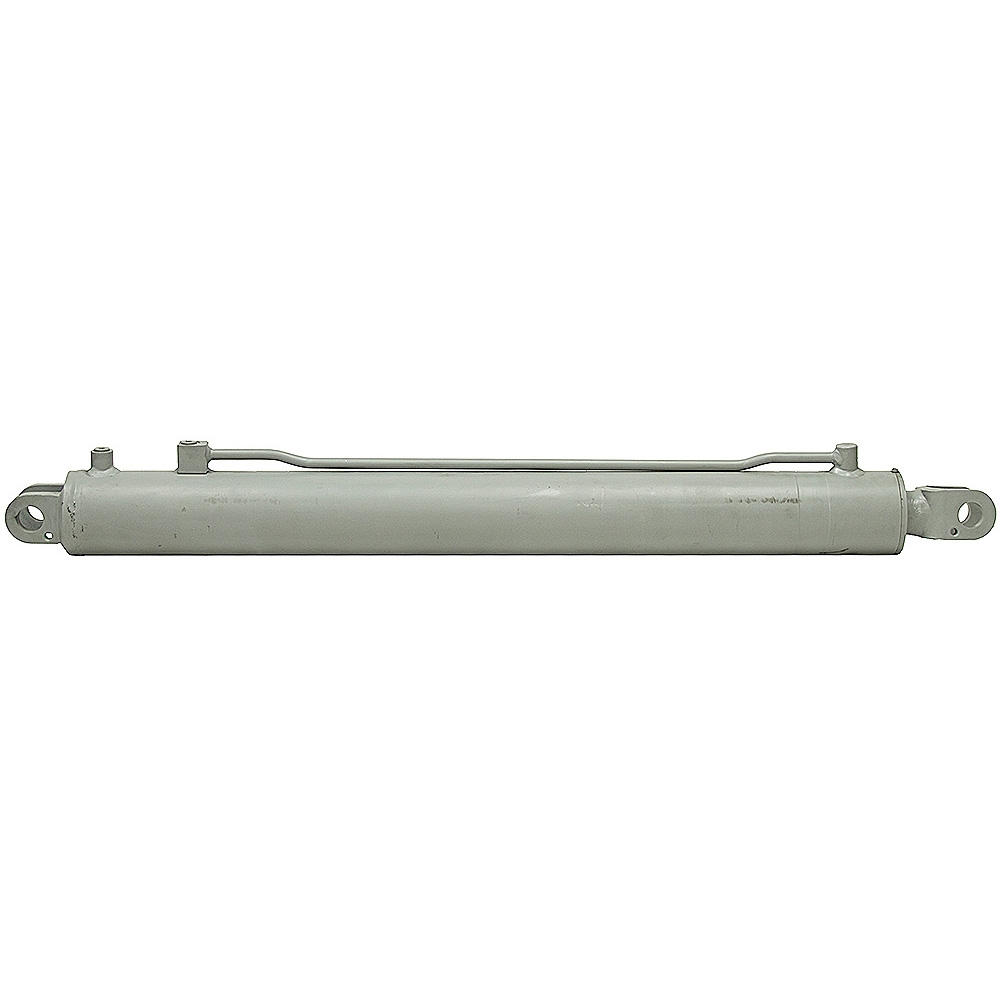

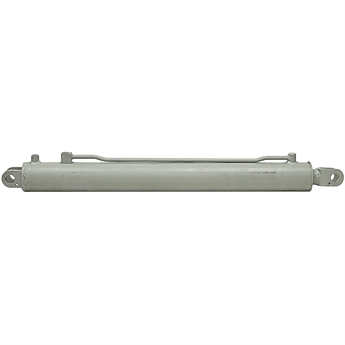

3.25x31x2 Double Acting Hydraulic Cylinder

3.25" x 31" x 2" DA HYDRAULIC CYLINDER
New. Welded cylinder with thread-in gland cap. Parker Mobile Cylinder Division part# C5219. Both ports at base end of cylinder with transfer tube to retract port. Extend port has removable restrictor with 0.075" diameter orifice.

SPECIFICATIONS
Double Acting Bore x Stroke 3-1/4" x 31" Barrel Thickness 1/4" Pressure 3000 PSI max. Rod Dia. 2"	Extend Port SAE 6, restricted Retract Port SAE 6 Retracted Length 41-1/4" Shpg. 74 lbs.

END MOUNTINGS
Rod End Clevis Outside Width 2-5/8" Inside Width 1-9/16" Throat Depth 1-1/2" Pin Hole 1-1/8"	Base End Clevis Outside Width 2-1/2" Inside Width 1-1/2" Throat Depth 1-3/16" Pin Hole 1-1/8"
