Description
DESCRIPTION

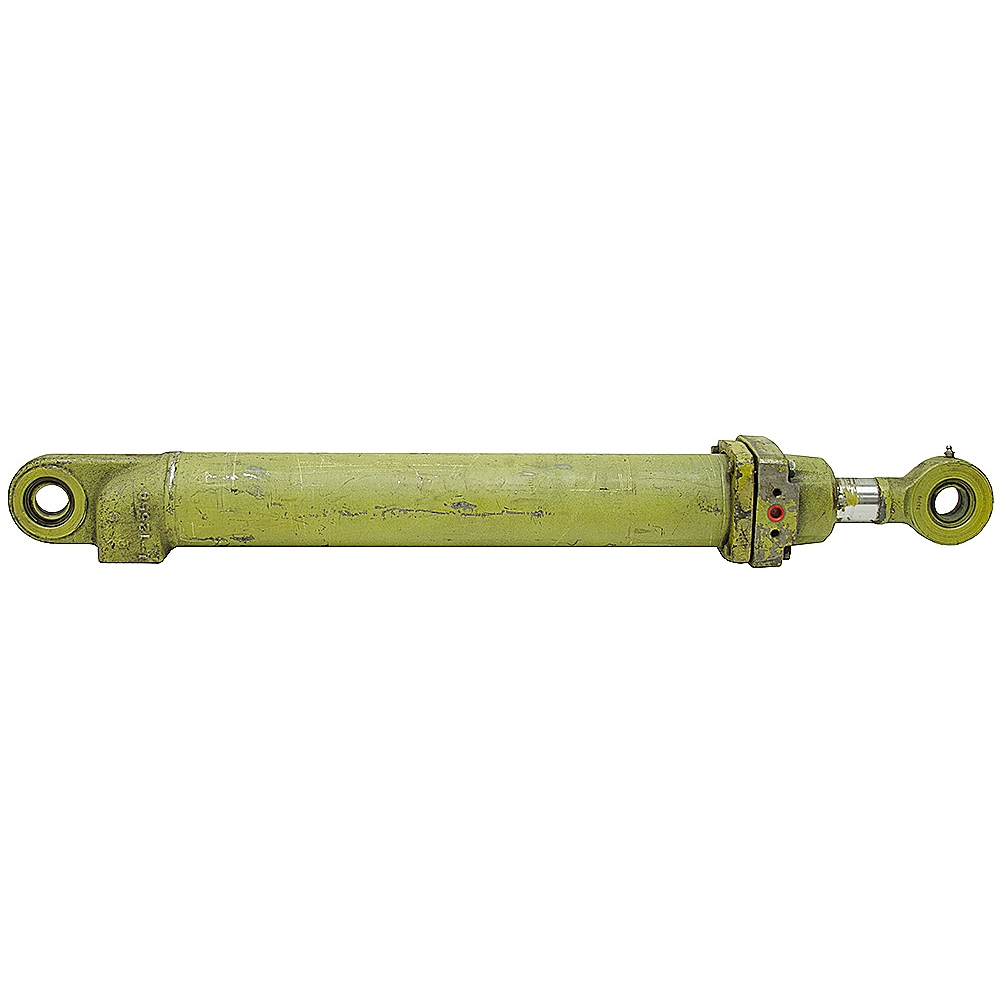

3.5" x 20" x 2" DA HYDRAULIC CYLINDER
Used, old inventory. Welded cylinder with bolt-on gland cap.


SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3-1/2" x 20"
  • Barrel Thickness 1/4"
  • Pressure 3000 PSI max.
  • Rod Dia. 2"

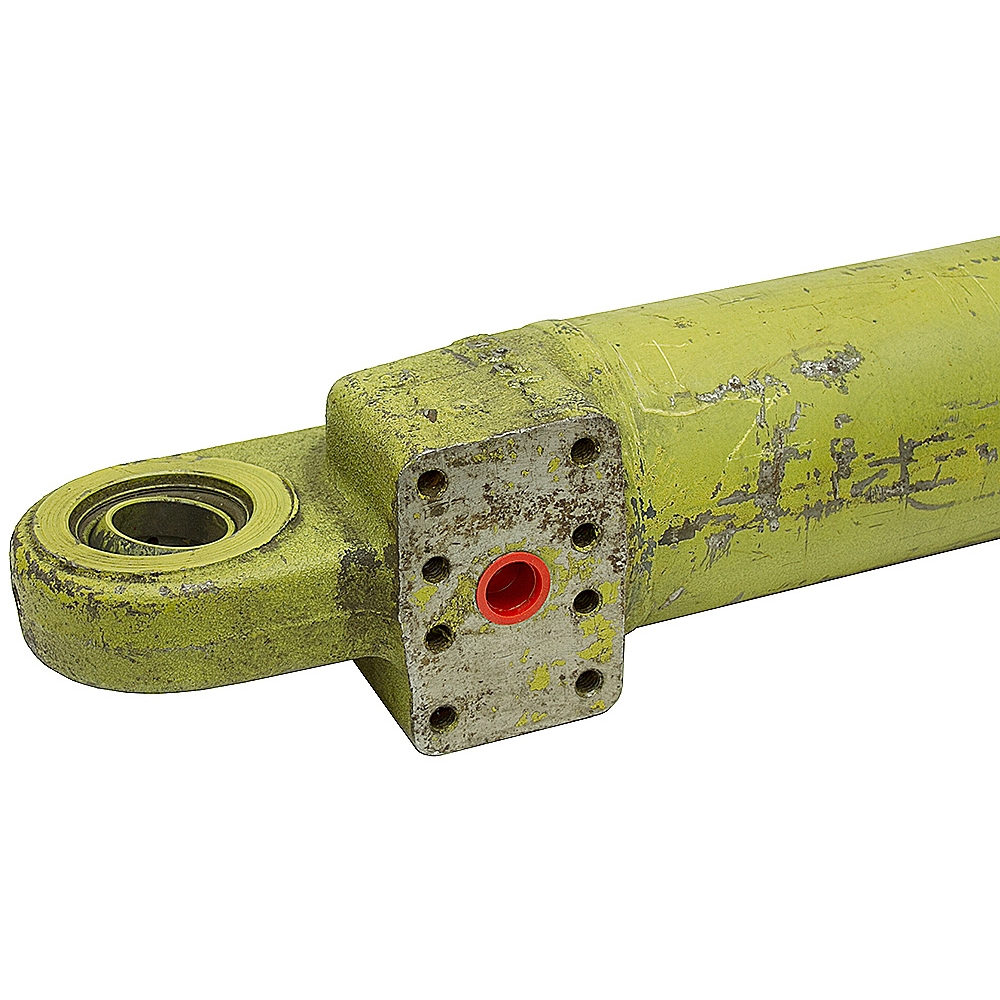

  • Extend Port 3/4" I.D. port, four mounting holes tapped 3/8" - 16 on 2" x 1-1/8" or 2" or 3"  centers
  • Retract Port 9/16" I.D. port, two mounting holes on 1-7/8" centers
  • Retracted Length 38"
  • Shpg. 88 lbs.
END MOUNTINGS

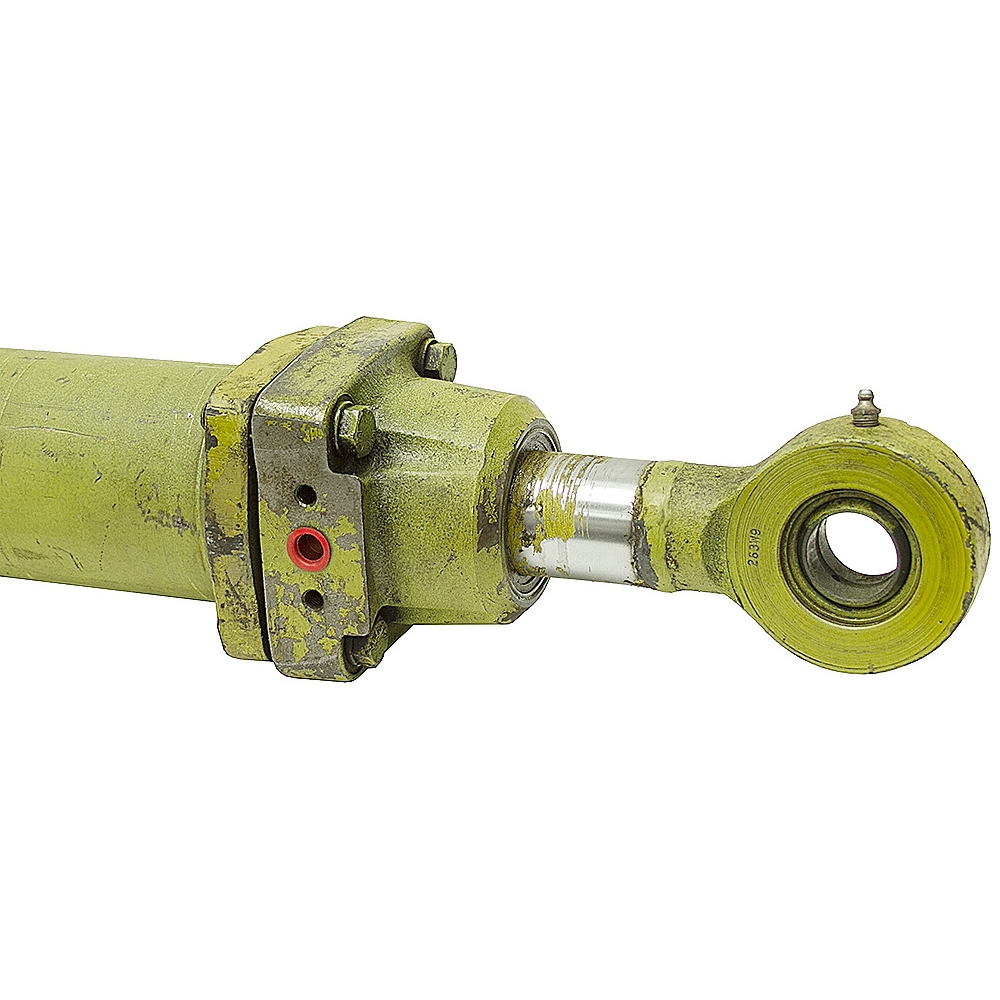

  • Rod End Tang w/ swivel eye
  • Max Thickness 1-1/2"
  • Pin Center to Tang End 1-7/8"
  • Pin Hole 1-3/8"
  • Base End Tang w/ swivel eye
  • Max Thickness 1-9/16"
  • Pin Center to Tang End 1-7/8"
  • Pin Hole 1-3/8"
