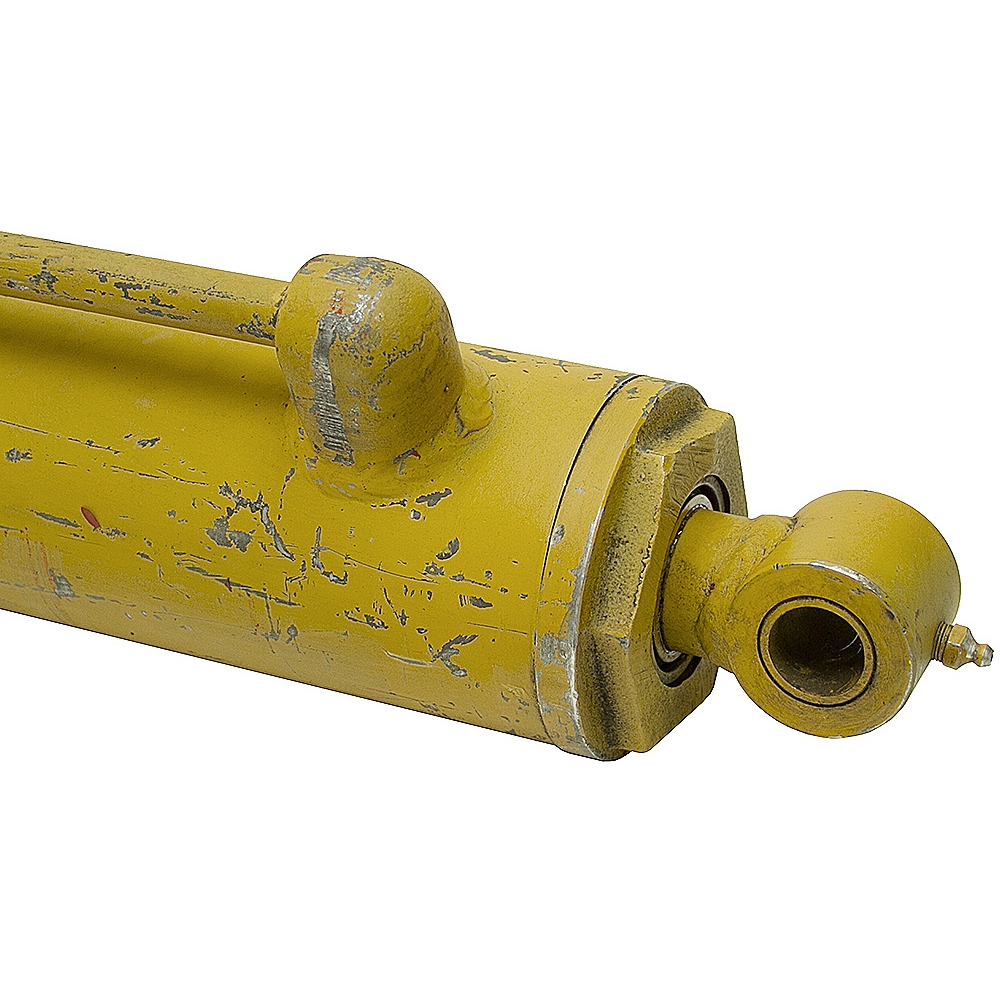

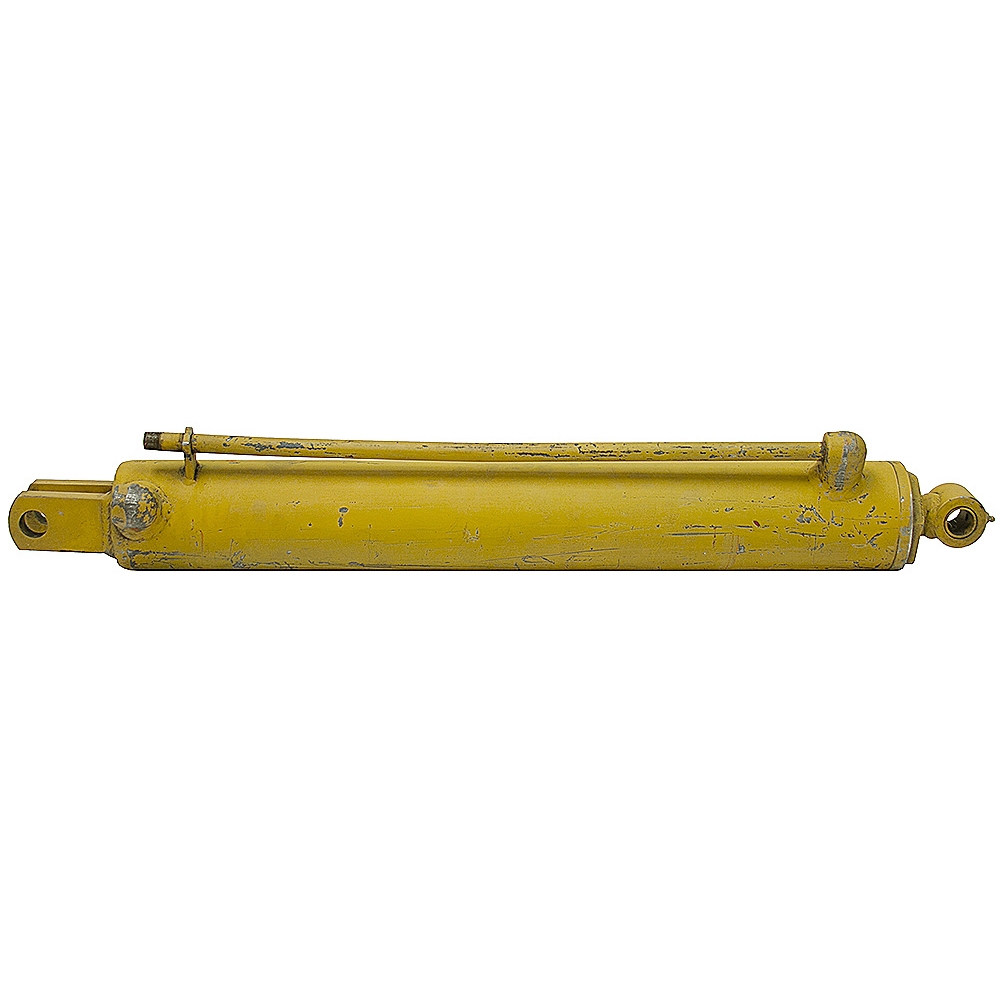

3.5x22x1.5 DA Hydraulic Cylinder

3.5" x 22" x 1.5" DA HYDRAULIC CYLINDER
Used, old inventory.  Seals leak, sold as-is.  Welded cylinder with thread-in gland cap. Both ports located at base end of cylinder.

SPECIFICATIONS
Double Acting Bore x Stroke 3-1/2" x 22" Barrel Thickness 1/4" Pressure 3000 PSI max. Rod Dia. 1-1/2"	Ports EXT 3/8" NPT female / RET 3/8" NPT male  Retracted Length 33" Shpg. 53 lbs.

END MOUNTINGS

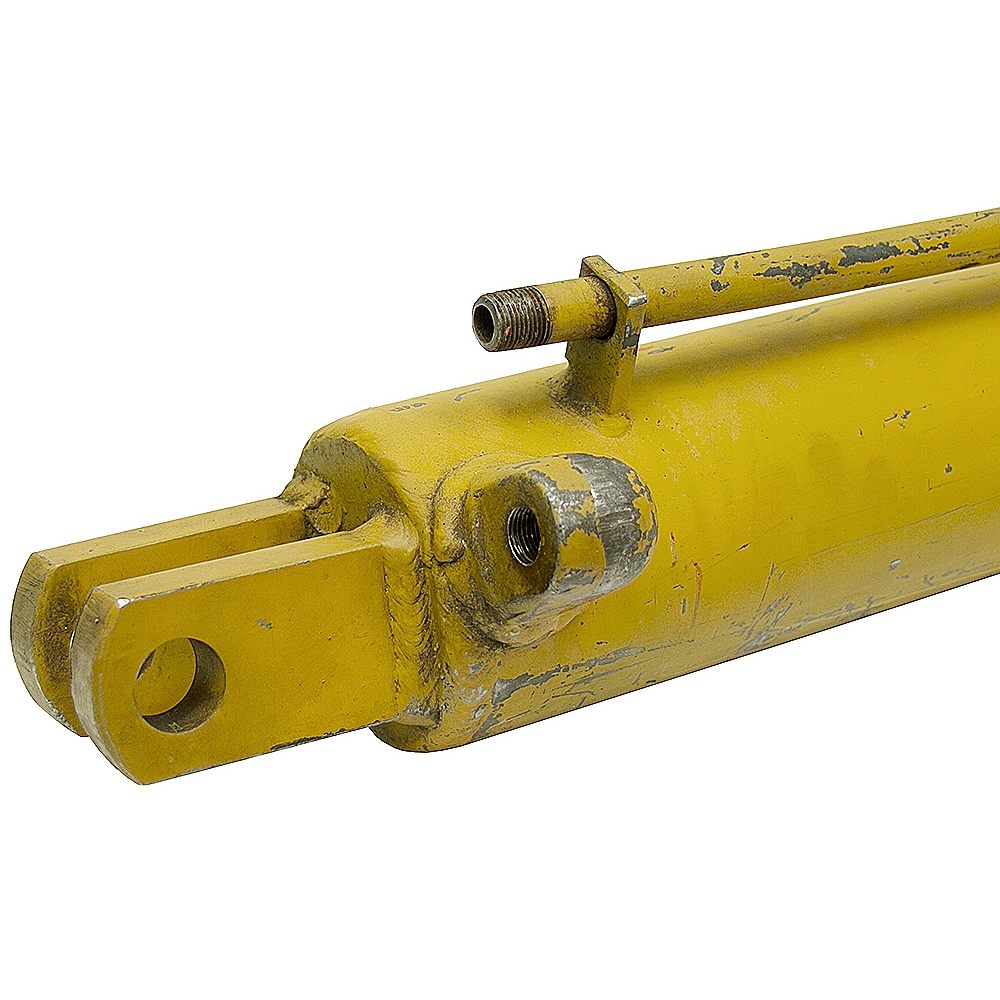

Rod End Crosstube O.D. 2" Width 1-3/4" Pin Hole 1"	Base End Clevis Outside Width 2-5/8" Inside Width 1-1/16" Throat Depth 2-3/4" Pin Hole 1"
