3.75x122x2.25 DA Hydraulic Cylinder 706-7623 K1332-2 0-85-8

Item Number: 9-10325

Price: $609.95
TOP
Back to top

3.75x122x2.25 DA Hydraulic Cylinder 706-7623 K1332-2 0-85-8

3.75x122x2.25 DA Hydraulic Cylinder 706-7623 K1332-2 0-85-8

item number: 9-10325 PRICE: $609.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 9-10325
3.75x122x2.25 DA Hydraulic Cylinder 706-7623 K1332-2 0-85-8
Item Number: 9-10325
Price: $609.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description

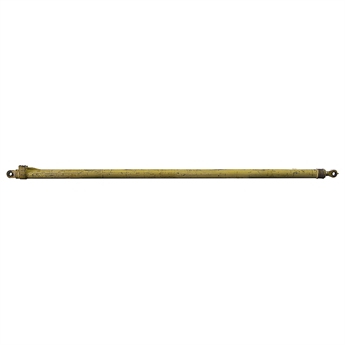

3.75" x 122" x 2.25" DA HYDRAULIC CYLINDER
Unused, old inventory. Welded cylinder with thread-in gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3-3/4" x 122"
  • Barrel Thickness 1/4"
  • Pressure 3000 PSI max.
  • Rod Dia. 2-1/4"
  • Extend Port 1-1/4" Four-Bolt Flange, Code 61
  • Retract Port 1" Four-Bolt Flange, Code 61
  • Retracted Length 150"
  • Shpg. 440 lbs.
END MOUNTINGS
  • Rod End Tang w/ Swivel Eye
  • Max Thickness 1-5/16"
  • Pin Center to Tang End 1-3/4"
  • Pin Hole 1-1/2"
  • Base End Tang w/ Swivel Eye
  • Max Thickness 1-5/16"
  • Pin Center to Tang End 2"
  • Pin Hole 1-1/2"
Due to the size of this item it must ship on flatbed trailer, it cannot be shipped in a standard enclosed freight trailer. Please contact us for a freight quote.
