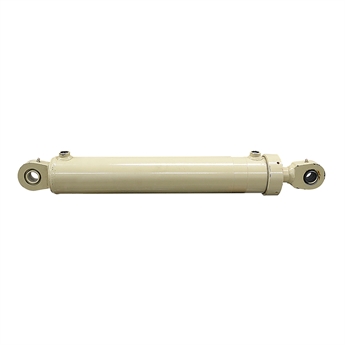

3" x 15.375" x 1.5" DOUBLE ACTING HYDRAULIC CYLINDER Old unused inventory, Volvo 20198347, welded, double acting hydraulic cylinder.
SPECIFICATIONS |
- Double Acting
- Bore x Stroke 3" x 15.375"
- Gland Retainer Externally threaded
- Pressure 2500 PSI max.
- Rod Dia. 1.5"
|
- Ports SAE 6
- Retracted Length 26.5"
- Gland Face to Rod Pin Center 3.25"
- Shpg. 41 lbs.
|
END MOUNTINGS |
|
- Rod End Swivel Eye
- Width 1.235"
- Pin-Center-To-Swivel Eye-End 1.405"
- Swivel Eye Width 1.5"
- Pin Hole 1"
|
- Base End Swivel Eye
- Width 1.232"
- Pin-Center-To-Swivel Eye-End 1.41"
- Swivel Eye Width 1.5"
- Pin Hole 1"
|
