3x16.75x1.5 DA Hydraulic Cylinder 158047

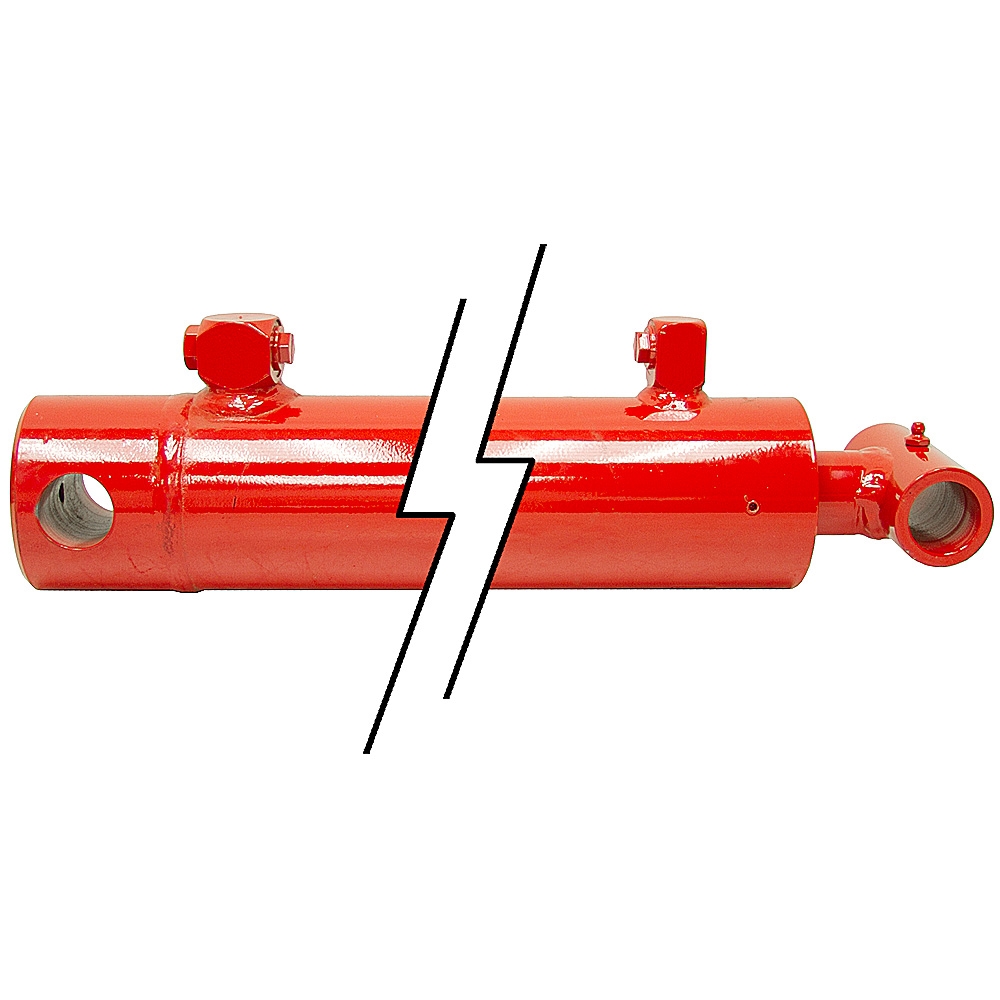

3" X 16-3/4" X 1-1/2" LOADER HYDRAULIC CYLINDER
New, hydraulic cylinders manufactured by CROSS for MASSEY FERGUSON loaders. Welded construction. Thread in gland cap. Ports face each other. Boom and dipper cylinder for MASSEY FERGUSON MF1480 and AGCO SH19C loaders.

SPECIFICATIONS
Double Acting Bore x Stroke 3" x 16-3/4" Pressure 2500 PSI max. Rod Dia. 1-1/2"	Ports SAE 6 Retracted Length 24-3/4" Shpg. 36 lbs.

END MOUNTINGS

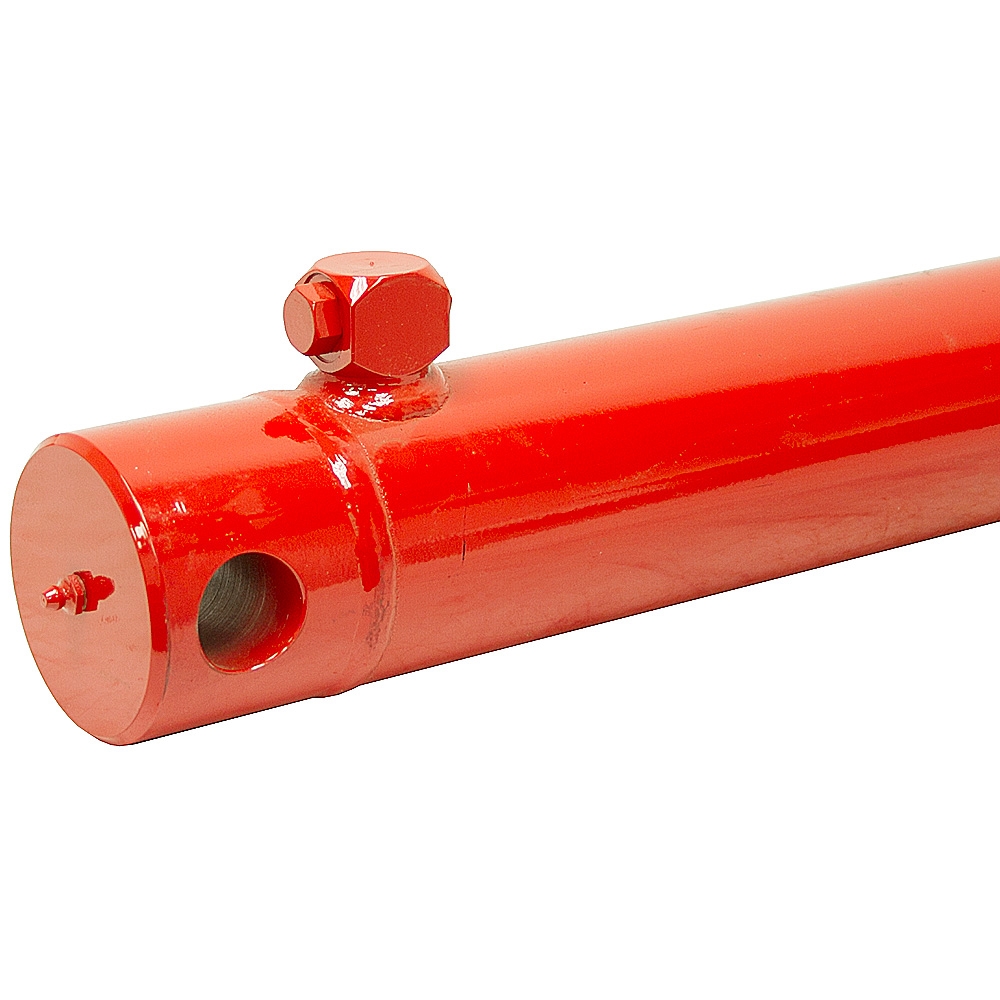

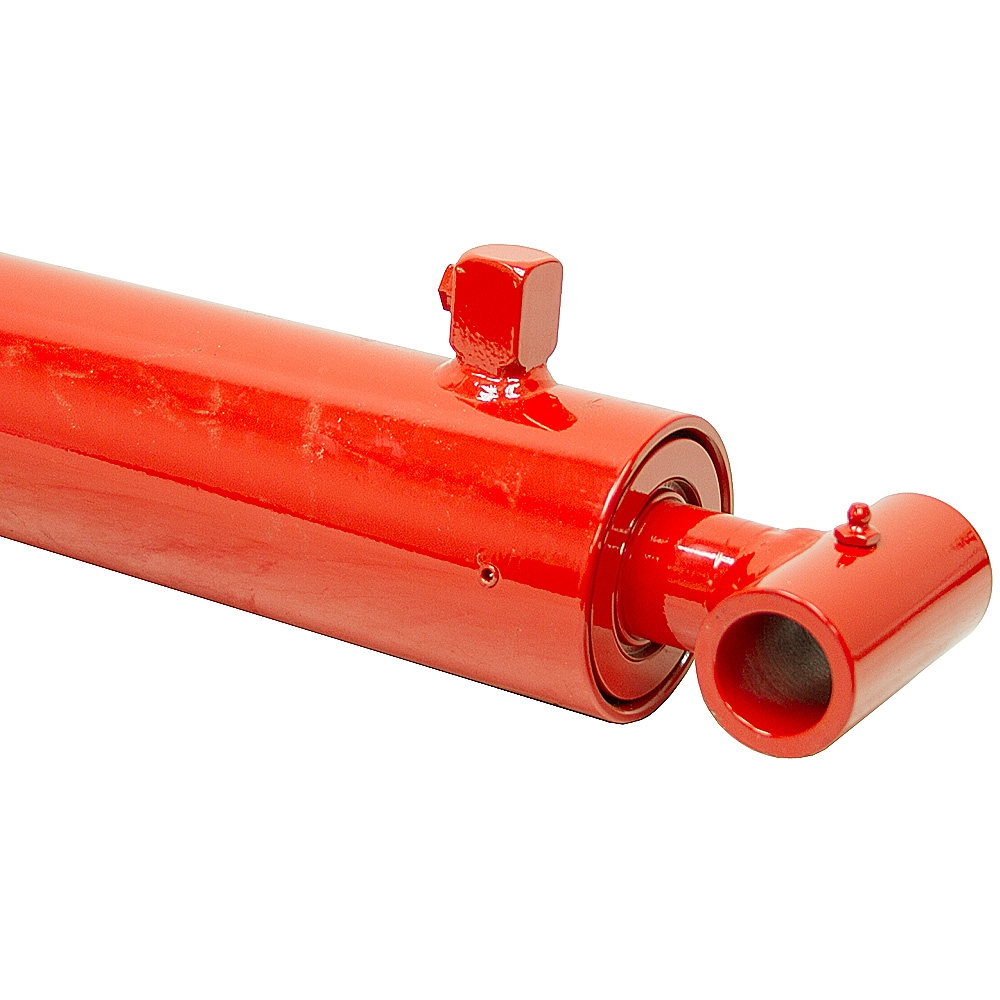

Rod End Crosstube Outside Width 3-1/2" Pin Hole 1-1/4"	Base End Thru-hole Outside Width 3-3/8" Pin Hole 1-1/4"
