3x8x1.125 Double Acting Hydraulic Cylinder Prince SAE 1708

Item Number: 9-11643

Price: $79.95
TOP
Back to top

3x8x1.125 Double Acting Hydraulic Cylinder Prince SAE 1708

  • 3x8x1.125 Double Acting Hydraulic Cylinder Prince SAE 1708
  • 3x8x1.125 Double Acting Hydraulic Cylinder Prince SAE 1708 - Alternate 1
  • 3x8x1.125 Double Acting Hydraulic Cylinder Prince SAE 1708 - Alternate 2

3x8x1.125 Double Acting Hydraulic Cylinder Prince SAE 1708

item number: 9-11643 PRICE: $79.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-11643
3x8x1.125 Double Acting Hydraulic Cylinder Prince SAE 1708
Item Number: 9-11643
Price: $79.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION

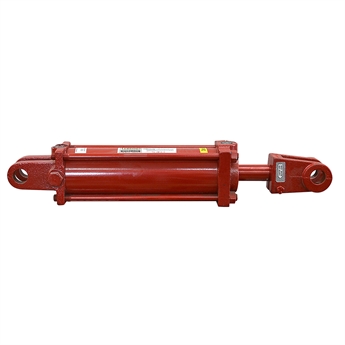

3" x 8" x 1.125" DA HYD CYL
Unused old inventory. PRINCE double acting hydraulic cylinder. Numbers on cylinder SAE 1708.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3" x 8"
  • Barrel Thickness 0.183"
  • Gland Retainer Tie-Rod
  • Pressure 2500 PSI
  • Rod Dia. 1.125"
  • Ports SAE 8
  • Retracted Length 19.75"
  • Gland Face to Rod Pin Center 5.25"
  • Shpg. 27 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 2.56"
  • Inside Width 1.08"
  • Throat Depth 2.3"
  • Pin Hole 1"
  • Base End Clevis
  • Outside Width 2.38"
  • Inside Width 1.17"
  • Throat Depth 2.89"
  • Pin Hole 1"
