Description

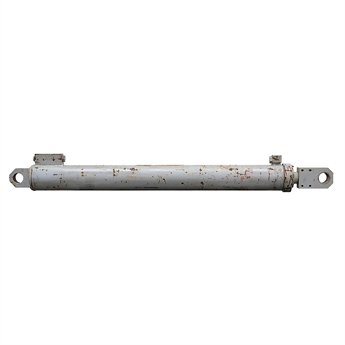

4.5" x 41.5" x 2.5" DA HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder. Cylinder has Dana Gresen SAE 14 cartridge valve marked with numbers 0313301 2983308 on port. Heil model# 0014871 384661 1100LT

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4.5" x 41.5"
  • Barrel Thickness 0.266"
  • Gland Retainer Externally threaded gland cap
  • Pressure 3000 PSI max.
  • Rod Dia. 2.5"
  • Ports SAE 12
  • Retracted Length 59.5"
  • Shpg. 220lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2.90"
  • Pin-Center-To-Tang-End 1.76"
  • Pin Hole 2"
  • Base End Tang
  • Thickness, Max 2.03"
  • Pin-Center-To-Tang-End 1.73"
  • Pin Hole 2"
