Description

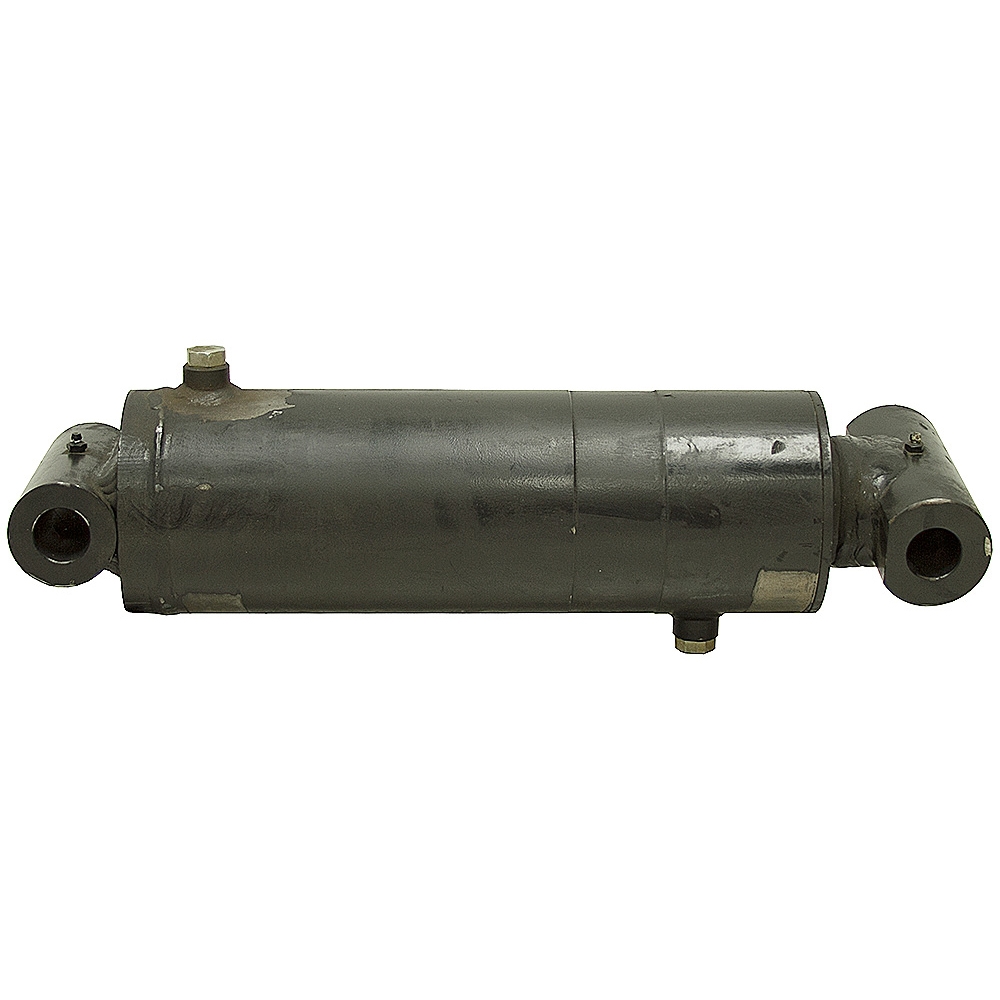

4.75" x 10" x 3.125" DA HYDRAULIC CYLINDER
New, Prince Mfg model# BD-0063 welded cylinder with thread-in gland cap. Ports offset 180°.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4-3/4" x 10"
  • Barrel Thickness 5/16"
  • Pressure 3000 PSI max.
  • Rod Dia. 3-1/8"
  • Ports SAE 8
  • Retracted Length 20"
  • Shpg. 90 lbs.
END MOUNTINGS
  • Rod End Crosstube
  • Width 5-15/16"
  • O.D. 2-3/4"
  • Pin Hole 1-1/4"
  • Base End Crosstube
  • Width 5-1/2"
  • O.D. 2-1/2"
  • Pin Hole 1-1/4"
