4.75x32x4 DA Hydraulic Cylinder

4.75" x 32" x 4" DA HYD CYL

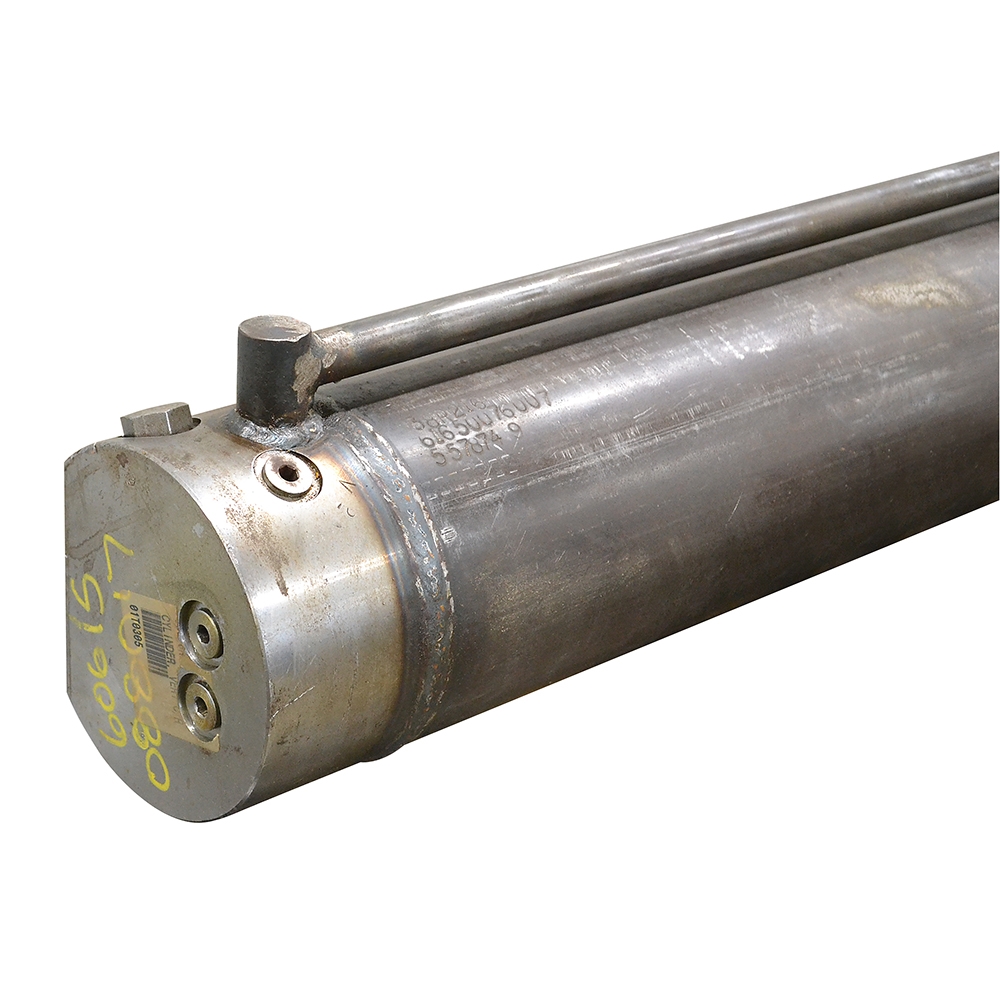

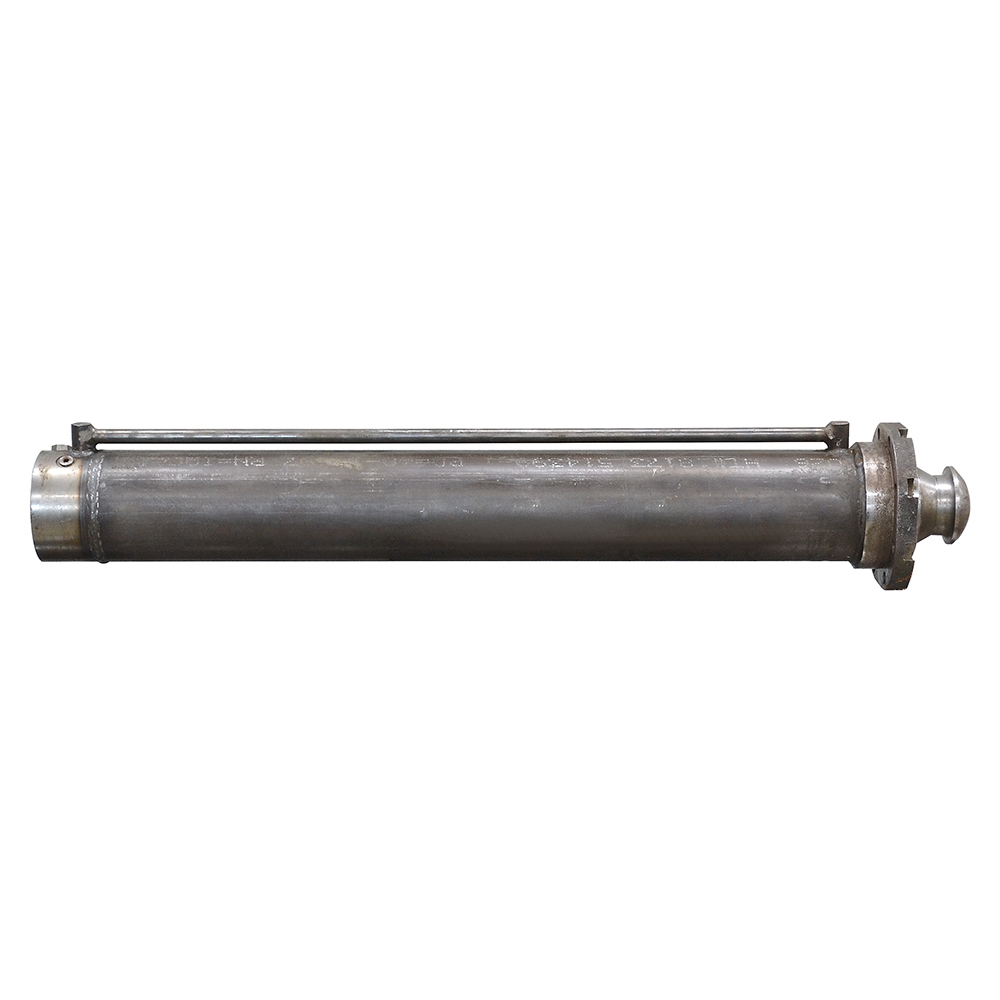

Unused old inventory. TEREX double acting hydraulic cylinder. Cylinder has two Sun cartridge valves with numbers OKE4 CBCA LHN (adjustable), OKJ4 CKCB XCN (non-adjustable). Numbers on cylinder 05-38R216D1.

SPECIFICATIONS
Double Acting Bore x Stroke 4.75" x 32" Barrel Thickness 0.37" Gland Retainer Threaded in gland Pressure 3000 PSI Rod Dia. 4"	Extend Port SAE 8 Retracted Port SAE 6 Retracted Length 45.5" Gland Face to Rod Pin Center 2.875" Shpg. 292 lbs.

END MOUNTINGS

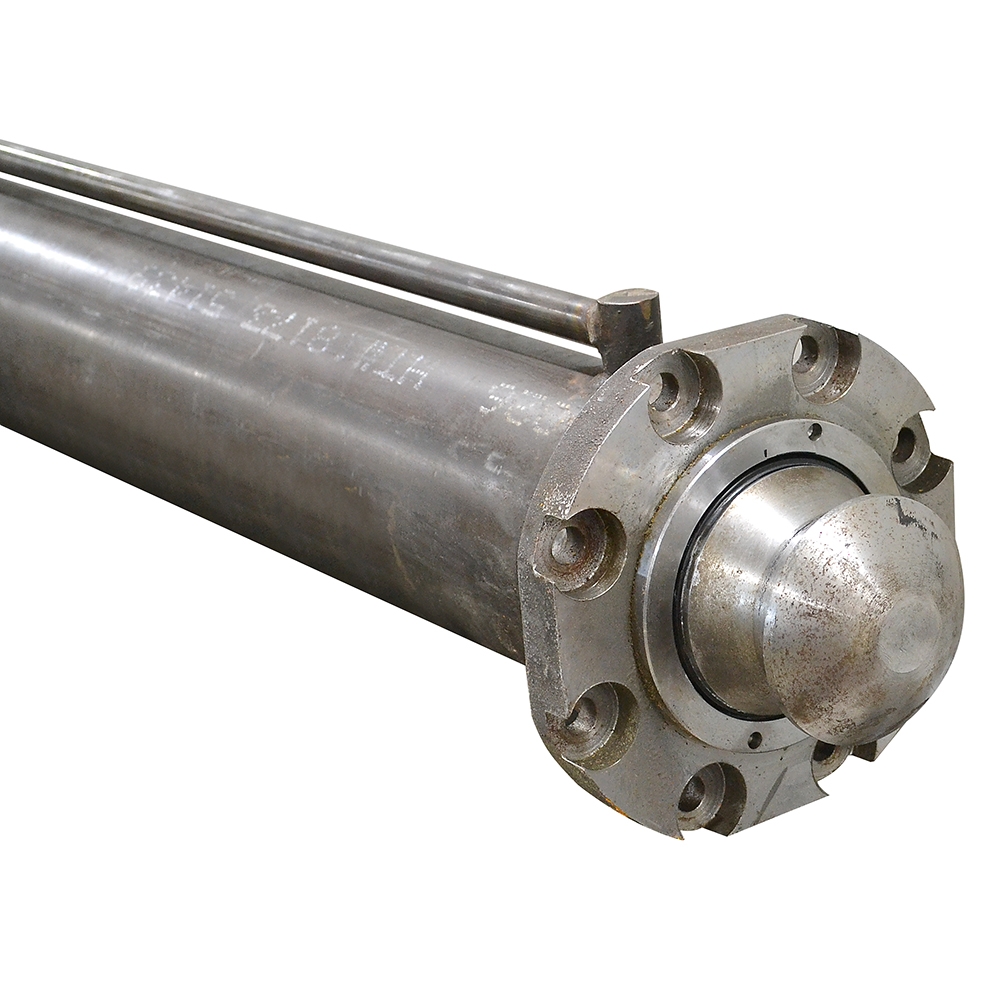

Rod End Half Ball Dimensions 2.875" x 3.875" Recessed Dimensions 1.75" x 3"	Base End Flange Dimensions 8.5" x 0.973" w/ eight, 0.59" bolt holes on 7.03" bolt circle
