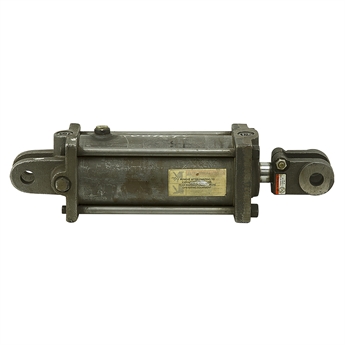

4.75" x 8" x 1.5" DA HYDRAULIC CYLINDER
New, tie-rod cylinder. Plugged orifice near base end of cylinder has two holes, one 1/16" I.D. and one 7/64" I.D. "9001094 AS-126 S/N R0031137 19763-2" stamped into cylinder barrel.
SPECIFICATIONS
|
- Double Acting
- Bore x Stroke 4-3/4" x 8"
- Barrel Thickness 1/4"
- Pressure 3000 PSI max.
- Rod Dia. 1-1/2"
|
- Ports SAE 8
- Retracted Length 20-1/4"
- Shpg. 59 lbs.
|
END MOUNTINGS |
|
- Rod End Clevis
- Outside Width 2-7/8"
- Inside Width 1-1/8"
- Throat Depth 1-3/4"
- Pin Hole 1"
|
- Base End Clevis
- Outside Width 2-13/16"
- Inside Width 1-5/16"
- Throat Depth 1-11/16"
- Pin Hole 1"
|
