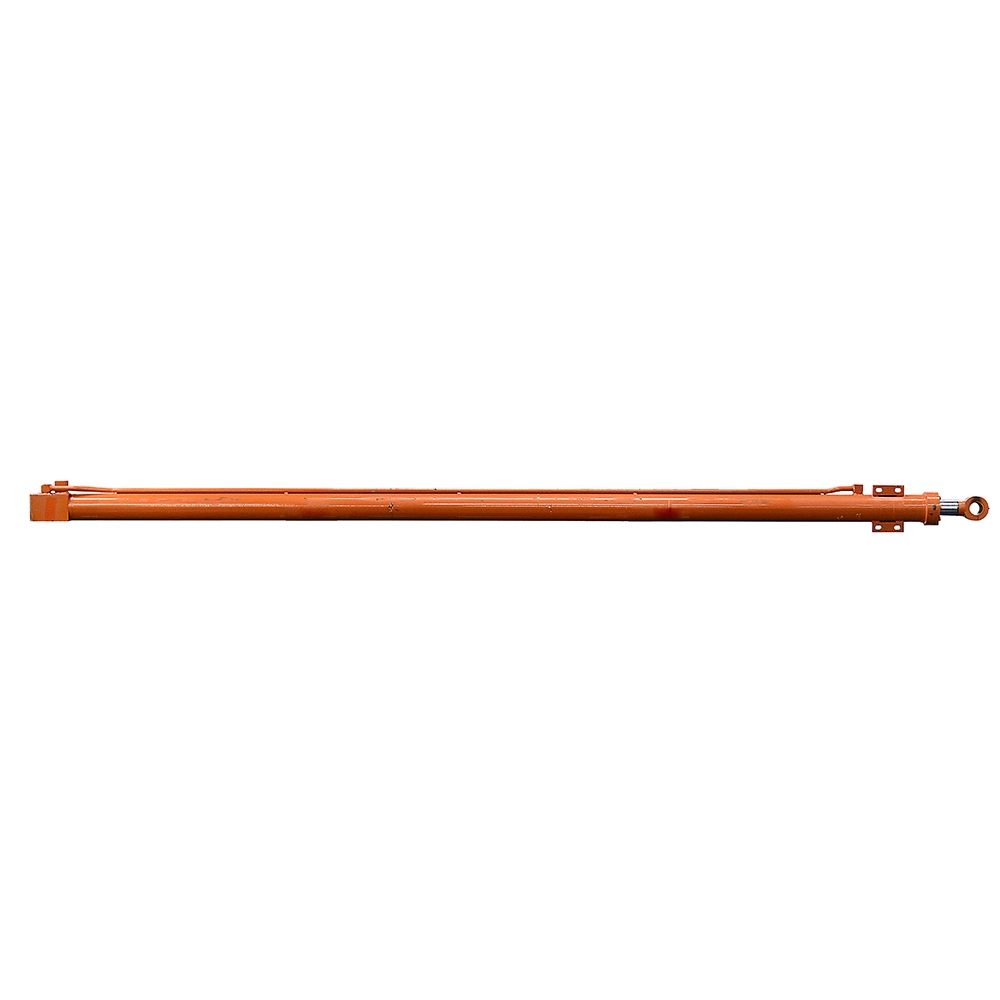

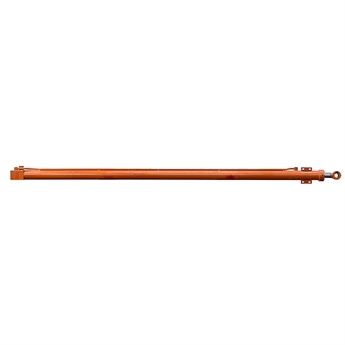

4" x 116.25" x 2.5" DA HYDRAULIC CYLINDER
Unused, old inventory. OMNIQUIP model# 10234848 welded cylinder with bolt-on gland cap. Manifold block at base end of cylinder has two cartridge valve ports with nylon blanks (sold as-is). Two mounting ears measuring 5" x 1-5/8" x 3/4" with 5/8" bolt holes on 3" centers welded to rod end of cylinder barrel. Retracted length measured from base end to rod pin center.
SPECIFICATIONS
|
- Double Acting
- Bore x Stroke 4" x 116-1/4"
- Barrel Thickness 1/4"
- Pressure 3000 PSI max.
- Rod Dia. 2-1/2"
|
- Ports SAE 12
- Retracted Length 155"
- Shpg. 500 lbs.
|
END MOUNTINGS |
|
- Rod End Tang
- Max Thickness 2-1/2"
- Pin Center to Tang End 2"
- Pin Hole 2"
|
- Base End Two 5/8"-11 x 1-3/4" deep tapped holes on 3" centers
|
