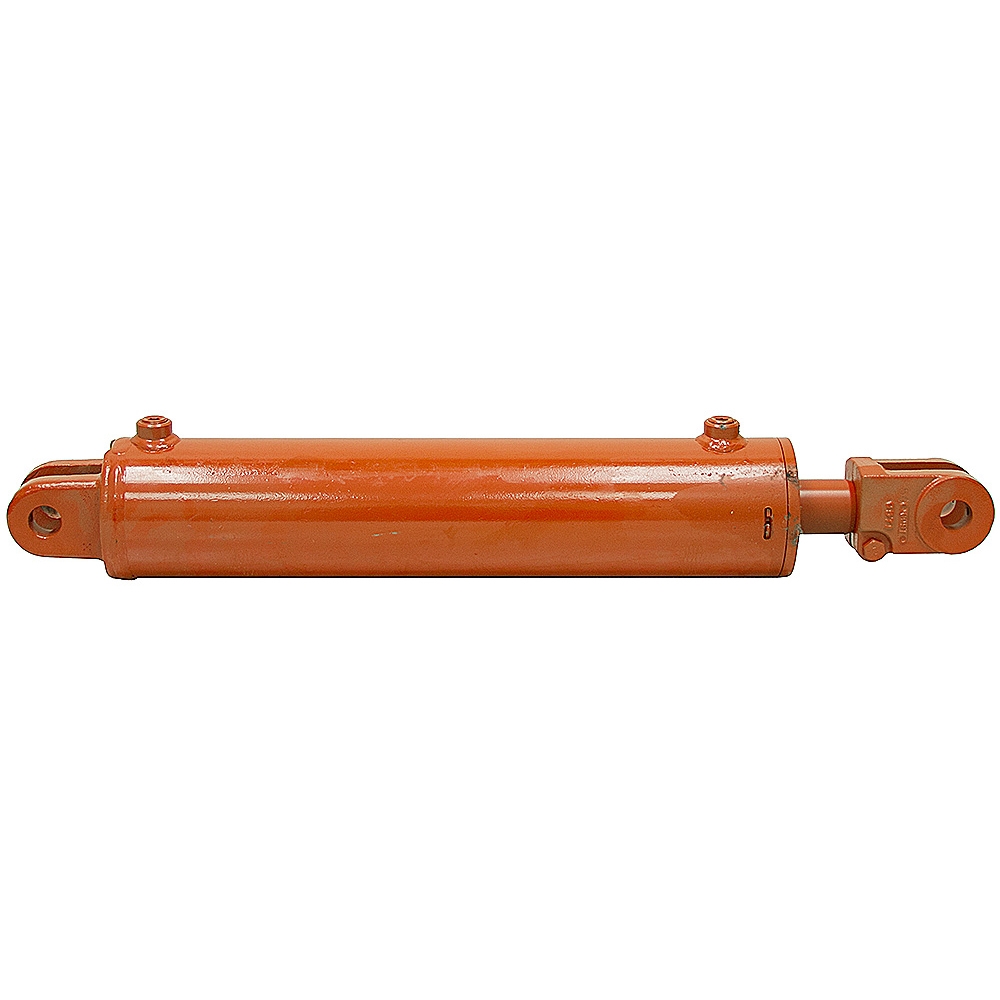

4x16x1.75 Prince DA Hydraulic Cylinder BA-0231

4" x 16" x 1.75" DA HYDRAULIC CYLINDER
New, Prince Mfg model# BA-0231 welded cylinder with wire-lock gland retainer. 1/4"-28 x 2-3/8" deep holes tapped into both rod end and base end clevis ears.

SPECIFICATIONS
Double Acting Bore x Stroke 4" x 16" Barrel Thickness 3/16" Pressure 3000 PSI max. Rod Dia. 1-3/4"	Ports 1/2" NPT Retracted Length 28" Shpg. 50 lbs.

END MOUNTINGS
Rod End Thread-On Clevis Outside Width 2-7/8" Inside Width 1-1/8" Throat Depth 1-13/16" Pin Hole 1"	Base End Clevis Outside Width 2-3/4" Inside Width 1-1/16" Throat Depth 1-3/4" Pin Hole 1"
