Description

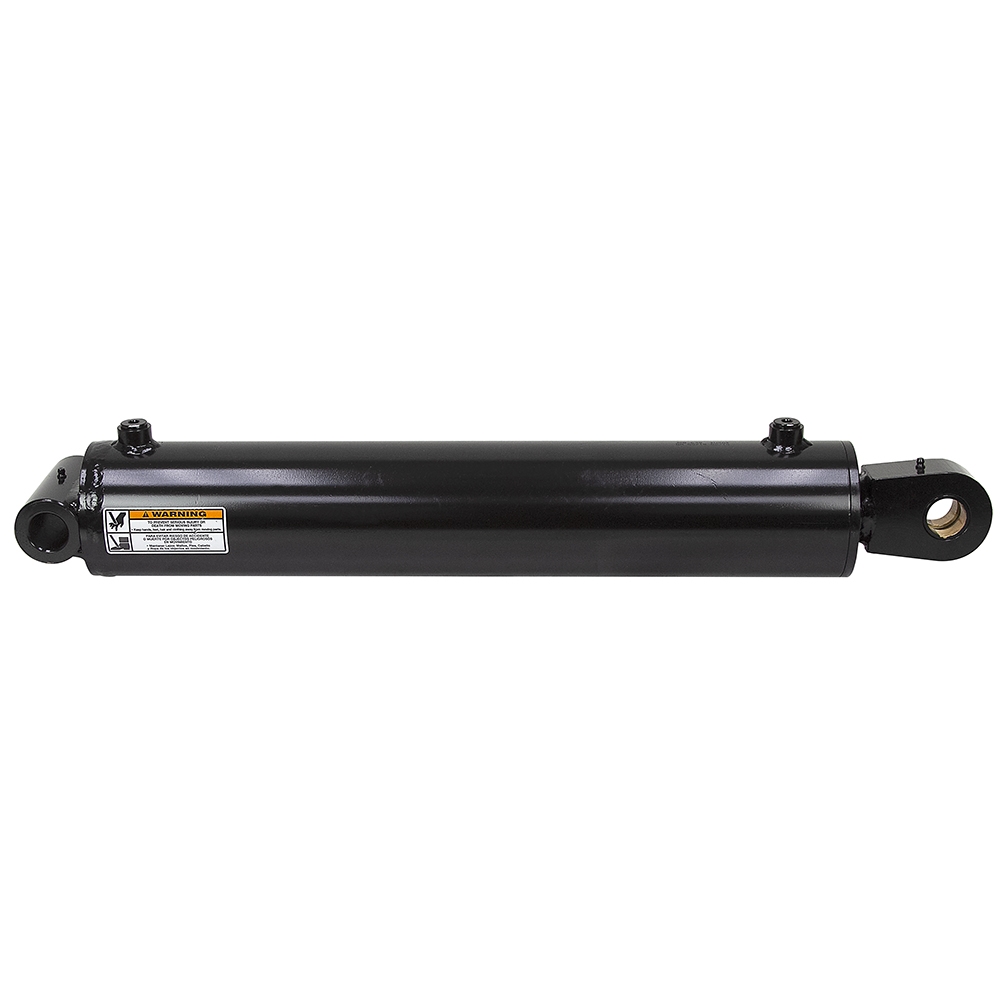

4" x 20" x 2" DA HYDRAULIC CYLINDER
New. Double acting hydraulic cylinder. Bailey model# 320-639

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4" x 20"
  • Barrel Thickness 0.25"
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 2"
  • Ports SAE 8
  • Retracted Length 29"
  • Gland Face to Rod Pin Center 2.98"
  • Shpg. 69 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2"
  • Pin-Center-To-Tang-End 1.5"
  • Pin Hole 1-1/4"
  • Base End Cross-Tube
  • O.D. 2.25"
  • Width 4.625"
  • Pin Hole 1-1/4"
