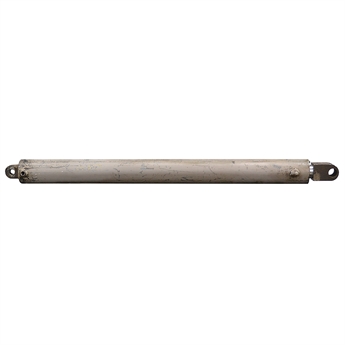

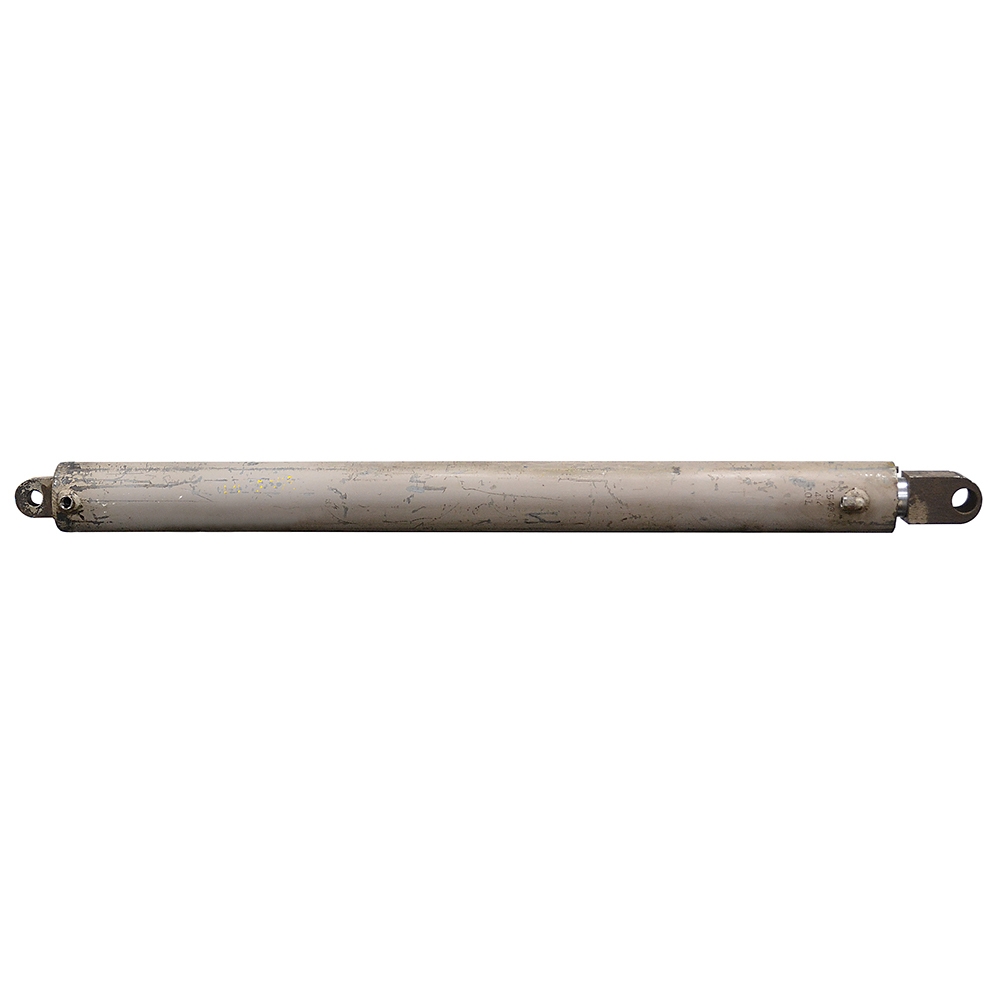

4" x 46.125" x 2.5" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder.
Cylinder has scaring on rod. Numbers on cylinder 27344 01-322549 2549C 101669.
SPECIFICATIONS
|
- Double Acting
- Bore x Stroke 4" x 46.125"
- Barrel Thickness 0.253"
- Gland Retainer Bolt on gland
- Pressure 3000 PSI
- Rod Dia. 2.5"
|
- Ports 3/8" NPT
- Retracted Length 58.125"
- Gland Face to Rod Pin Center 4.125"
- Shpg. 185 lbs.
|
END MOUNTINGS | |

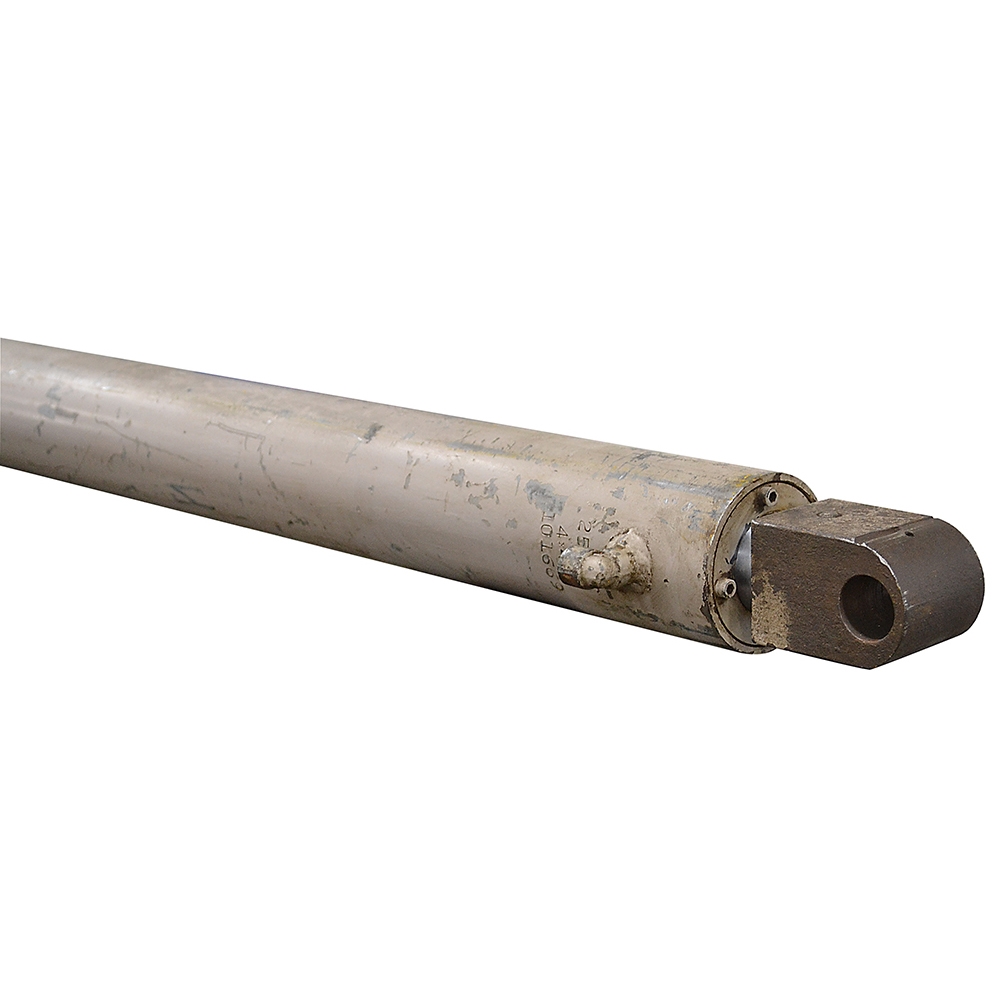

- Rod End Tang
- Thickness, Max 3.01"
- Pin-Center-To-Tang-End 1.07"
- Pin Hole 1-1/2"
|

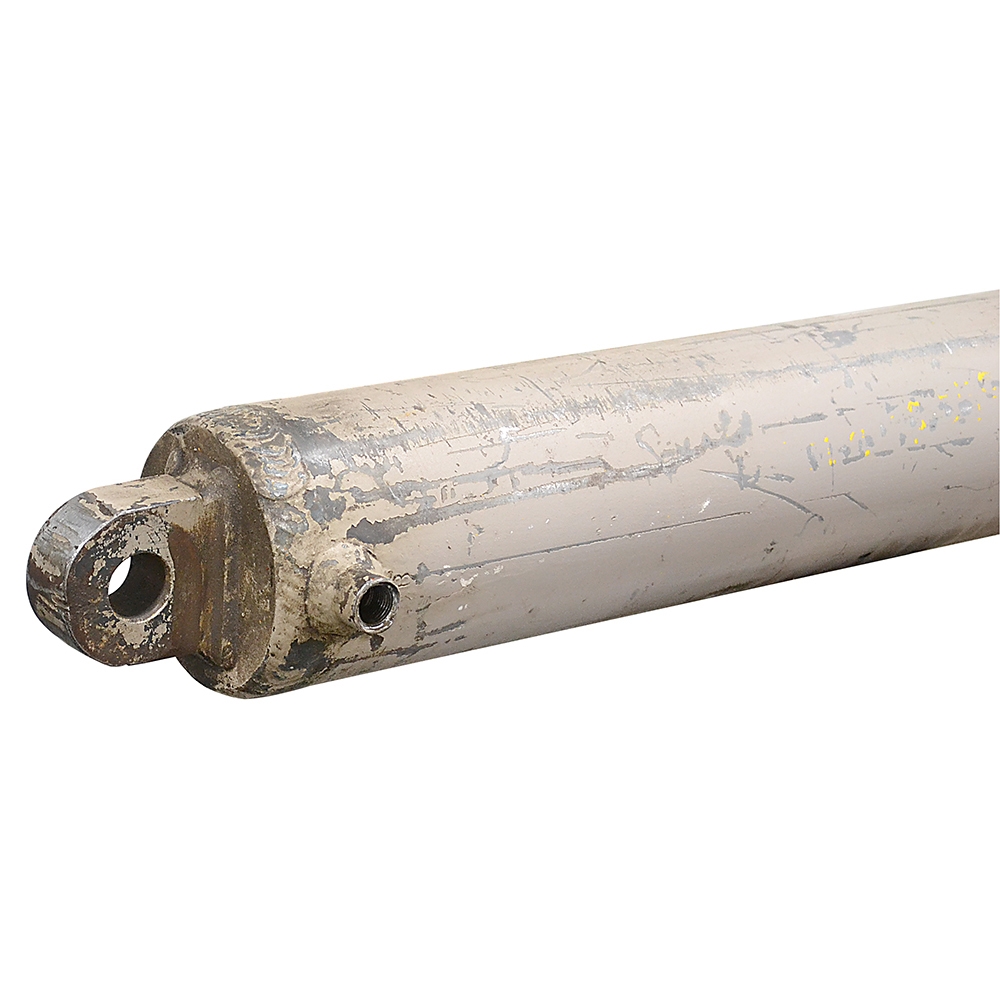

- Base End Tang
- Thickness, Max 1.24"
- Pin-Center-To-Tang-End 1.25"
- Pin Hole 1"
|
