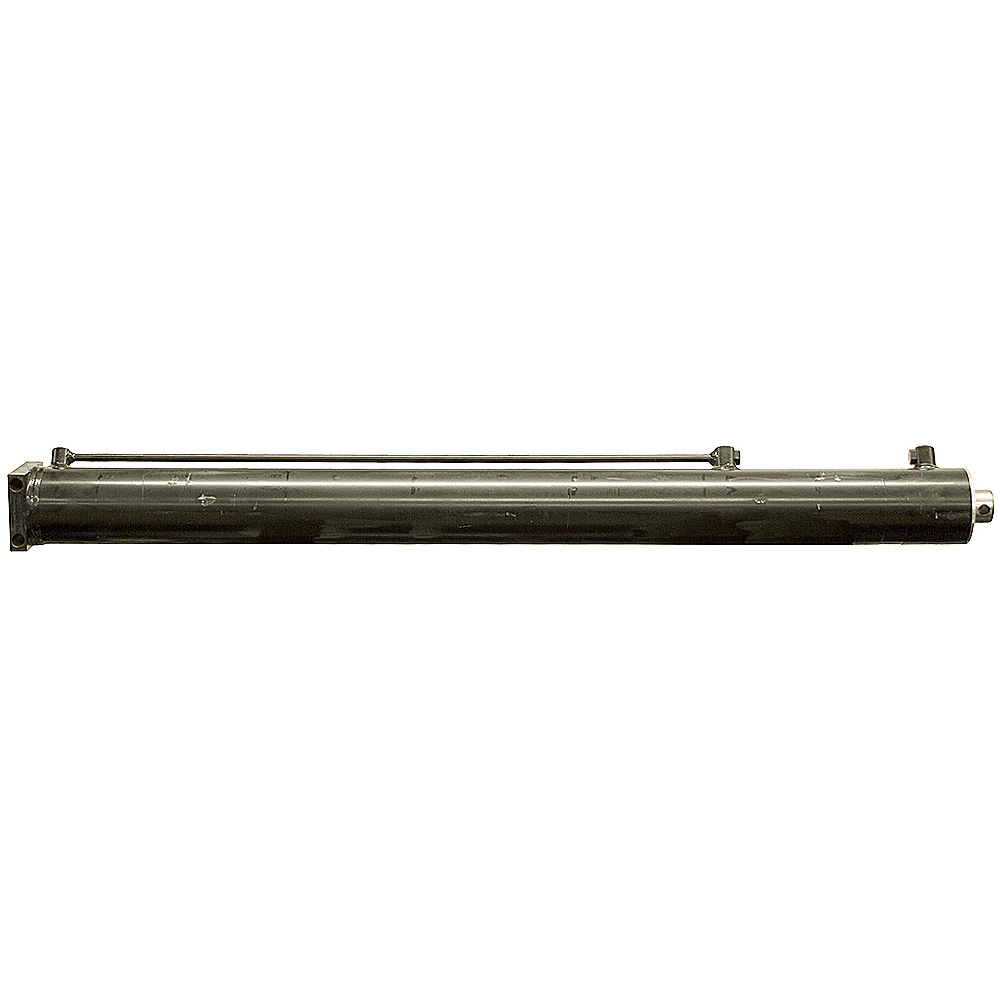

4x50x2 Prince DA Hydraulic Cylinder BB-0424

4" x 50" x 2" DA HYDRAULIC CYLINDER
New, Prince Mfg model# BB-0424 welded cylinder with thread-in gland cap. Ports offset 60° from pin holes, transfer tube to extend port.

SPECIFICATIONS
Double Acting Bore x Stroke 4" x 50" Barrel Thickness 1/4" Pressure 3000 PSI max. Rod Dia. 2"	Ports SAE 8 Retracted Length 56-1/2" Shpg. 116 lbs.

END MOUNTINGS
Rod End Thru-Hole Width 2" Pin Center to Rod End 5/8" Pin Hole 5/8"	Base End Mounting Block Block Dimensions 4-1/2" x 4-3/4" Mounting Holes Two 3/4" Holes w/ 3-1/4" Center to Center Distance Pin Centers to Base End 1/2" Groove 3-1/4" x 2-1/2" Rounded Groove in End w/ 3-7/16" Radius
