Description
DESCRIPTION

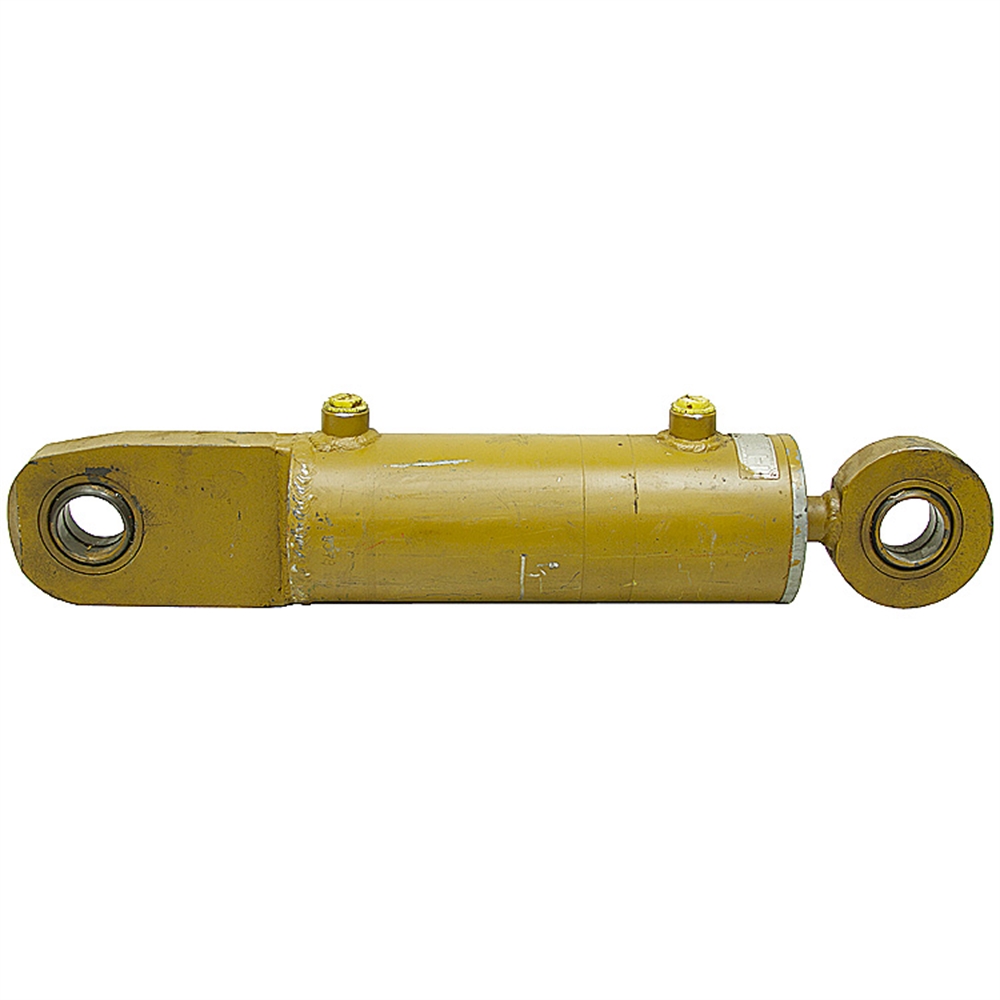

4" X 7-1/8" X 1-1/4" DA HYD CYL
New IOWA INDUSTRIAL model M-62998-019 double acting hydraulic cylinder. Thread in gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 4" x 7-1/8"
  • Pressure 2500 PSI
  • Rod Dia. 1-1/4"
  • Ports SAE 10
  • Retracted Length 21-5/8"
  • Shpg. 50 lbs.
END MOUNTINGS

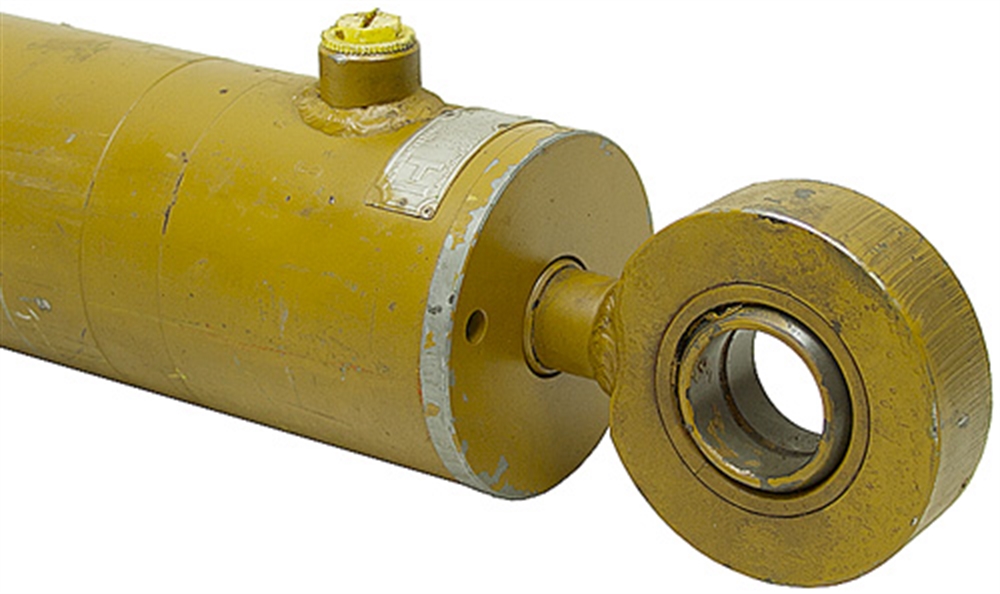

  • Rod End Swivel Eye
  • Ball Outside Width 1-1/2"
  • Ball O.D. 2-1/2"
  • Pin-center-to-end 2-1/4"
  • Pin Hole 1-3/4"

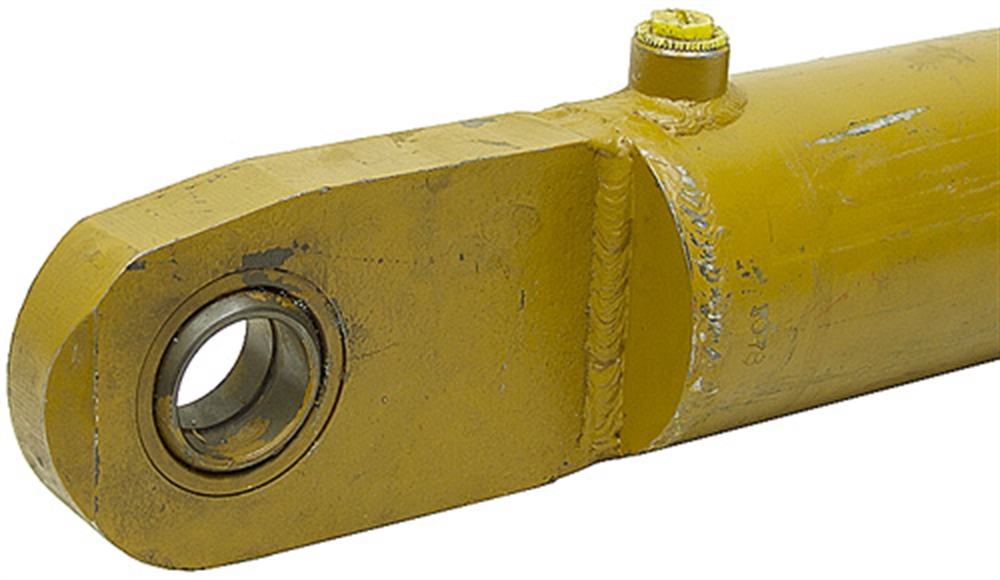

  • Base End Tang w/Swivel Eye
  • Length 7-5/8"
  • Width 1-7/16"
  • Height 4-1/2"
  • Ball Outside width1-1/2"
  • Ball O.D. 2-1/2"
  • Pin-center-to-end 2-1/4"
  • Pin Hole 1-3/4"
