5.12(130mm) x 32(813mm) x 3.15(80mm) DA Hydraulic Cylinder

Item Number: 9-20421

Price: $449.95
TOP
Back to top

5.12(130mm) x 32(813mm) x 3.15(80mm) DA Hydraulic Cylinder

  • 5.12(130mm) x 32(813mm) x 3.15(80mm) DA Hydraulic Cylinder
  • 5.12(130mm) x 32(813mm) x 3.15(80mm) DA Hydraulic Cylinder - Alternate 1
  • 5.12(130mm) x 32(813mm) x 3.15(80mm) DA Hydraulic Cylinder - Alternate 2

5.12(130mm) x 32(813mm) x 3.15(80mm) DA Hydraulic Cylinder

item number: 9-20421 PRICE: $449.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 9-20421
5.12(130mm) x 32(813mm) x 3.15(80mm) DA Hydraulic Cylinder
Item Number: 9-20421
Price: $449.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION

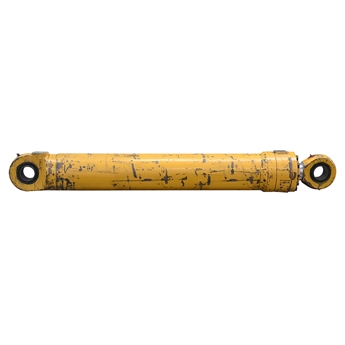

5.12"(130mm) x 32"(813mm) x 3.15"(80mm) DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 9140253.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.12"(130mm) x 32"(813mm)
  • Barrel Thickness 0.738"
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI
  • Rod Dia. 3.15"(80mm)
  • Ports 4 bolt 3/4" code 62 flange size 12
  • Retracted Length 52.5"
  • Gland Face to Rod Pin Center 4"
  • Shpg. 408 lbs.
END MOUNTINGS
  • Rod End Swivel Eye
  • Width 2.77"
  • Pin-Center-To-Swivel Eye-End 2.97"
  • Swivel Eye Width 2.875"
  • Pin Hole 2.41"(61mm)
  • Rod End Swivel Eye
  • Width 2.71"
  • Pin-Center-To-Swivel Eye-End 3.31"
  • Swivel Eye Width 2.875"
  • Pin Hole 2.41"(61mm)
