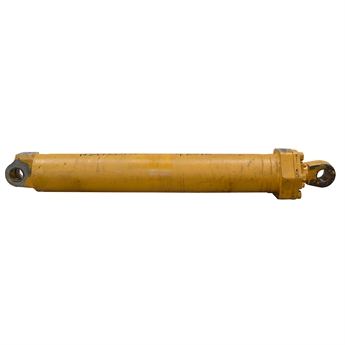

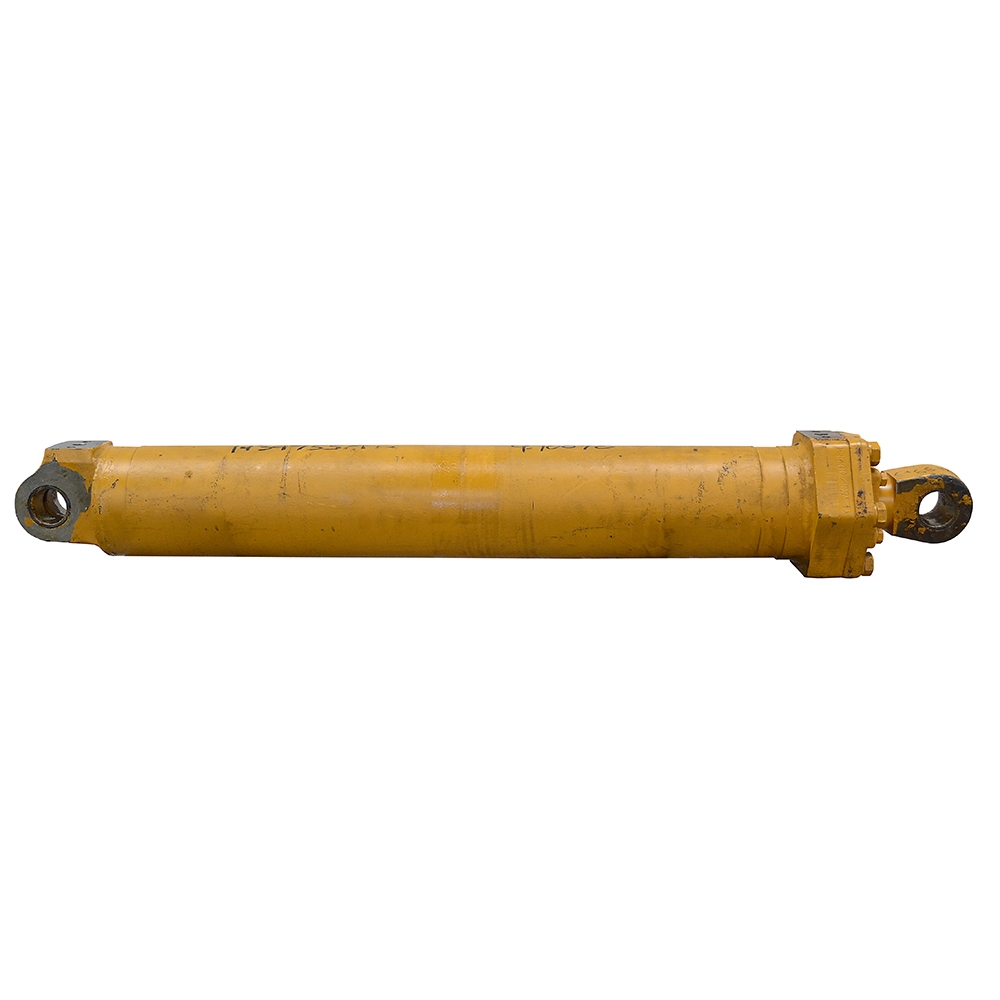

5.5x33.375x3 Double Acting Hydraulic Cylinder 1439755M92

Item Number: 9-10070

Price: $299.95
TOP
Back to top

5.5x33.375x3 Double Acting Hydraulic Cylinder 1439755M92

  • 5.5x33.375x3 Double Acting Hydraulic Cylinder 1439755M92
  • 5.5x33.375x3 Double Acting Hydraulic Cylinder 1439755M92 - Alternate 1
  • 5.5x33.375x3 Double Acting Hydraulic Cylinder 1439755M92 - Alternate 2

5.5x33.375x3 Double Acting Hydraulic Cylinder 1439755M92

item number: 9-10070 PRICE: $299.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 9-10070
5.5x33.375x3 Double Acting Hydraulic Cylinder 1439755M92
Item Number: 9-10070
Price: $299.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION
5.5" x 33.375" x 3" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 1439755M92

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5" x 33.375"
  • Barrel Thickness 0.383"
  • Gland Retainer Bolt on gland
  • Pressure 3000 PSI max.
  • Rod Dia. 3"
  • Ports Two bolt flange, bolt holes are M12 x 1.75 on 2.35" centers and 1.25" deep. Port holes are 0.756
  • Retracted Length 48.5"
  • Gland Face to Rod Pin Center 3.562"
  • Shpg. 286 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 2.99"
  • Pin-Center-To-Tang-End 1.97"
  • Pin Hole 2"
  • Base End Tang
  • Thickness, Max 3.78"
  • Pin-Center-To-Tang-End 1.97"
  • Pin Hole 2"
