Description
DESCRIPTION

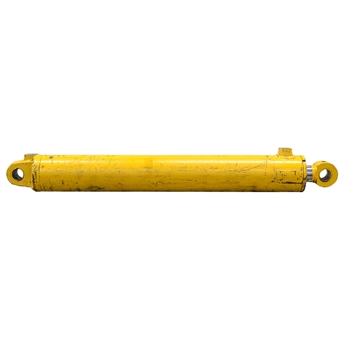

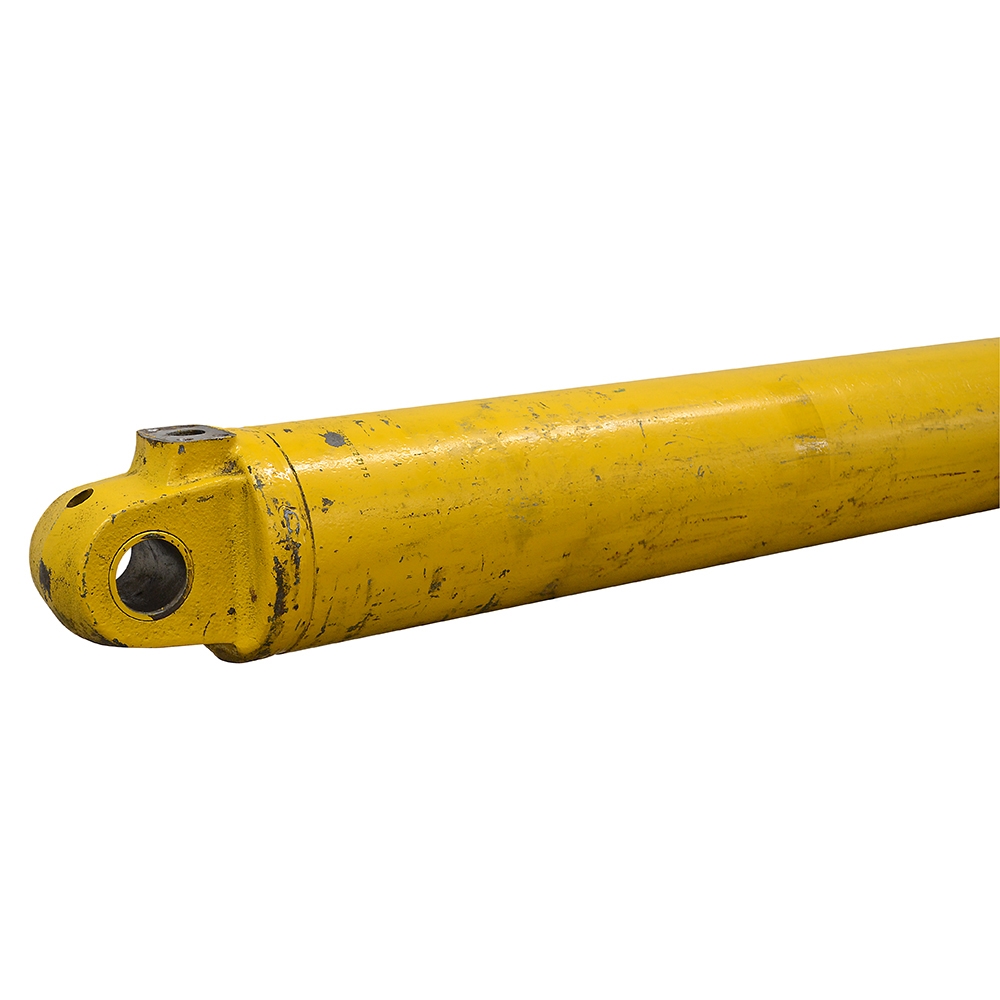

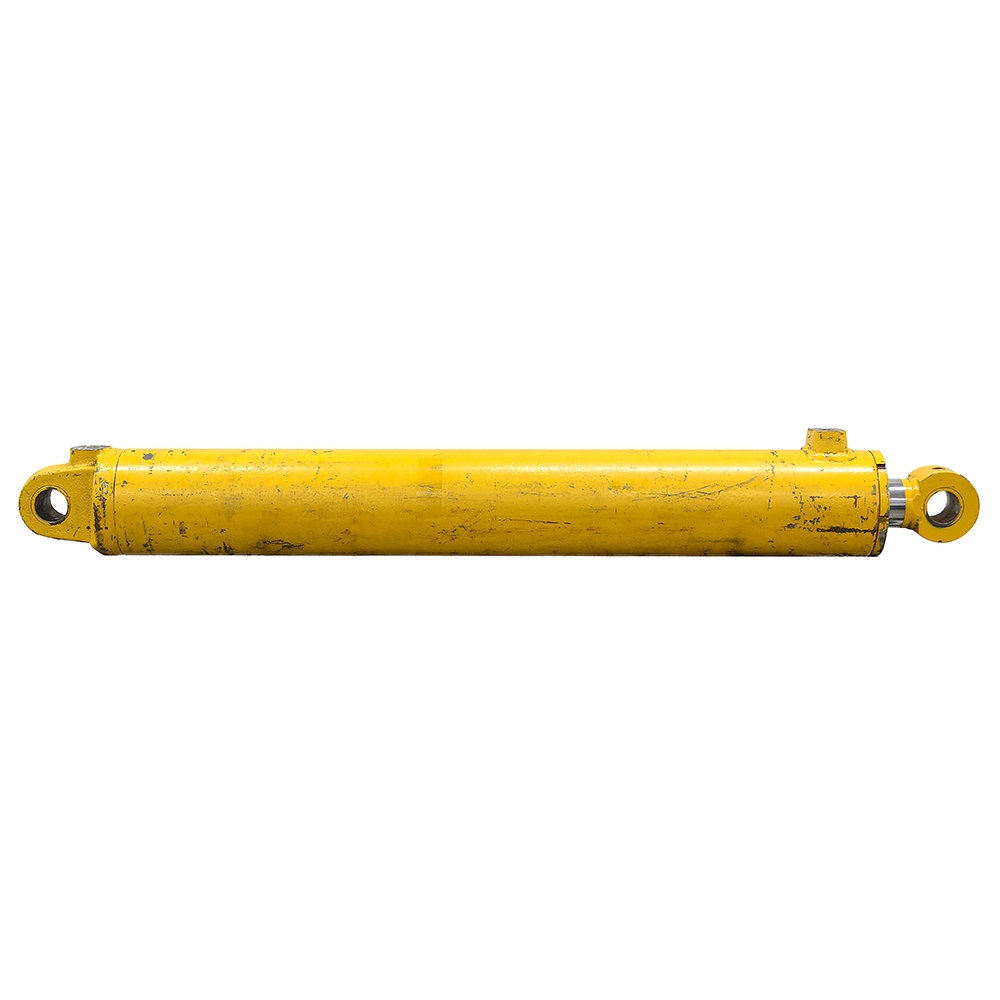

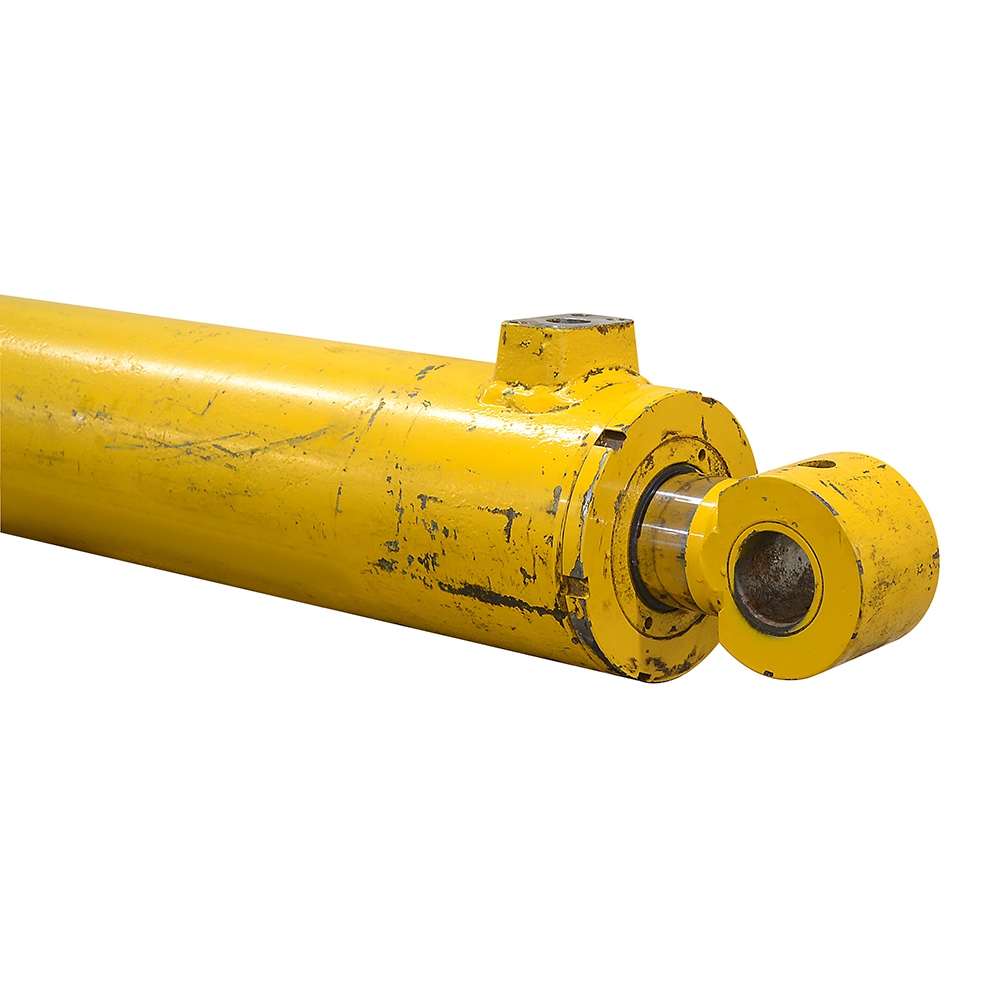

5.5" x 39.5" x 3" DA HYDRAULIC CYLINDER
Unused old inventory. Double acting hydraulic cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5.5" x 39.5"
  • Barrel Thickness 0.506"
  • Gland Retainer Threaded in gland
  • Pressure 3000 PSI max.
  • Rod Dia. 3"
  • Ports 4 bolt 1" code 61 flange size 16
  • Retracted Length 53.5"
  • Shpg. 320 lbs.
END MOUNTINGS
  • Rod End Tang
  • Thickness, Max 3"
  • Pin-Center-To-Tang-End 2.17"
  • Pin Hole 2"
  • Base End Tang
  • Thickness, Max 3.79"
  • Pin-Center-To-Tang-End 2.04"
  • Pin Hole 2"
