5x17.125x3 DA Hydraulic Cylinder

Item Number: 9-10286

Price: $429.95
TOP
Back to top

5x17.125x3 DA Hydraulic Cylinder

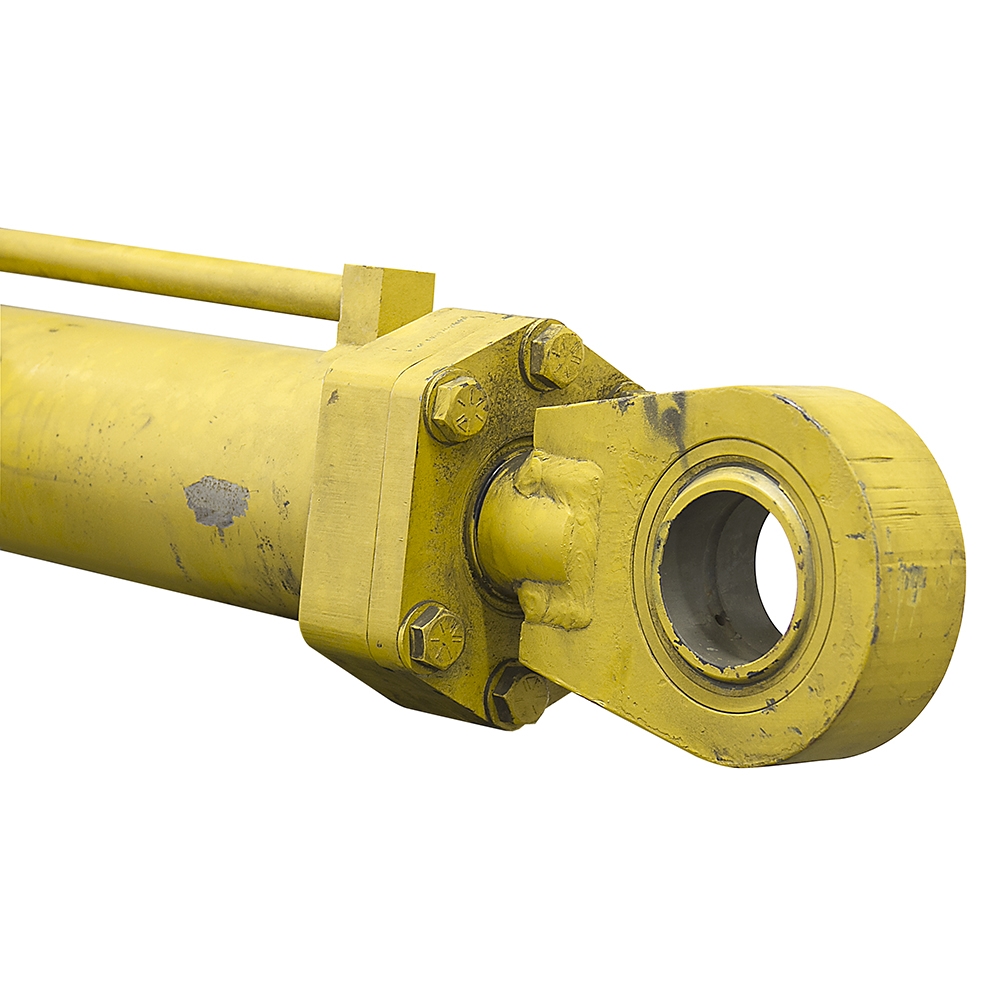

  • 5x17.125x3 DA Hydraulic Cylinder

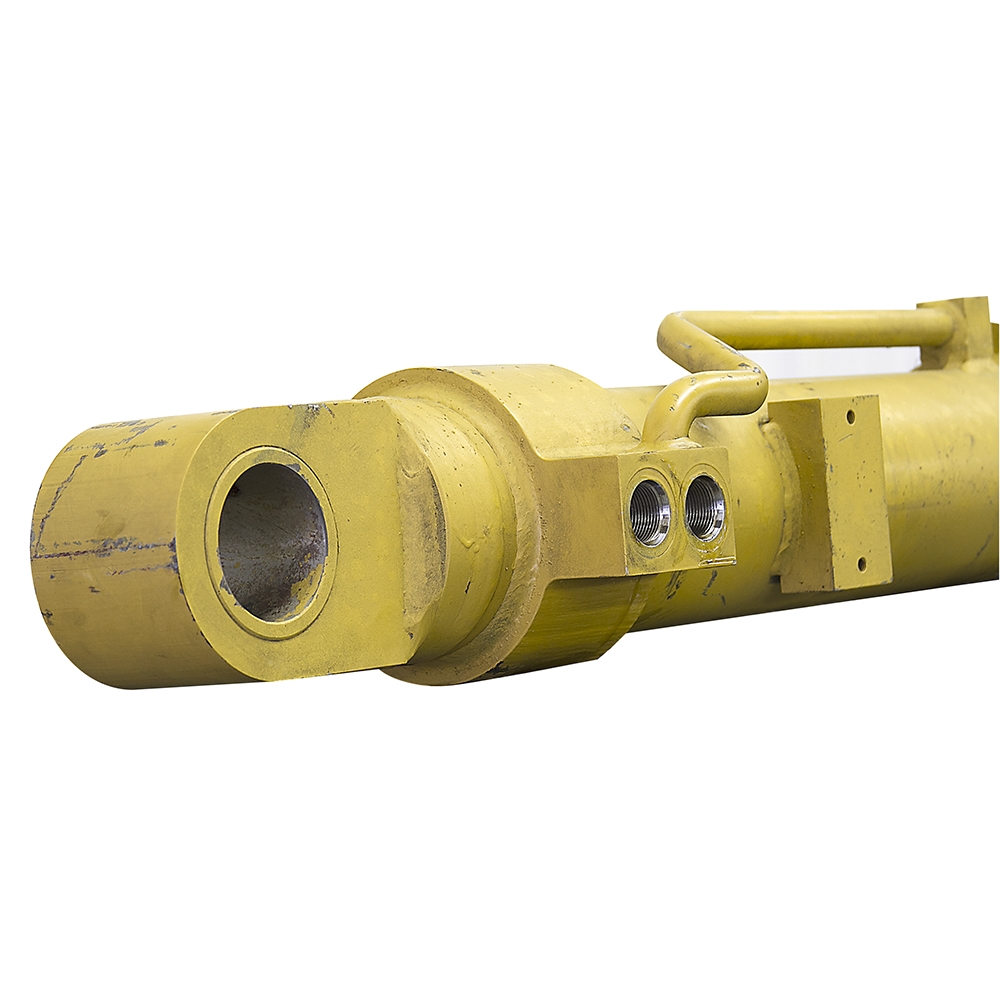

  • 5x17.125x3 DA Hydraulic Cylinder - Alternate 1

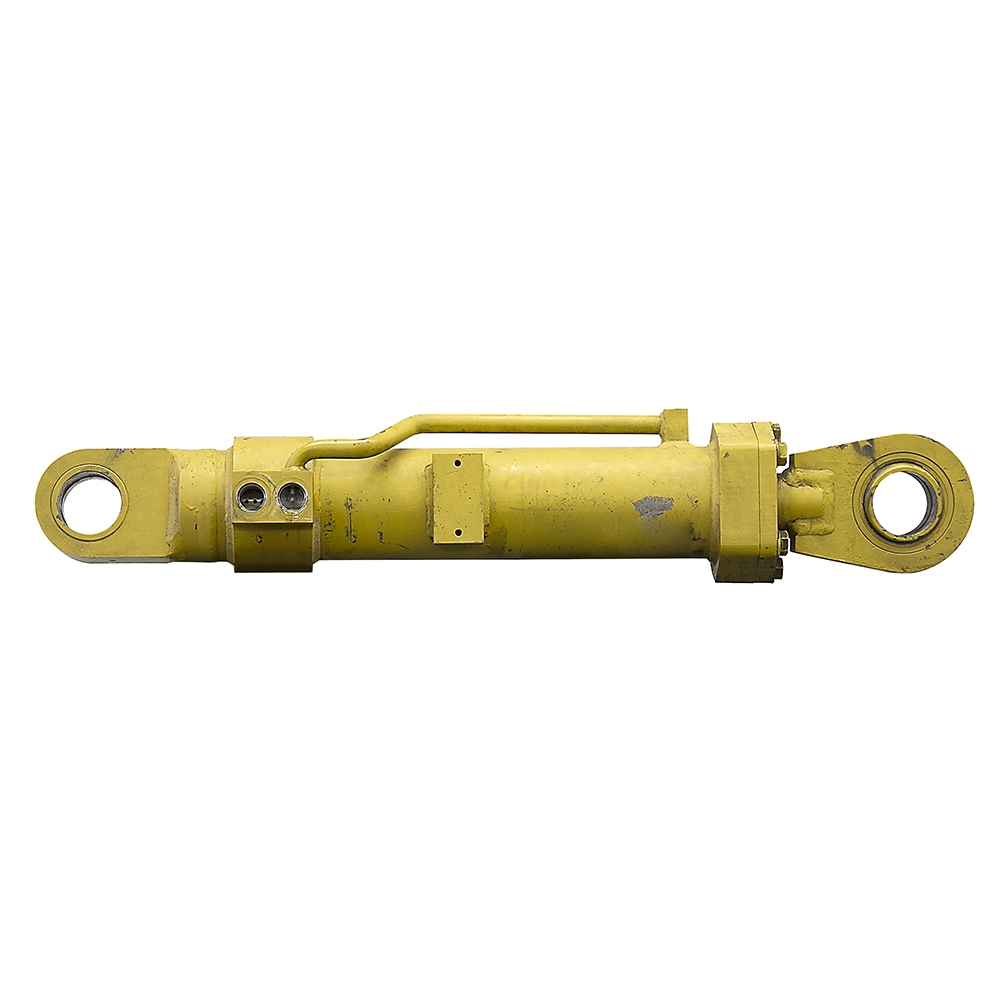

  • 5x17.125x3 DA Hydraulic Cylinder - Alternate 2

5x17.125x3 DA Hydraulic Cylinder

item number: 9-10286 PRICE: $429.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 9-10286
5x17.125x3 DA Hydraulic Cylinder
Item Number: 9-10286
Price: $429.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION
5" x 17.125" x 3" DA HYDRAULIC CYLINDER
New. Welded cylinder with external bolt-on gland cap.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 5" x 17-1/8"
  • Barrel Thickness 3/8"
  • Pressure 3000 PSI max.
  • Rod Dia. 3"
  • Ports SAE 16
  • Retracted Length 41"
  • Shpg. 310 lbs.
END MOUNTINGS
  • Rod End Tang w/ Swivel Eye
  • Max Thickness 2-7/8"
  • Pin Center to Tang End 3-9/16"
  • Pin Hole 3-1/4"
  • Base End Tang
  • Max Thickness 4-1/8"
  • Pin Center to Tang End 2-3/4"
  • Pin Hole 80mm (3.153")
