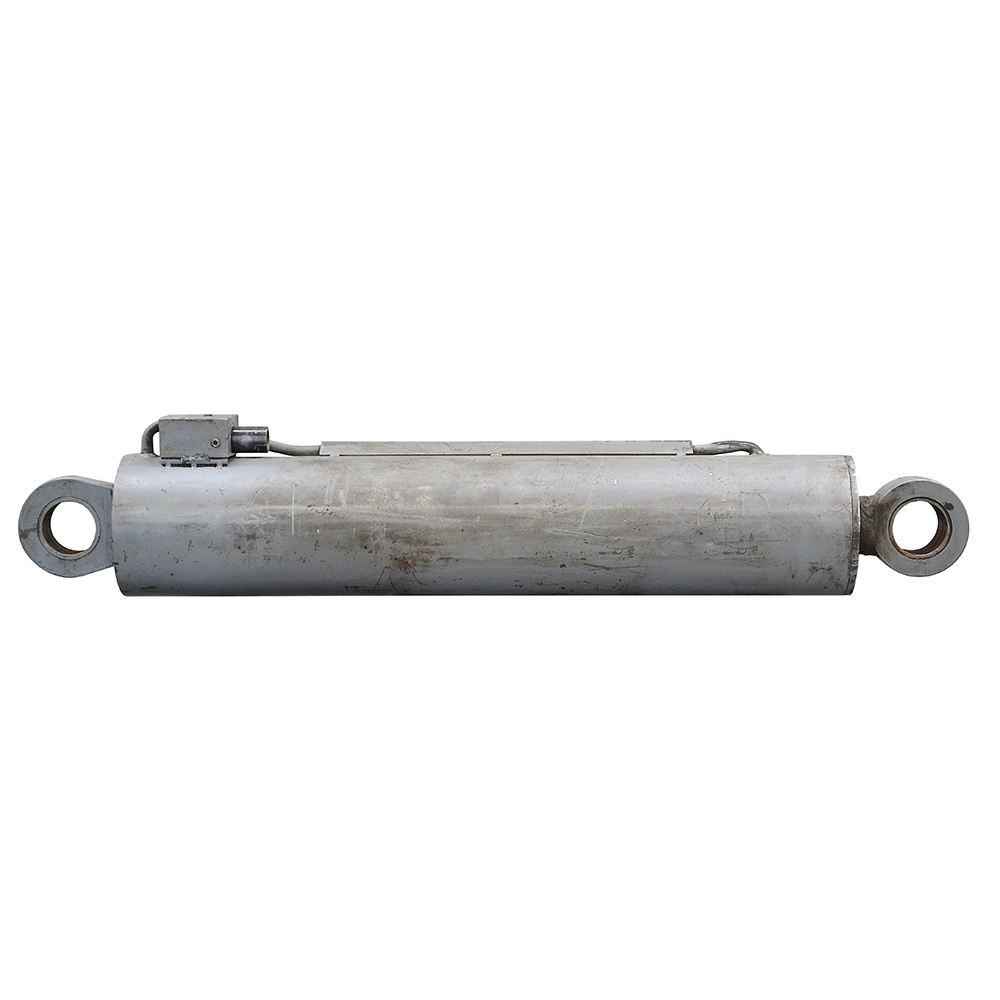

6.5" x 27.5" x 3" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Cylinder has Ambac Fluid WEG 2-42-0-25-3000-.125 cartridge valve in manifold in the base end. Cylinder 1/2" NPT work ports are in 3.75" x 3.5" x 2" manifold block. Numbers on cylinder 30326415.
SPECIFICATIONS
|
- Double Acting
- Bore x Stroke 6.5" x 27.5"
- Barrel Thickness 0.354"
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 3"
|
- Ports 1/2" NPT
- Retracted Length 43.5"
- Gland Face to Rod Pin Center 3.375"
- Shpg. 253 lbs.
|
END MOUNTINGS | |

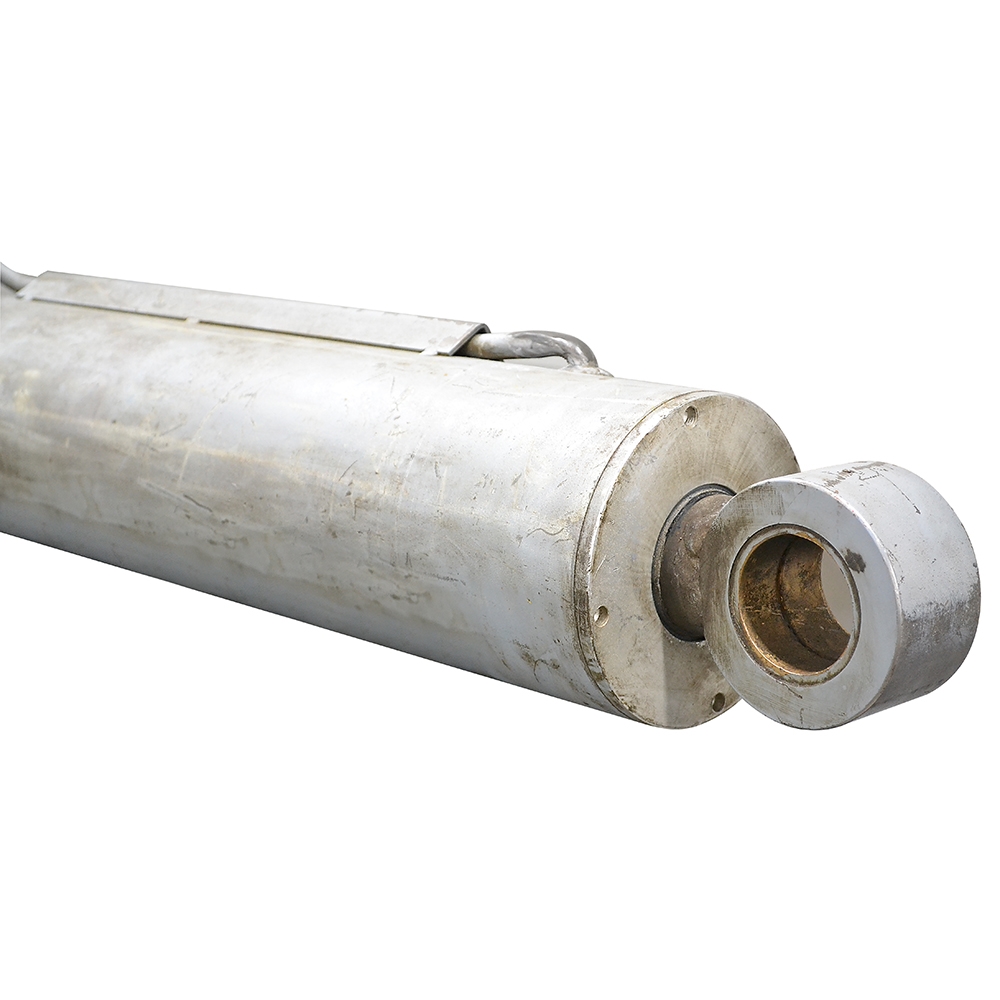

- Rod End Cross-Tube
- O.D. 5"
- Width 2.75"
- Pin Hole 2-3/4"
|
- Base End Tang
- Thickness, Max 2"
- Pin-Center-To-Tang-End 2.62"
- Pin Hole 2-3/4"
|
