Description

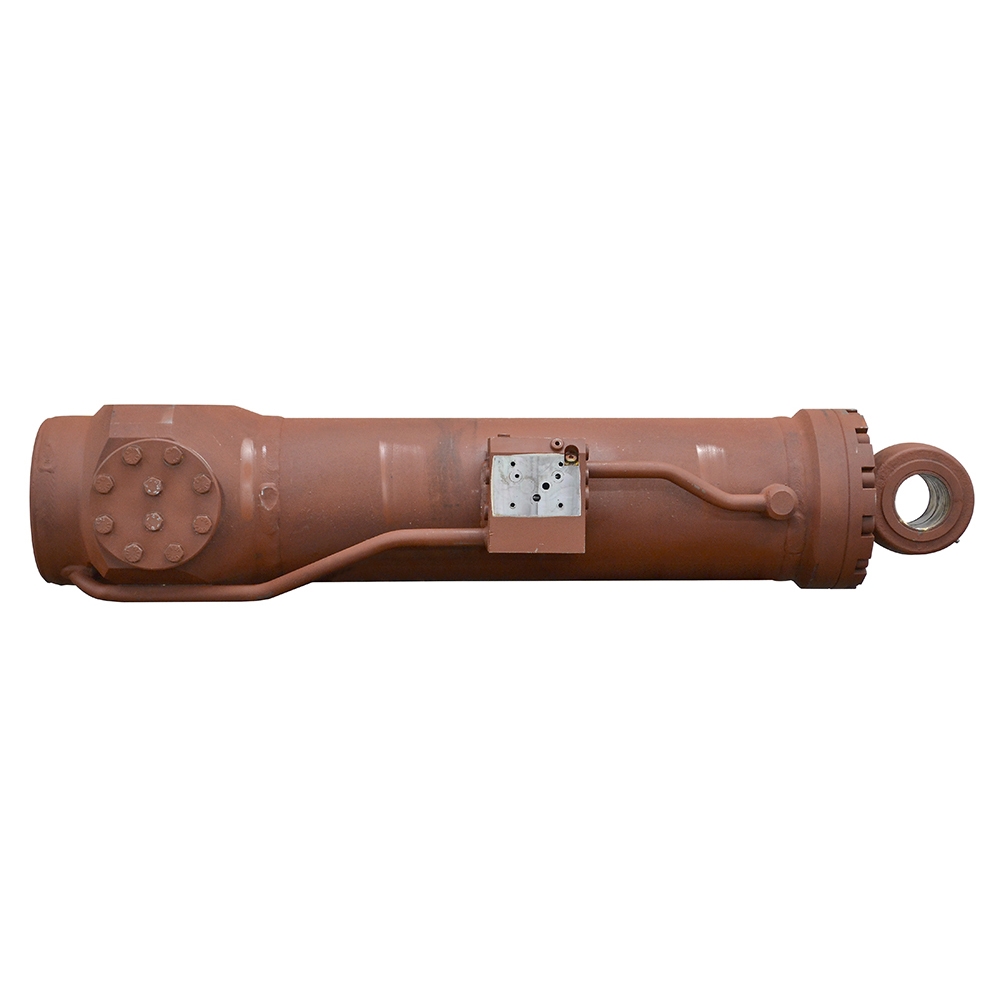

6.679"(170mm) x 29.921"(760mm) x 3.151"(80mm) HYD CYL
Unused old inventory. Welded, double acting hydraulic cylinder, model# 03320204R. Cylinder has two cartridge valves in manifold, one marked 1-Y05 1820, the other unknown. Bolt-on Trunnion plate has two, M12-1.75 threaded holes on 1.625" centers in center of plate used for disassembly.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6.679"(170mm) x 29.921"(760mm)
  • Gland Retainer Bolt-on
  • Pressure 2500 PSI max.
  • Rod Dia. 3.151"(80mm)
  • Manifold Ports Two, 0.344" dia., One, 0.244" dia., and One 0.18" dia. port holes
  • Manifold mount Four, M6-1.0 x 0.713" on 2.125" x 1.813" centers
  • Retracted Length 35.5"
  • Gland Face to Rod Pin Center 2.875"
  • Shpg. 441 lbs.
END MOUNTINGS
  • Rod End Tang
  • Width 3.551"
  • Pin-Center-To-Tang-End 2.75"
  • Pin Hole 2.562"(65mm)
  • Rod End Bolt-on Trunnion
  • Pin Outside/Inside Width 10.118" / 9.056"
  • Pin-Center-To-Rod Pin Center 35.5"
  • Pin Center To Base End 6"
  • Pin Diamter 5.503"
  • Bolt-on Plates Eight, M12-1.75 x 0.849" bolt holes on 4.75" bolt circle
  • Bolt-on Plate Dia. 5.909"(150mm)
  • Bolt-on Plate Inside Dia. 3.940"(100mm)
