6x14.5x2.5 DA Hydraulic Cylinder

Item Number: 9-20507

Price: $299.95
TOP
Back to top

6x14.5x2.5 DA Hydraulic Cylinder

6x14.5x2.5 DA Hydraulic Cylinder

item number: 9-20507 PRICE: $299.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 9-20507
6x14.5x2.5 DA Hydraulic Cylinder
Item Number: 9-20507
Price: $299.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description

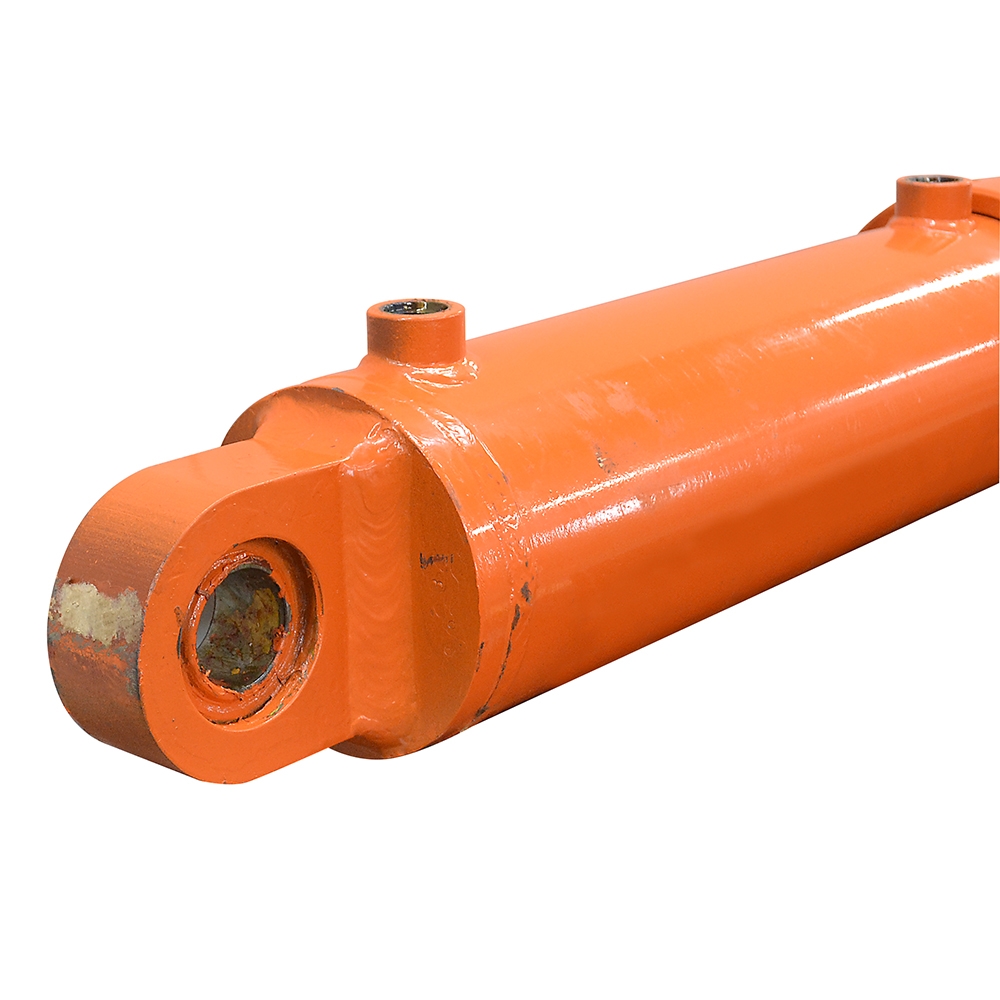

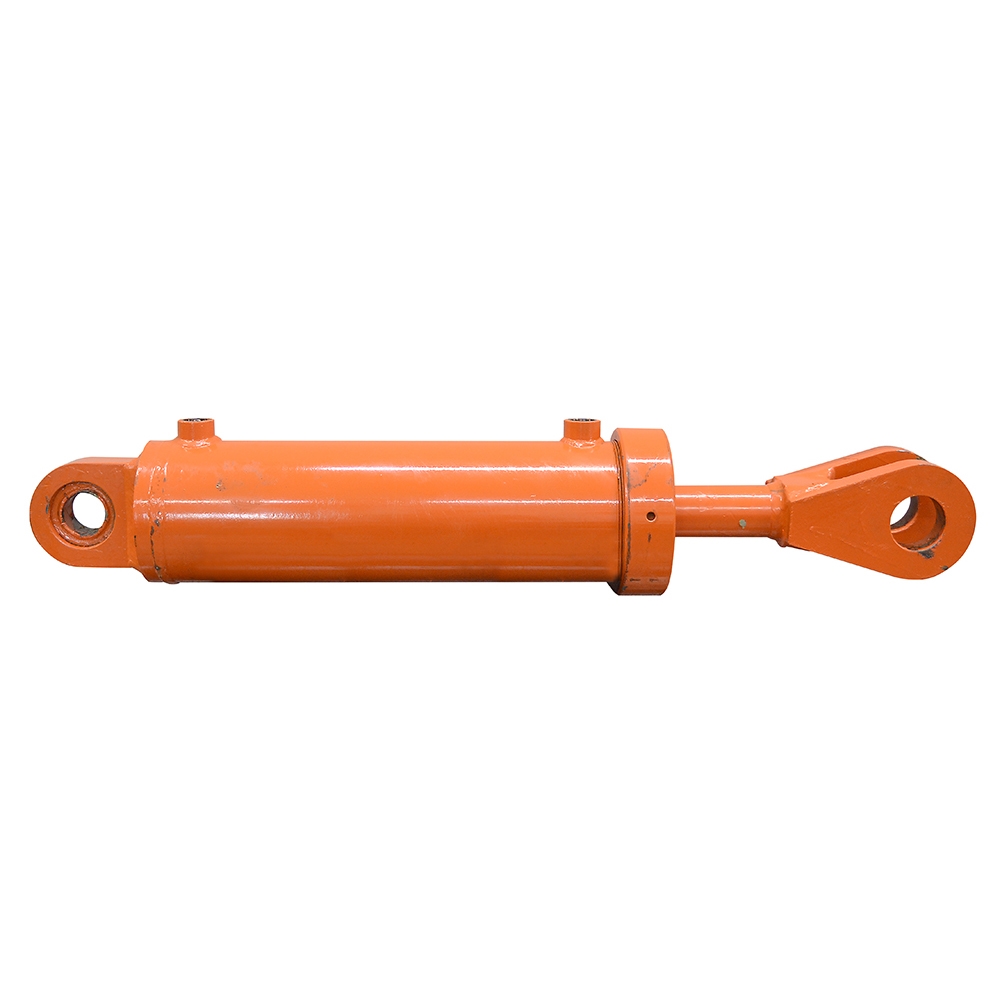

6" x 14.5" x 2.5" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 9421751330.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6" x 14.5"
  • Barrel Thickness 0.375"
  • Gland Retainer Externally threaded
  • Pressure 3000 PSI
  • Rod Dia. 2.5"
  • Ports SAE 12
  • Retracted Length 39"
  • Gland Face to Rod Pin Center 11.5"
  • Shpg. 230 lbs.
END MOUNTINGS

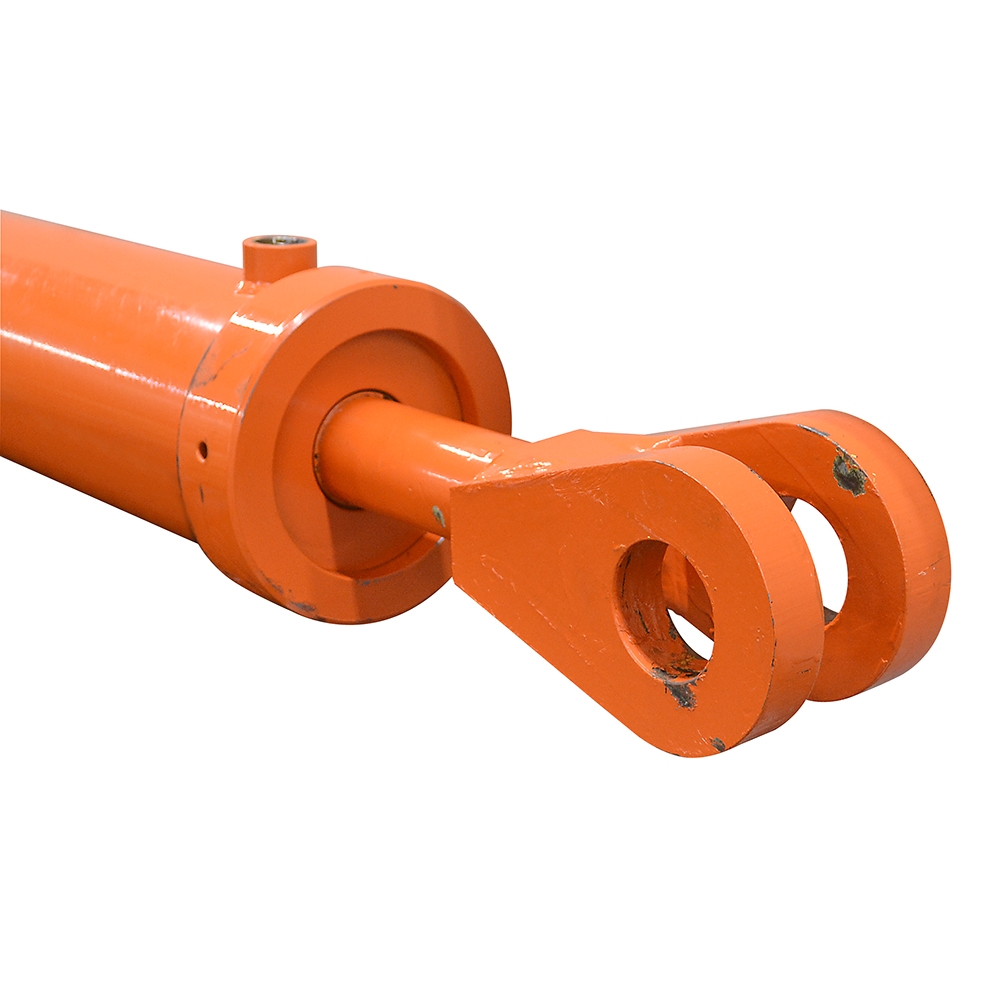

  • Rod End Clevis
  • Outside Width 4.79"
  • Inside Width 2.2"
  • Throat Depth 6.25"
  • Pin Hole 2-5/8"
  • Base End Swivel Eye
  • Width 2.28"
  • Pin-Center-To-Swivel Eye-End 2.49"
  • Swivel Eye Width 1.75"
  • Pin Hole 2"
