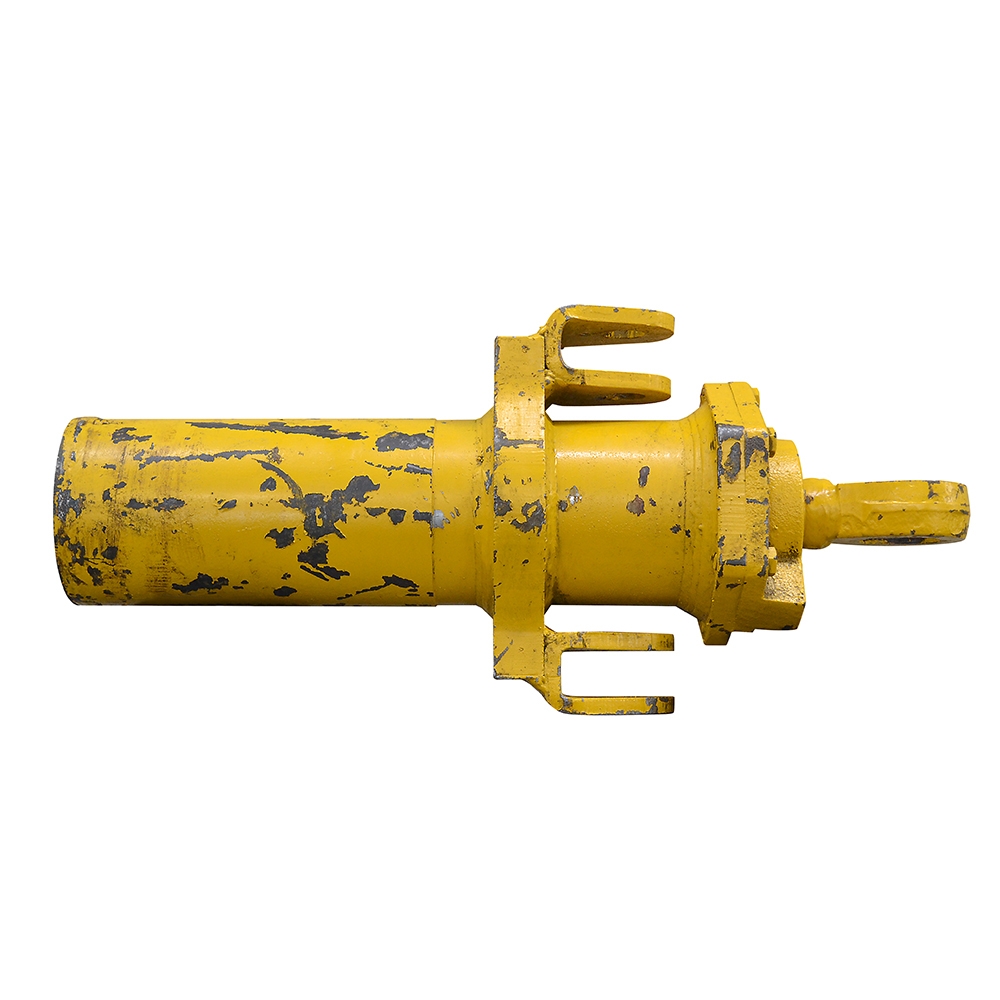

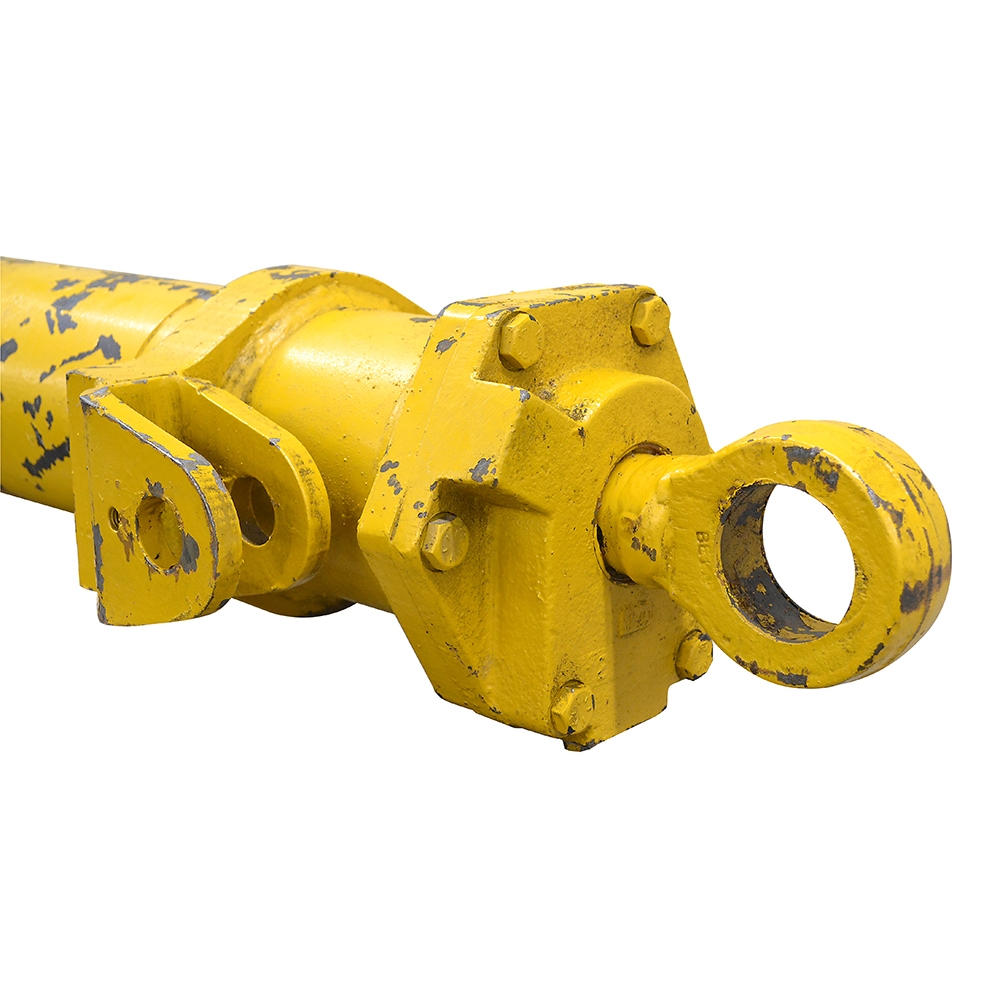

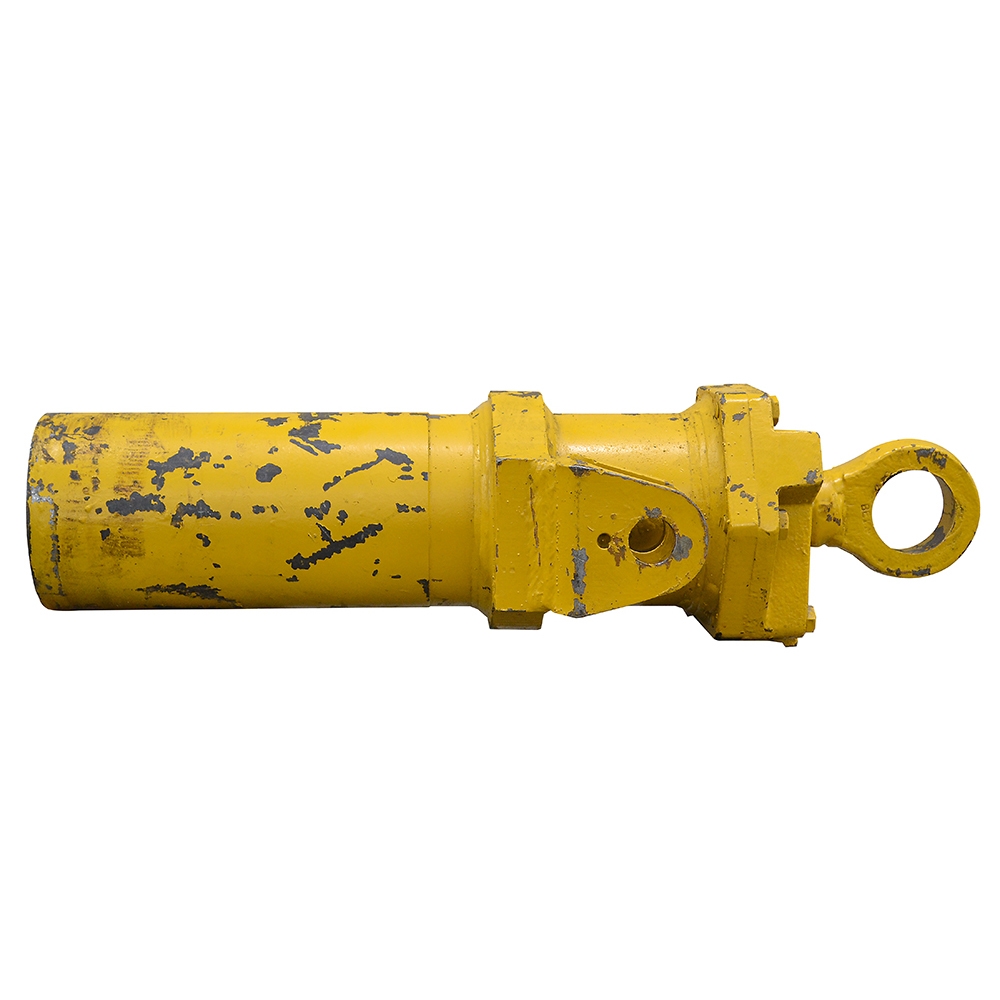

6" x 17.25" x 2.5" DA HYD CYL Unused old inventory. Welded, double acting hydraulic cylinder, stamped FA9407, with double clevis trunnion mount. Rod end pin hole has retention lip and snap ring groove intended for bearing insert.
SPECIFICATIONS |
- Double Acting
- Bore x Stroke 6" x 17.25"
- Gland Retainer Bolt-On
- Pressure 2500 PSI max.
- Rod Dia. 2.5"
|
- Extend Port SAE 12
- Retract Port CODE 61 FLANGE SIZE 16
- Retracted Length 10"
- Gland Face to Rod Pin Center 4"
- Shpg. 251 lbs.
|
END MOUNTINGS |
|
- Rod End Tang
- Width 1.986"
- Pin-Center-To-Tang-End 2.544"
- Pin Hole 3.155"
|
- Base End Double Clevis Trunnion
- Outside Width 2.913"
- Inside Width 1.754"
- Throat Depth 4"
- Pin Hole 1.5"
- Clevis Center to Center 12"
|
