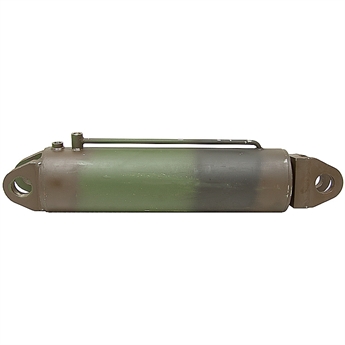

6x19x3 DA Hydraulic Cylinder

Item Number: 9-9399

Price: $419.95
TOP
Back to top

6x19x3 DA Hydraulic Cylinder

  • 6x19x3 DA Hydraulic Cylinder

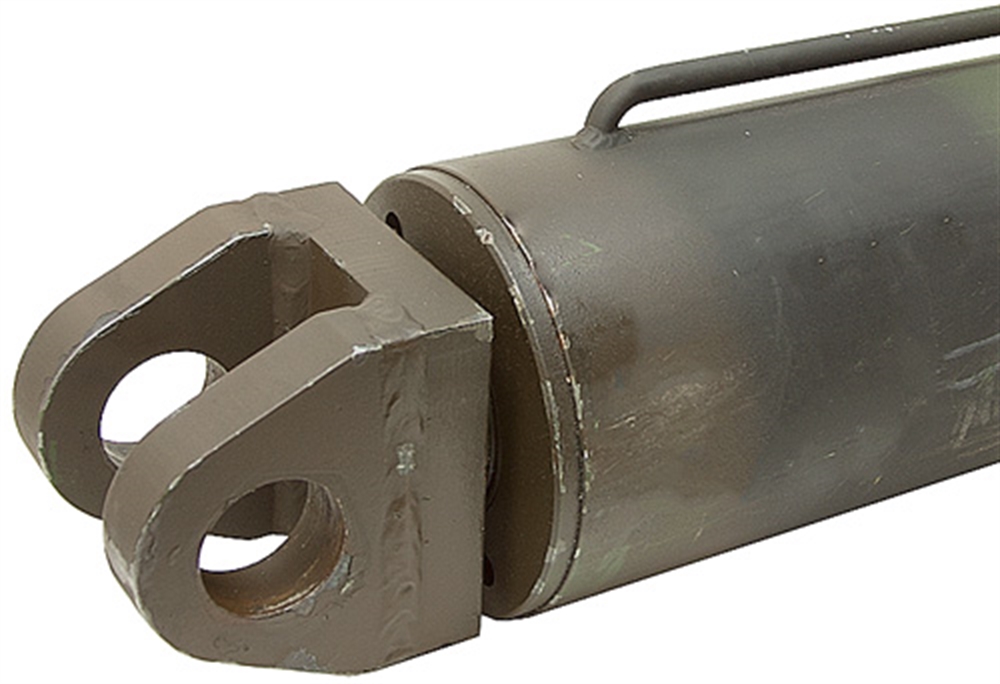

  • 6x19x3 DA Hydraulic Cylinder - Alternate 1

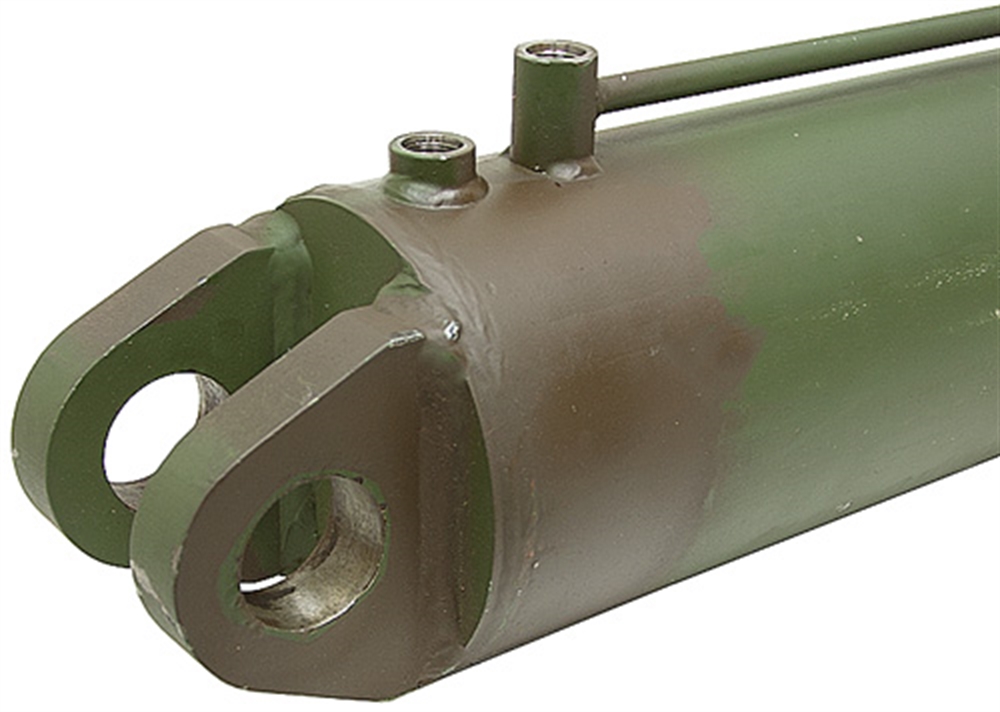

  • 6x19x3 DA Hydraulic Cylinder - Alternate 2

6x19x3 DA Hydraulic Cylinder

item number: 9-9399 PRICE: $419.95 Out of Stock - No Longer Available
Must ship via Truck Freight
Please contact us for a quote
Calculate Shipping for Item 9-9399
6x19x3 DA Hydraulic Cylinder
Item Number: 9-9399
Price: $419.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION
6" x 19" x 3" DA HYD CYL
New, welded hydraulic cylinder with thread-in gland retainer. Transfer tube, both ports at base end. 5/16" tubing thickness.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6" x 19"
  • Pressure 2500 PSI max.
  • Rod Dia. 3"
  • Ports SAE 8
  • Retracted Length 30"
  • Shpg. 202 lbs.
END MOUNTINGS
  • Rod End Clevis
  • Outside Width 4-11/16"
  • Inside Width 2-5/16"
  • Throat Depth 1-5/8"
  • Pin Hole 2"
  • Base End Clevis
  • Outside Width 4-11/16"
  • Inside Width 2-5/16"
  • Throat Depth 1-5/8"
  • Pin Hole 2"
