Description
DESCRIPTION

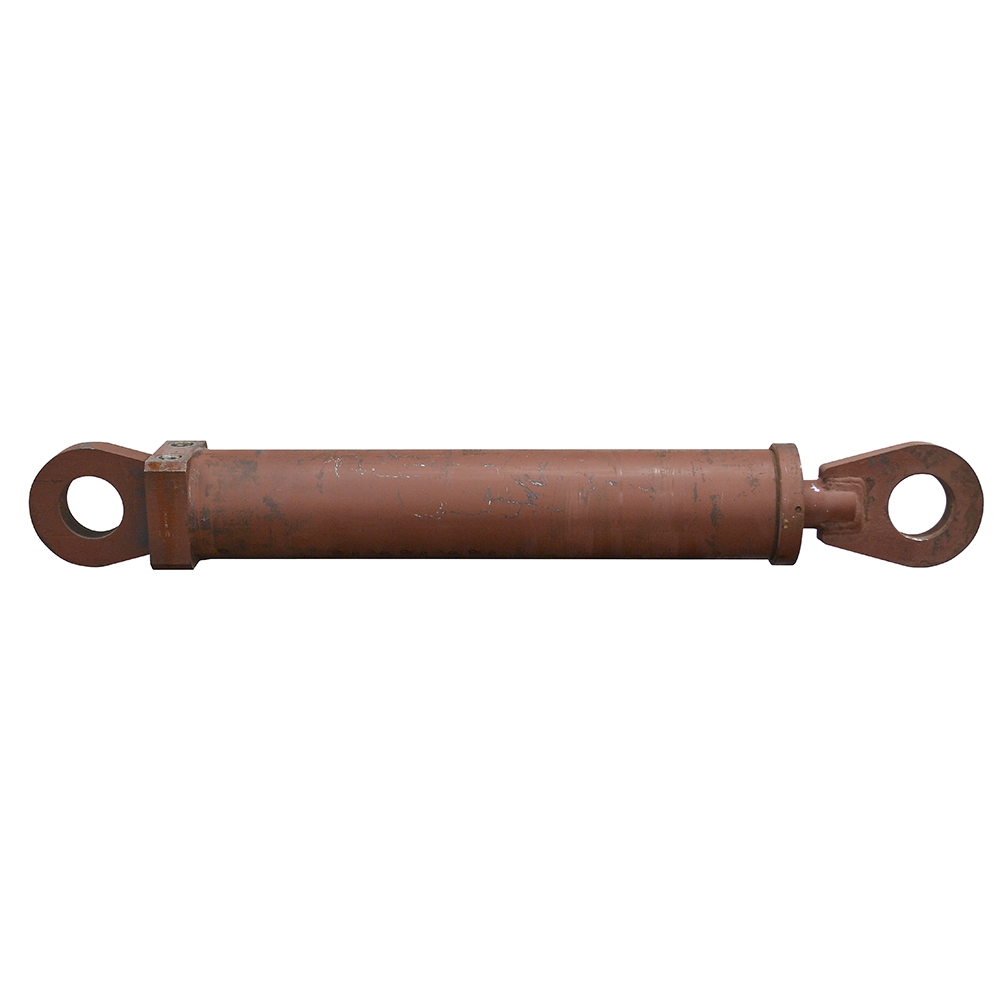

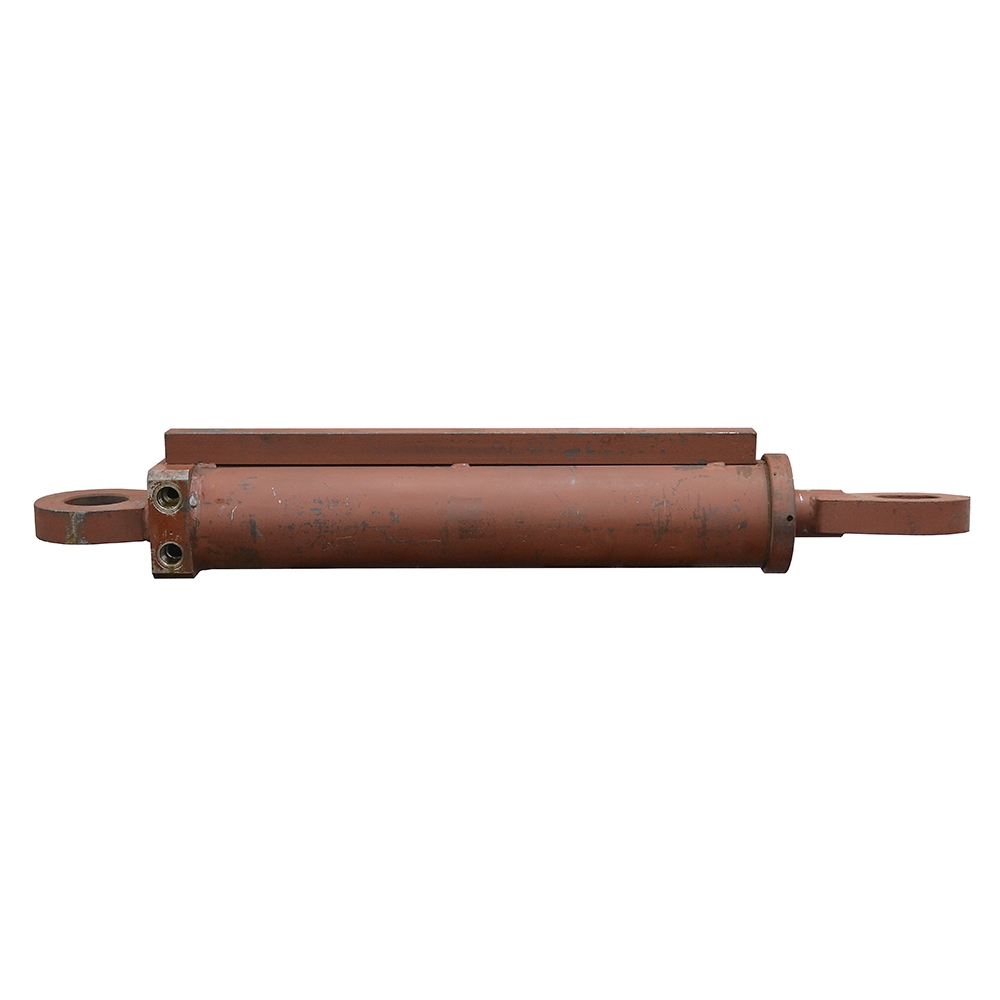

6" x 28.5" x 3" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 015-59984690.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 6" x 28.5"
  • Barrel Thickness 0.378"
  • Gland Retainer Externally threaded
  • Pressure 3000 PSI
  • Rod Dia. 3"
  • Ports SAE 16
  • Retracted Length 50.5"
  • Gland Face to Rod Pin Center 7.5"
  • Shpg. 317 lbs.
END MOUNTINGS

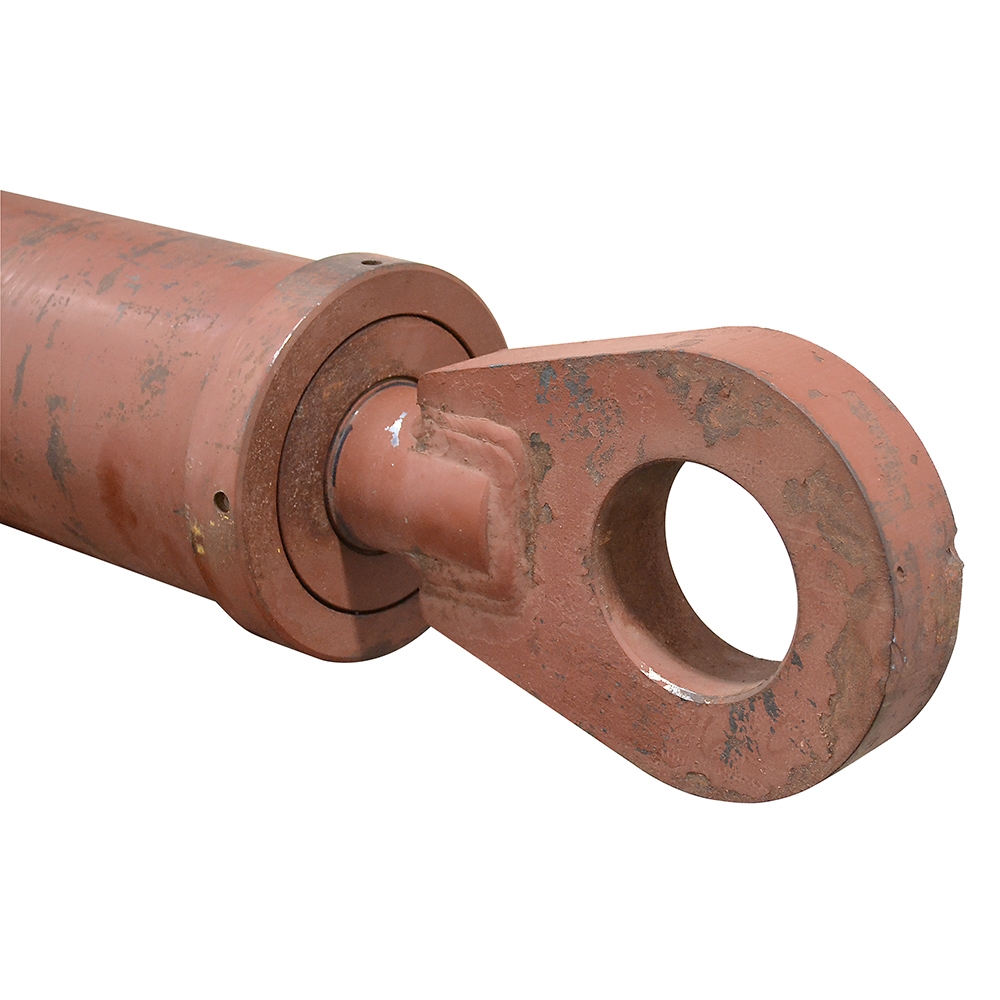

  • Rod End Tang
  • Width 2.07"
  • Pin-Center-To-Tang-End 3.81"
  • Pin Hole 3.93"(100mm)

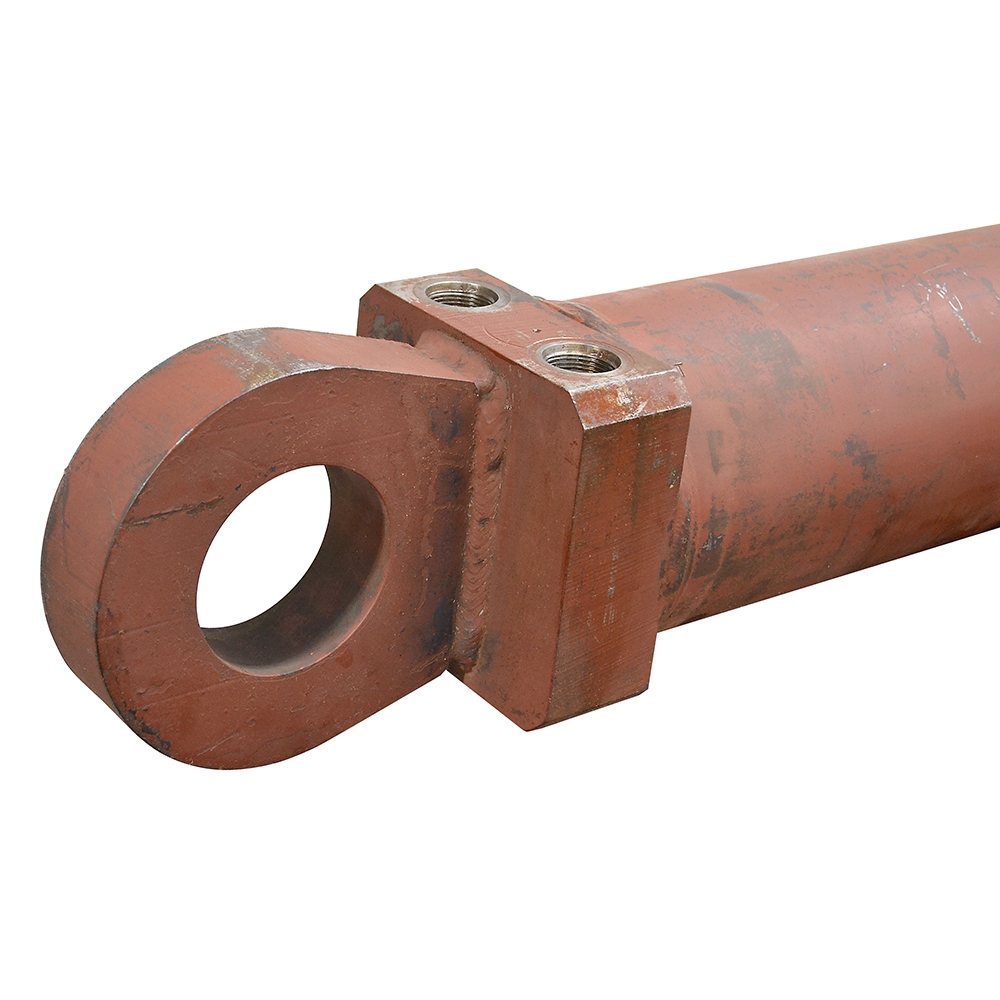

  • Base End Tang
  • Width 2.08"
  • Pin-Center-To-Tang-End 3.86"
  • Pin Hole 3.93"(100mm)
