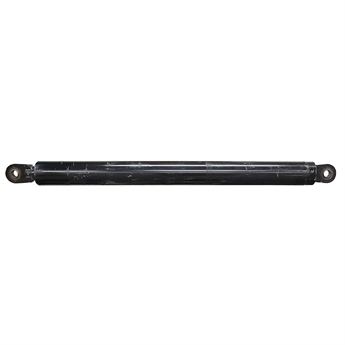

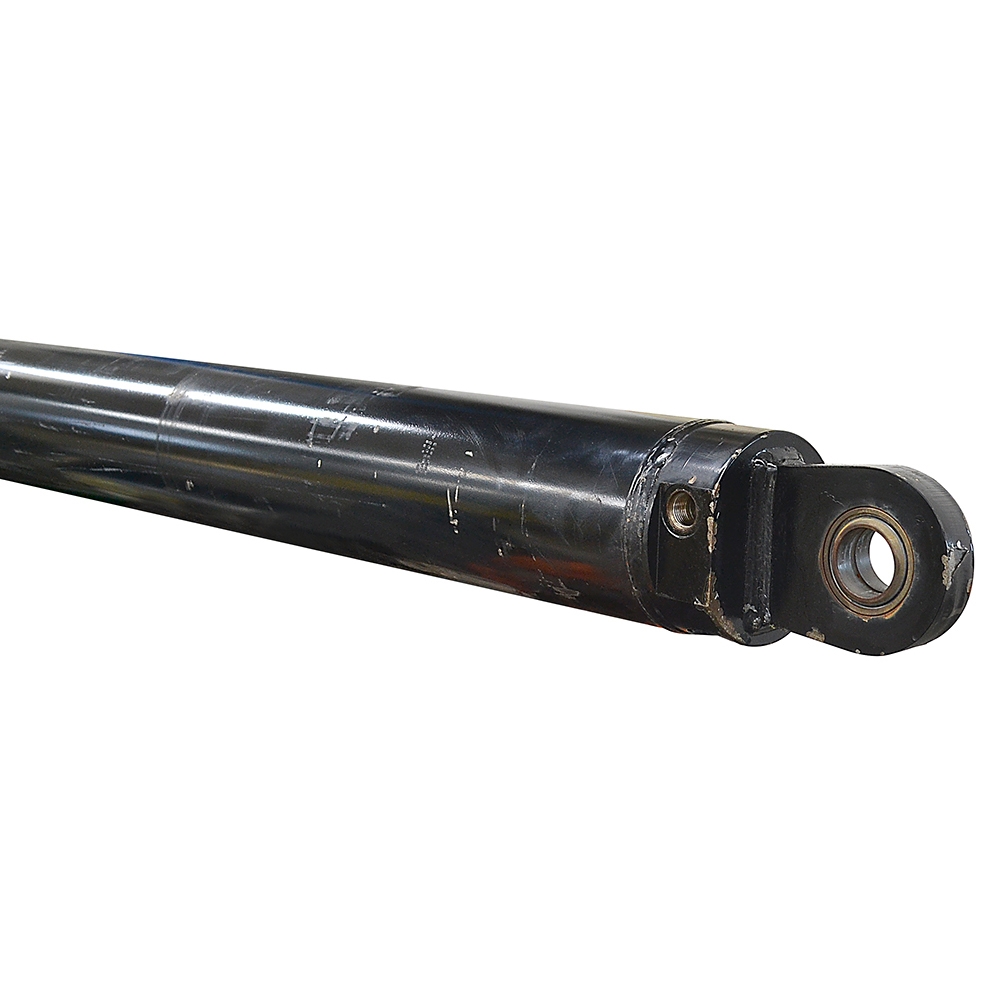

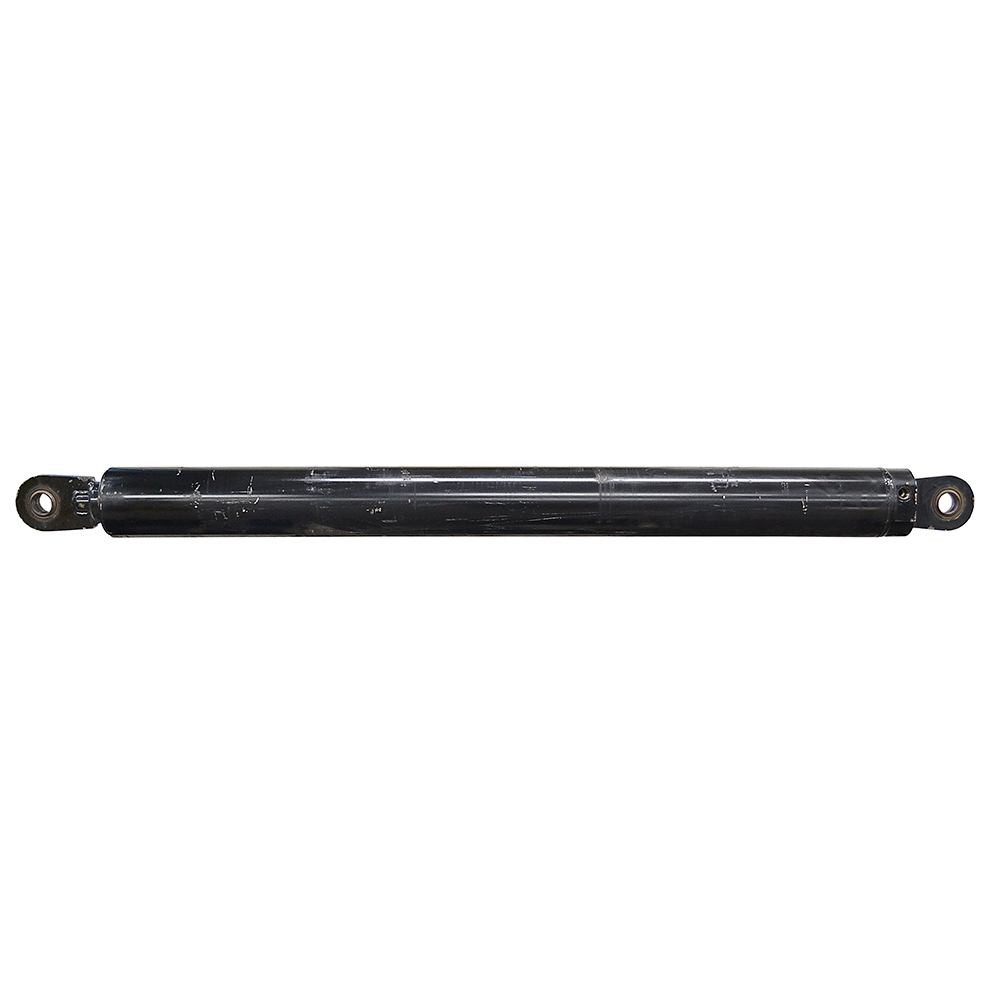

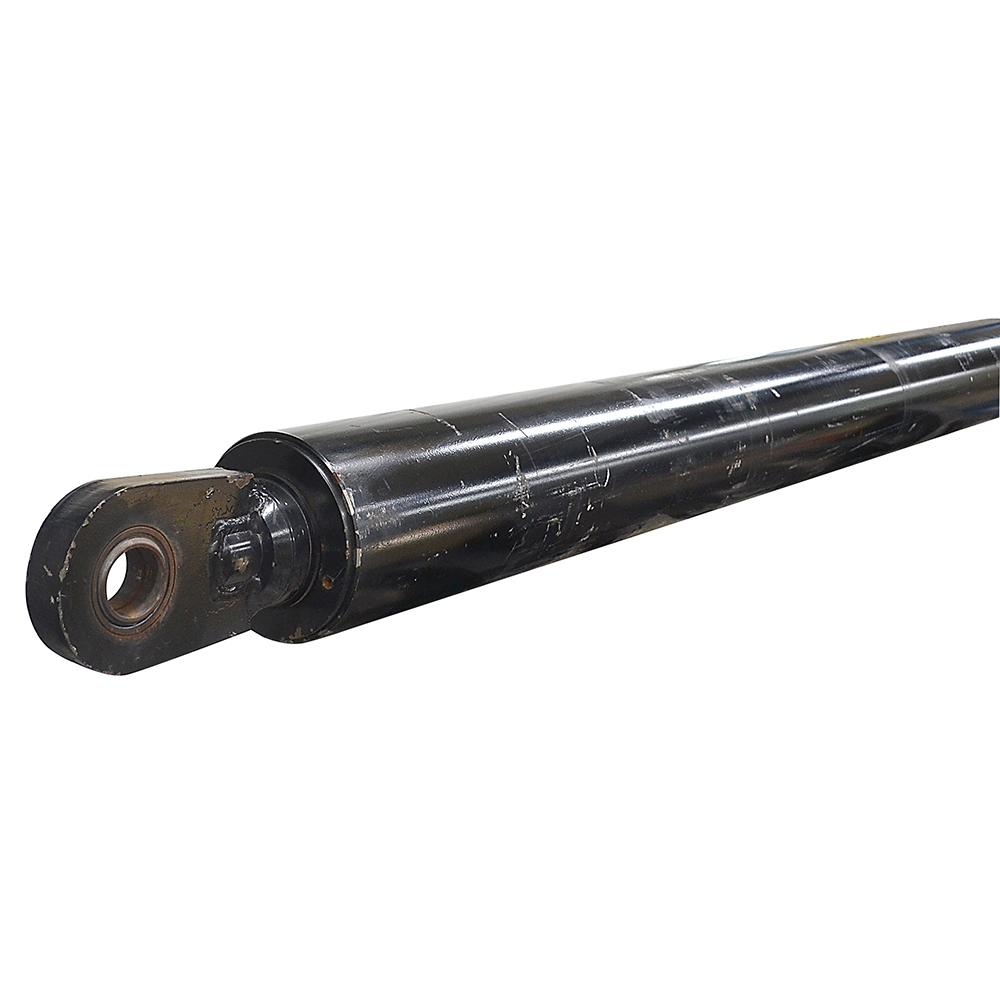

6" x 68" x 4" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Cylinder requires two cartridge valves, which are included but have unknown numbers. Numbers on cylinder RMT 499100NX0004 2716363D.
SPECIFICATIONS
|
- Double Acting
- Bore x Stroke 6" x 68"
- Barrel Thickness 0.444"
- Gland Retainer Threaded in gland
- Pressure 3000 PSI
- Rod Dia. 4"
|
- Ports SAE 12
- Retracted Length 88.75"
- Gland Face to Rod Pin Center 4"
- Shpg. 617 lbs.
|
END MOUNTINGS | |
- Rod End Swivel Eye
- Width 1.53"
- Pin-Center-To-Swivel Eye-End 2.71"
- Swivel Eye Width 1.75"
- Pin Hole 2"
|
- Base End Swivel Eye
- Width 1.53"
- Pin-Center-To-Swivel Eye-End 2.70"
- Swivel Eye Width 1.75"
- Pin Hole 2"
|
