Description

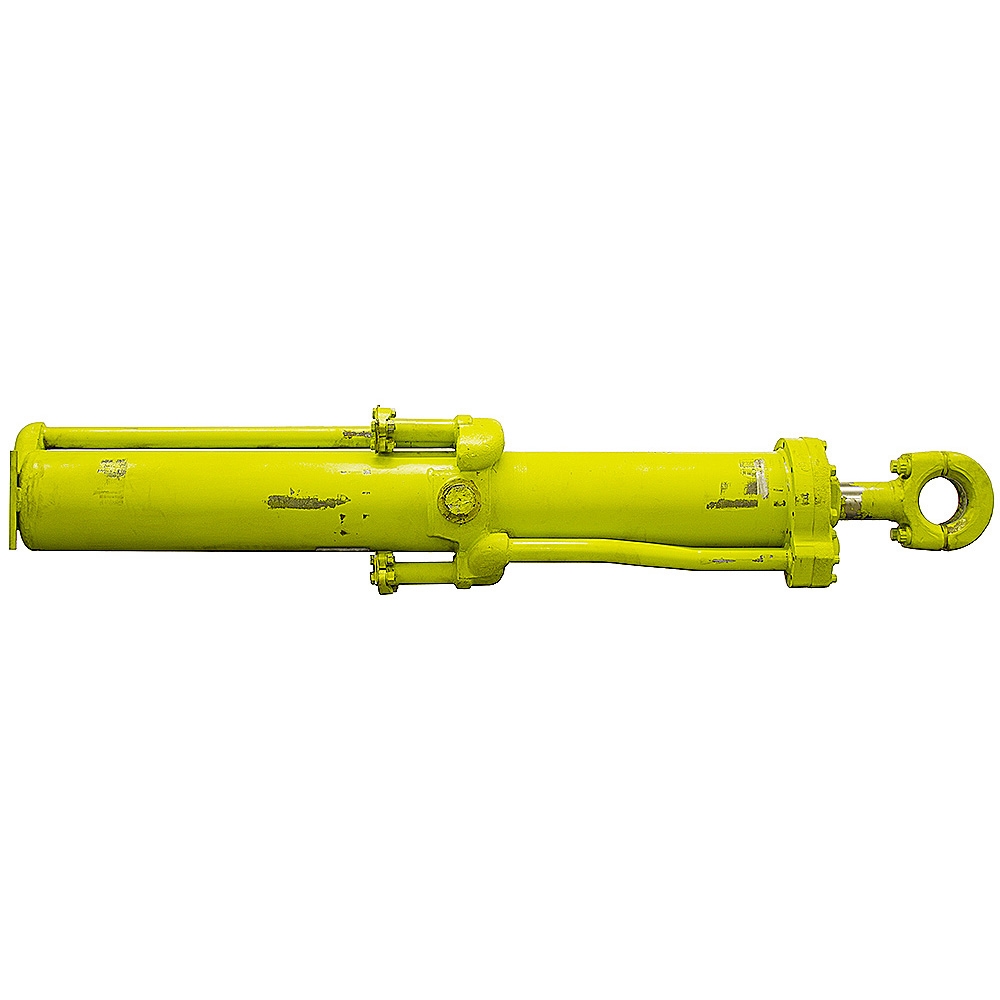

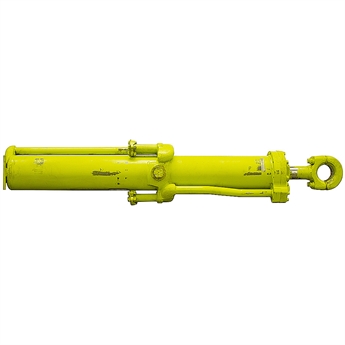

7" x 52.5" x 3" DA HYDRAULIC CYLINDER
New. Welded cylinder with bolt-on gland retainer. Rod end split tang has removable shims. Pin hole diameter can be changed from 3-1/2" to 3-3/4" and pin center to tang end distance ranges from 3-13/16" to 3-15/16". "9008132-B LH-73-1" stamped on cylinder.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 7" x 52-1/2"
  • Barrel Thickness 5/16"
  • Pressure 3000 PSI max.
  • Rod Dia. 3"
  • Ports 1-1/2" I.D. Tube w/ 1-1/2" Code 61 Split Flanges
  • Retracted Length 37"
  • Shpg. 490 lbs.
END MOUNTINGS
  • Rod End Split Tang w/ Removable Shims
  • Max Thickness 3-7/8"
  • Pin Center to Tang End 3-13/16" to 3-15/16"
  • Pin Hole 3-1/2" to 3-3/4"
  • Trunnion Male
  • Pin Outside Width 12-1/2"
  • Pin Inside Width 9"
  • Pin Center to Rod Pin Center 37"
  • Pin Center to Base End 34"
  • Pin Diameter 2-1/4"
