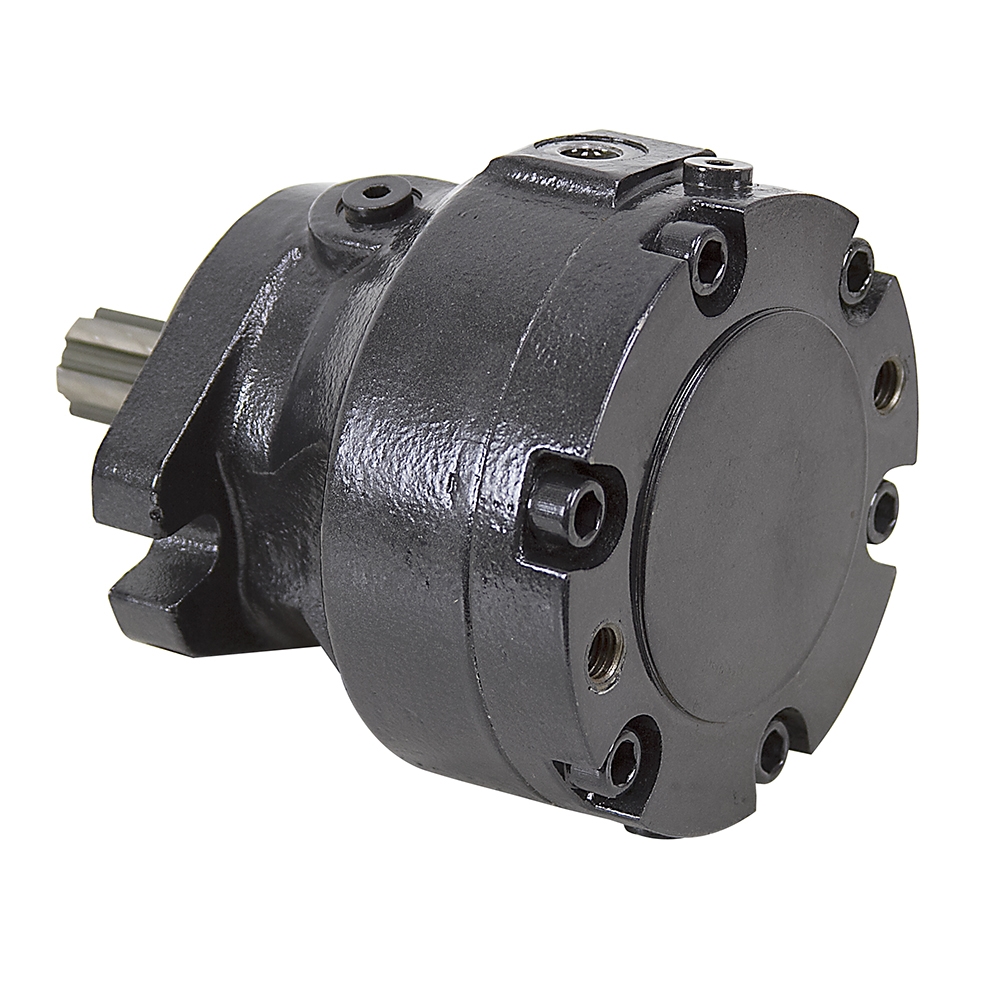

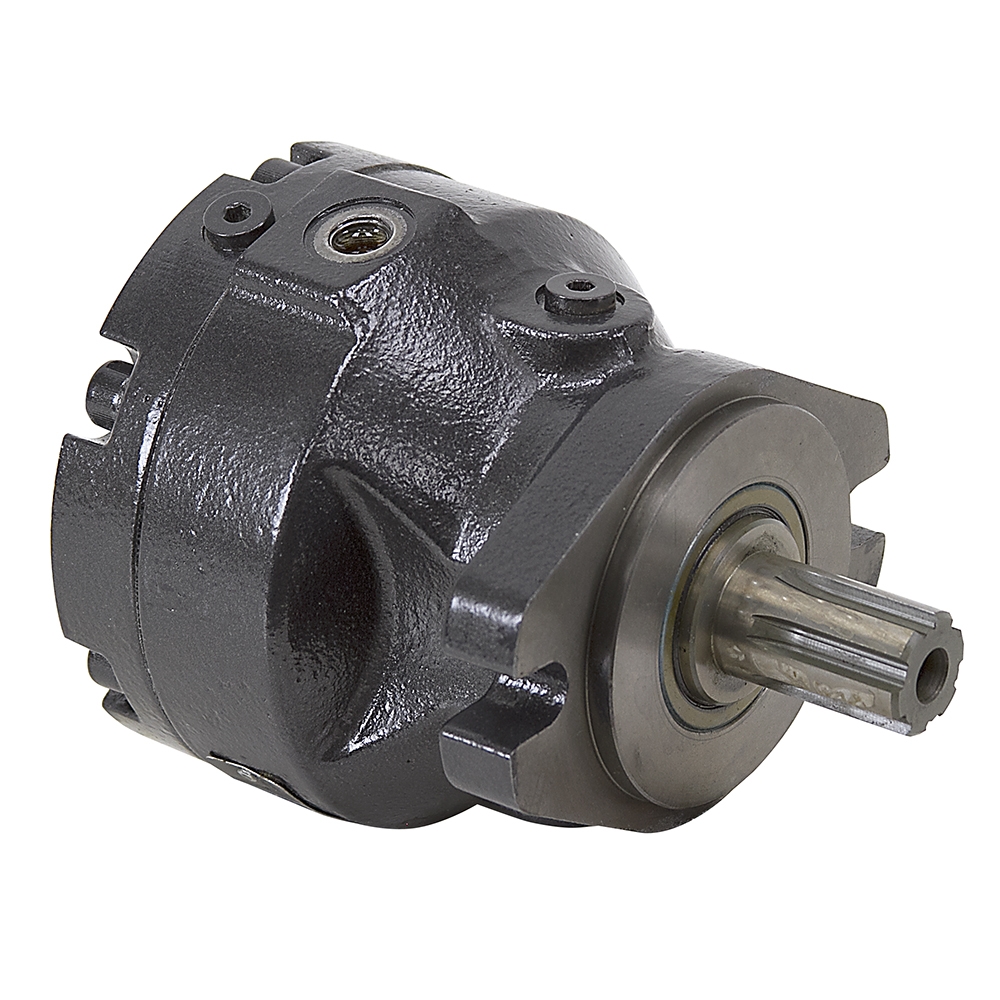

White SB Static Brake 930520A11ZZBAAAA

WHITE DRIVE PRODUCTS 930520A11ZZBAAAA HYDRAULIC BRAKE
New, WHITE DRIVE PRODUCTS model# 930520A11ZZBAAAA hydraulic brake. Unpainted mounting surface. Spring-applied, hydraulically-released static/parking brake. Ships with two short pilot (35mm long) M12 x 1.75 bolts and O-ring seal.

SPECIFICATIONS

• Holding Torque 4600 in-lbs.
• Full Release Pressure 520 PSI
• Release Pressure 1500 PSI max.
• Release Volume 0.51 cu. in.
• Speed 250 RPM max.
• Output Shaft 1" dia. 6B spline, tapped 5/16"-18
• Input Shaft 1" dia. x 2.3" long 6B spline
• Port 1/4" BSPP
• Mount Two-bolt SAE A brake mount
• Filtration ISO 17-14
• Recommended Viscosity 20-43 cSt (100-200 SUS) @ operating temp.
• Size 4-9/16" x 5-1/4" x 5-1/8"
• Shpg. 20 lbs.
