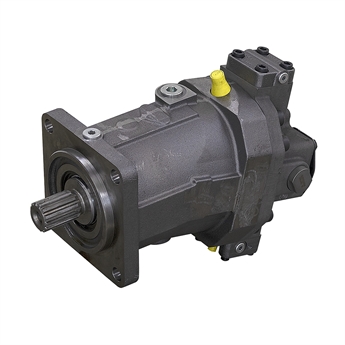

10.48 cu in Variable Displacement Axial Piston Hydraulic Motor Rexroth R902247182 A6M170HA1000004B/71ARV0D4T11U0-0

10.48 cu in REXROTH A6M170HA1000004B/71ARV0D4T11U0-0 HYDRAULIC MOTOR
New. Rexroth A6M170HA1000004B/71ARV0D4T11U0-0 axial piston variable motor. The automatic high pressure related control adjusts the displacement automatically depending on the working pressure.

SPECIFICATIONS

• Brand Rexroth
• Model A6M170HA1000004B/71ARV0D4T11U0-0
• Family A6VM
• Series 71
• Displacement 10.48 cu. in. / rev.
• Motor Type Axial Piston
• Rotation CCW
• Pressure:
     6527 PSI cont.
• Torque:
     10886 in-lbs. max.
• Speed:
     3100 RPM cont.
     5150 RPM int.
• Flow:
     140 GPM max.
• Mount Four bolt SAE D
• Shaft 1-3/4" dia. 13T, 2-1/2" long
• Ports 1-1/4", 4 bolt flange, code 62
• Case Drain SAE 16
• Size 17-1/2" x 8" x 12-1/2"
• Shpg. 187 lbs.
