Description

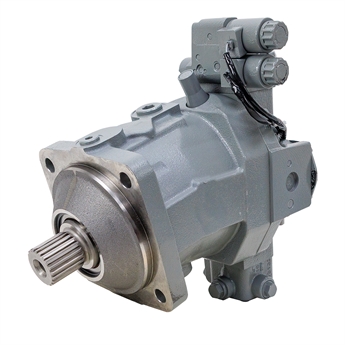

6.5 cu in MANITOU GROUP 50337802 HYDRAULIC MOTOR
New, Manitou Group 50337802 variable displacement axial piston hydraulic motor with rear work ports. Solenoid A controls direction (enegized cw, de-energized ccw) marked blue, solenoid B controls motor speed (energized low speed-high torque, de-energized high speed-low torque) marked red.

SPECIFICATIONS
  • Brand Manitou
  • Model 50337802
  • Family A6VM series 65
  • Size 107
  • Displacements
       6.5 cu. in. / rev. max.
       1.61 cu. in. / rev. min.
  • Motor Type Axial Piston
  • Rotation Reversible
  • Pressure:
       5800 PSI Nomimal
       6500 PSI Peak
  • Torque: 6027 in lbs @ 5800 PSI
  • Speed:
       3550 RPM Nomimal
       6300 RPM Peak
  • Flow: 100 GPM
  • Mount Four 17.5 mm dia. holes on 141.4 mm x 141.4 mm centers (ISO 3019-2 160-4)
  • Shaft 45mm dia. 21T spline (W45 x 2 x 30 x 21 x 9g)
  • Work Ports A & B 1" dia. 4 Bolt Flange code 62
  • Pilot Pressure Port X1 SAE 6
  • Drain Port T1 SAE 12
  • Drain Port T2 SAE 16
  • Port for Synchronous Control G SAE 6 (Plugged)
  • Flushing Port U SAE 10 (Plugged)
  • Gauge Port(Contol Pressure) M1 SAE 6 (Plugged)
  • Pilot Pressure Port X3 SAE 6 (Plugged)
  • Solenoid Voltage 12 Volt DC
  • Electroinc Connector Deutsch DT04-4P
  • Size 14.5" x 14" x 7.125"
  • Shpg. 115 lbs.
