DESCRIPTION

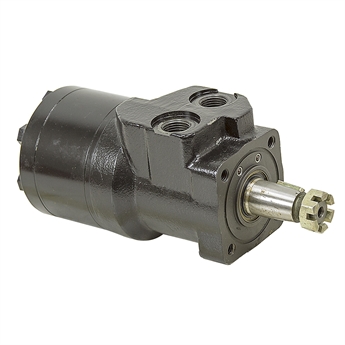

12.1 cu in WHITE DRIVE PRODUCTS 255200F3113AAAAA HYDRAULIC MOTOR
New, WHITE DRIVE PRODUCTS hydraulic motor. Roller stator motor design increases performance and efficiency in demanding light-duty applications. Spool and integral check valves provide superior performance over a wide speed and torque range.

SPECIFICATIONS

Brand White Drive Products
Model 255200F3113AAAAA
Family WR
Displacement 12.1 cu. in. / rev.
Motor Type Roller Stator
Rotation Reversible
Pressure:
2500 PSI cont.
3000 PSI int.
Torque:
4088 in-lbs. cont.
4814 in-lbs. int
Speed:
308 RPM cont.
384 RPM int.
Flow:
16 GPM cont.
20 GPM int.
Mount Four-bolt square
Shaft 1" dia. tapered x 2.29" long w/ 3/16" key and threaded end w/ castle nut
Ports SAE 10 Side Ports, Aligned
Case Drain None
Size 6.83" x 5.25" x 4"
Shpg. 17 lbs.
