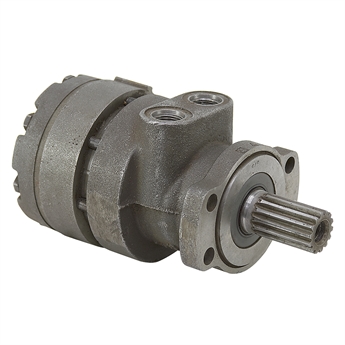

22.8 cu in White Drive Products Hydraulic Motor

22.8 cu in WHITE DRIVE PRODUCTS HYDRAULIC MOTOR
Unused, old inventory. Roller stator motor design increases performance in demanding applications. A heavy-duty drive link and pressure-fed bearing surface increase longevity of motor.

SPECIFICATIONS

• Displacement 22.8 cu. in. / rev.
• Motor Type Gerolor
• Rotation Reversible
• Pressure:
     3000 PSI cont.
     4000 PSI peak
• Torque:
     360 in-lbs. per 100 PSI
• Speed:
     250 RPM @ 25 GPM
• Flow:
     25 GPM max.
• Mount Four-Bolt SAE A
• Shaft 1-1/4" x 2-3/8" 14T spline
• Ports SAE 10
• Case Drain N/A
• Size 7-1/8" x 5-1/8" x 4-7/8"
• Shpg. 27 lbs.
