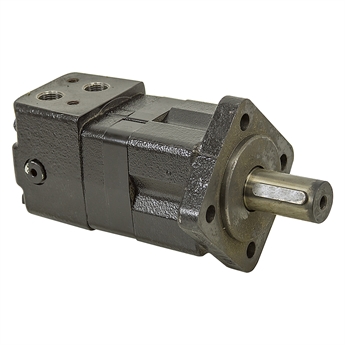

6.9 cu in WHITE DRIVE PRODUCTS 355110AH321BAAAA HYDRAULIC MOTOR
New, WHITE DRIVE PRODUCTS hydraulic motor. Roller stator motor design increases performance in demanding light-duty applications. A heavy-duty drive link and pressure-fed bearing surface increase longevity of motor. Valve cavity features a cartridge valve marked "EPN 349 050426."
SPECIFICATIONS
- Brand White Drive Products
- Model 355110AH321BAAAA
- Family WS
- Disp. 6.9 cu. in. / rev.
- Motor Type Gerotor
- Rotation Reversible
- Pressure:
3000 PSI cont.
4500 PSI int.
- Torque:
2715 in-lbs. cont.
4145 in-lbs. int.
- Speed:
675 RPM cont.
840 RPM int.
- Flow:
20 GPM cont.
25 GPM int.
- Mount Four-bolt SAE A
- Shaft 32mm dia. x 2.54" long, keyed, tapped M8 x 1.25
- Ports 1/2" BSPP and Manifold Ports, Offset
1/2" BSPP I.D.
Two holes tapped M10 x 1.5 on 42mm x 32mm centers
- Case Drain 1/4" BSPP
- Size 8" x 5-5/8" x 5-5/8"
- Shpg. 26 lbs.
