Hydraulic Rotary Actuator Rotac HYD-RO-AC SS0041V

Item Number: 9-10595

Price: $399.95
TOP
Back to top

Hydraulic Rotary Actuator Rotac HYD-RO-AC SS0041V

Hydraulic Rotary Actuator Rotac HYD-RO-AC SS0041V

item number: 9-10595 PRICE: $399.95 6 In Stock Surplus Item



Available for in store pickup in our Lincoln, NE location
calculate shipping
Calculate Shipping for Item 9-10595
Hydraulic Rotary Actuator Rotac HYD-RO-AC SS0041V
Item Number: 9-10595
Price: $399.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
ROTARY ACTUATOR

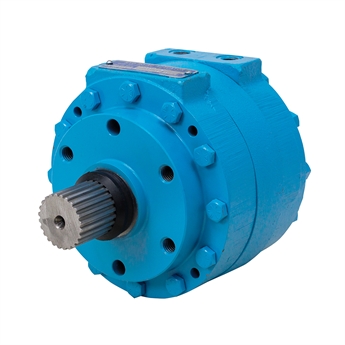

New, Rotac Hyd-ro-ac SS0041V rotary actuator. Provides the muscle for countless applications involving lifting, turning, indexing, opening, closing, clamping, mixing, bending, testing, steering, and more. (Important Notes to Avoid Actuator Damage) 2,000 PSI maximum is recommended for severe duty applications, such as operating at maximum torque at high cycle rates for extended periods. External stops must be used to limit shaft rotation for most applications. Using the actuators internal components as rotational stops will cause damage. It is critical that the hydraulic system have pressure relief located in close proximity to the actuator to prevent pressure spikes from damaging the actuator. It is recommended the hydraulic fluid be filtered to 5 microns or less (maximum of 10 microns). Unit must be mounted at both ends to prevent torsional racking.

SPECIFICATIONS
  • Brand Rotac
  • Model Number SS0041V
  • Series SS
  • Vane Single Vane
  • Max. Pressure 3000 PSI
  • Displacement 18.59 cu. in. per 280°
  • Torque
        3430 in-lbs @ 1000 PSI
        6860 in-lbs @ 2000 PSI
        10300 in-lbs @ 3000 PSI
  • Ports 1/4" NPT (1/4"-18 Tapered)
  • Shafts
        1.545" dia. 24 T involute spline
        1.545" dia. plain
  • Mounting Both Ends Four 1/2"-13 TPI thread holes on 4" B.C.
  • Size 10-1/2" x 6-5/8" x 6-1/2"
  • Shpg 49 lbs.
