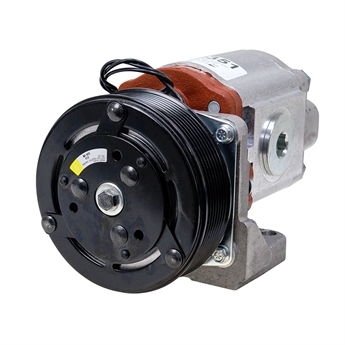

2.32 cu in Hydraulic Clutch Pump w/ 5.5" Eight Groove Serpentine Belt Pulley Bailey 252351

HYDRAULIC CLUTCH PUMP
Brand new, Bailey 252351 hydraulic clutch pump with 5.5" Eight groove serpentine belt pulley. Aluminum pump body. Compact design featuring double shaft seals, rear, and side ports (side ports with steel plugs). Assembly features Salami 2.5PB-38 gear pump, Ogura MA-N05 electromagnetic mobile clutch and Hydra Mount aluminum foot mount.

SPECIFICATIONS

• Brand Bailey
• Part Number 252351
• Clutch Pulley Eight groove serpentine 5.5" dia.
• Clutch Static Torque 90 ft. lbs.
• Clutch Power 12 Volt DC, 47 Watt, 3.9 Amps
• Pump Displacement 2.32 cu. in. / rev.
• Pump Type Gear
• Rotation CW
• Pressure 2900 PSI
• Speed 400-2750 RPM
• Flow 27.1 GPM @ 2698 RPM
• Mount Four 0.5" diam. holes on 4" x 2" centers
• Inlet Port SAE 20
• Outlet Port SAE 12
• Size 9" x 6" x 6"
• Shpg. 30 lbs.
