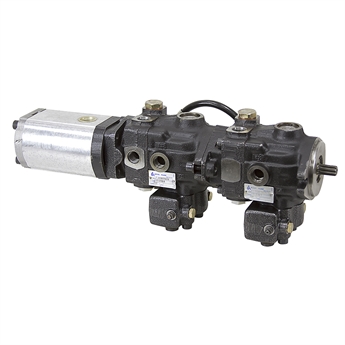

0.43/0.43/0.69 Axial Pump/Casappa Hydraulic Triple Pump

Item Number: 9-7705

Price: $599.95
TOP
Back to top

0.43/0.43/0.69 Axial Pump/Casappa Hydraulic Triple Pump

0.43/0.43/0.69 Axial Pump/Casappa Hydraulic Triple Pump

item number: 9-7705 PRICE: $599.95 14 In Stock Surplus Item


calculate shipping
Calculate Shipping for Item 9-7705
0.43/0.43/0.69 Axial Pump/Casappa Hydraulic Triple Pump
Item Number: 9-7705
Price: $599.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
0.43/0.43/0.69 CU IN AXIAL PUMP/CASAPPA 7.018075036/PLP20.11,2-95B6-LO HYDRAULIC PUMP
New, Axial Pump/Casappa Model 7.018075036/PLP20.11,2-95B6-LO tandem hydraulic servo controlled variable piston pump  and a  double gear pump attached to rear. Tandem piston pump allows for vehicle propulsion with individual remote pilot servo control valves.  Ideal for mobile vehicle drives with a gear pump on rear to operate hydraulic system.

SPECIFICATIONS
  • Disp.
      Front/Middle 0.43 cu. in/rev.
      Rear 0.69 cu. in./rev.
  • Pump Type Piston/Gear
  • Rotation CW
  • Pressure:
      5076 (front and middle) 3600 (rear) PSI Max.
  • Speed:
      3600 RPM Max.
  • Flow:
      Front/Middle 6.74 GPM @ 3600 RPM.
      Rear 10.75 GPM @ 3600 RPM.
  • Mount 2 bolt SAE A
  • Shaft 5/8" 9T spline, 1-5/16" long
  • Inlet Port Front/Middle SAE 8, Rear SAE 12
  • Outlet Port Front/Middle SAE 4, Rear SAE 10
  • Size 19-1/4" x 6-1/2" x 7-1/2"
  • Shpg. 55 lbs.
Warranty
90 Day Surplus Center WarrantyView Warranty
Warranty Information

Products we regularly stock that are purchased directly from the manufacturer are covered by that manufacturers warranty.


We warrant all other products, only to the original purchaser, to be free from defects in materials and workmanship for a period of 90 days from date of shipment.


Because we have no assurance of the purposes for which any of the items herein will or may be used, no warranty is given as to the fitness of the item for any particular purpose. You have the responsibility for determining the suitability of items herein for your particular use. We shall not be liable for incidental or consequential damages.


NOTE! Warranties do not cover bent hydraulic cylinder shafts.


We shall, at our option, repair or replace any items deemed by us to be defective under this warranty. Items returned by the purchaser for warranty adjustment must be handled as stated in our return policy. Proof of, and date of purchase will be required.


Remedies under this warranty shall be limited to the original purchase price of the claimed defective item. (Some states do not allow limitations on implied warranties, incidental or consequential damages, thus, some of the limitations or exclusions referred to above may not apply to you.)


In no event shall we be liable for any damages, or warrant any of our products which are made defective as a result of damage in shipment, user's abuse, neglect or improper operation.



Ask A Question
Submit a question for this product

Showing Questions of 7

Is the flow for the piston sections reversible?

A: Yes

is there a charge pump for variable pumps?

A: We only have this piece and no information about the system it was meant to be installed in. We cannot say.

What is the country of manufacture for all three pumps

A: Italy

Do you have any remote pilot servo control valves that will work to control this pump?

A: Any directional control valve with fine metering and work ports blocked in neutral (for sustained actuation) could be used to control the pilot flow for the servos.

how are the servo's controlled any more info on them ??

A: The servos are hydraulically controlled. We have limited information on this pump, and the item's page is updated as any new information comes in.

Are the front and middle pumps variable displacement? If so, are they pressure-compensated, servo-controlled etc.? Thanks in advance.

A: The front and middle pumps are variable displacement, hydraulic servo controlled.

Is the rotation on this pump and others, based with the shaft facing you or pointing away from you? If it was pointing at you, this CW pump would mount to say a standard CCW engine, correct?. That's my confusion.

A: We call out pump rotation as facing the shaft. If this pump were being driven by direct shaft-to-shaft mount, the driver would be turning CCW as facing it.
