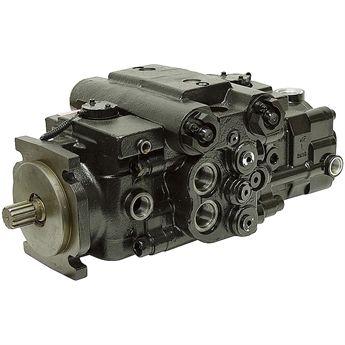

3.0 cu in Eaton 350 Dual Servo Hydrostatic Tandem Piston Pump

3.0 CU IN DUAL SERVO CONTROLLED VARIABLE DISPLACEMENT AXIAL PISTON PUMP
New, EATON 350 series model AED2RBBAW2AW342CHBHB00000000C45AA0CAD0BAA. This dual tandem mobile pump is an advanced closed circuit, servo controlled, axial piston design for medium duty hydrostatic circuits. Features hydraulic servo control, tapered roller bearings on shaft, needle bearings under swash plate, internal charge pump, work port reliefs, charge port relief, swash plate position sensors and auxiliary rear pump mount.

SPECIFICATIONS

• Disp. 3.00 cu. in. / rev. each pump
• Pump Type Variable piston
• Rotation CW
• Pressure:
    4000 PSI cont.
    5500 PSI int.
• Speed:
    500 RPM min.
    3600 RPM max.
• Flow:
    6 GPM min. each pump
    44 GPM max. each pump
• Mount 4 bolt SAE C
• Work Port Relief Setting 5500 PSI
• Control Assembly Pilot Pressure Range 72-217 PSI
• Auxiliary Mount 2 bolt SAE A for 3/4" 11 tooth spline shaft
• Shaft 1-1/4" diameter 14 tooth spline
• Charge Inlet Port SAE 16
• Work Ports SAE 16
• Servo Ports SAE 4
• Case Drains SAE 10
• Size 20" x 12" x 9"
• Shpg. 210 lbs.
