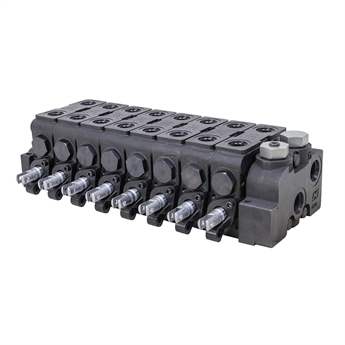

8 Spool Wolverine by Prince 20 Series Sectional Hydraulic Control Valve Open Center

BUILD YOUR OWN WOLVERINE BY PRINCE STACK VALVE
Brand new WOLVERINE by PRINCE 20 Series hydraulic sectional control valves. Replaces Parker/Gresen V20 & Prince Series 20 valves. All valve components are sold individually to build a complete valve or used as replacement parts. Work sections are furnished with between the section o-ring seal kit. Black Phosphate coated cast iron construction with chrome plated spools.
Inlet has both top and side ports. Outlet has side ports only.

Handles are not included.  Purchase horizontal or vertical handles separately for each spool.

Horizontal Handle Kits Surplus Center Item Number 9-WV20-K-HH-B
Vertical Handle Kits Surplus Center Item Number 9-WV20-K-VH-B

Specifications for Y Valves

• Flow 25 GPM (nominal)
• Pressure 3500 PSI maximum
• Adjustable Relief 1500-3000 PSI, factory set at 2000 PSI
• Open Center with Power Beyond
• Inlet and Outlet Ports SAE 12
• Work Ports SAE 10
• Size 8-5/8" x 16" x 3-1/4"
• Shpg. 60 lbs.
