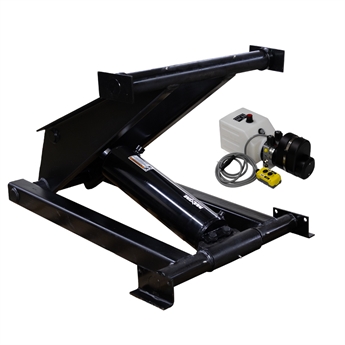

8-20 Ton Scissor Hoist Kit for Dump Trailers Maxim 516

8-20 TON SCISSOR HOIST KIT
Brand new, Maxim 516 scissor hoist kit rated for dump trailers with 8-20 ton capacities and 8-12' bodies (Not recommended for truck bodies). Designed for durability and safety. Used to move heavy loads of material off a dump trailer’s bed with ease. Scissor hoists are much more robust and provide more lifting power than standard cylinder dumps. Also cost less than telescopic hoists, while providing similar lifting performance and reliability. A double-acting hydraulic power unit with free flow in extend and controlled flow in return is recommended.

HOIST SPECIFICATIONS

• Brand Maxim
• Kit Model Number 516
• Hoist Model Number 325038
• Capacity 8-20 Tons
• Trailer Body 8-12'
• Cylinder Size 5" x 15.57"
• Size 44" x 30.5" x 10.18"

POWER UNIT SPECIFICATIONS

• Power Unit Model Number 253343
• Voltage 12 Volt DC
• Flow 1.2 GPM @ 2800 PSI
• Pump 2.1 cc/rev.
• Maximum Pressure 3300 PSI
• Circuit Double Acting
• Tank Size 6-quart
• Size 20" x 7" x 7"

Parts List
     516 Scissor Hoist (painted black) (1)
     Installed 5" x 15.91" Welded Cylinder (1)
     Steel Zinc Solid Set Screw Clamping Collars (2)
     L-Shaped Mounting Bracket (2)
     Flat Mounting Bracker (2)
     Safety Arm (1)
     Safety Arm Catch Cup (1)
     Dump Hinge (2)
     12 Volt DC Hydraulic Power Unit (1)
     20" Battery Cable, 4 GA, Red (1)
     20" Battery Cable, 4 GA, Black (1)
     15" Rubber Strap (1)
     Locking Collars (2)
     2.0 GPM Pressure Compensated Flow Control Valve, SAE 6 to JIC 6 (1)
     90-Degree Adapter Male JIC 6 to SAE 6 Male O-Ring (2)
     Straight Adapter Male JIC 6 to SAE 6 Male O-Ring (1)

• Shpg 425 lbs.
