Description

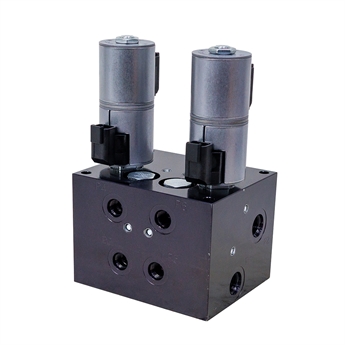

12 VOLT DC DOUBLE SOLENOID MOTOR SPOOL VALVE
New, Hydraforce HF99086-15 (150-4579) 12 volt DC double solenoid motor spool valve. Black anodized block. Includes: (Two) SV10-47-D-0-N-0 solenoids, (Four) 4304112 12 Volt DC coils, (Two) DC08-40-0-N-135 pilot operated check valves and (Two) 6112050 orifice plugs.

SPECIFICATIONS
  • Brand HydraForce
  • Model Number HF99086-15
  • Float Center
  • Solenoid Model Number SV10-47-D-0-N-0
       4-Way, 3-Postion
       Motor Spool
  • Coil Model Number 4304112
       12 Volt DC
       Deutsch DT04-2P Connectors
  • Check Valve Model Number DC09-40-0-N-135
       Dual pilot operated
       Bias Spring (135 PSI)
  • Orifice Plug Model Number 6112050
       Orifice Diameter 0.050"
  • Temperature -40 to 212° F (-40 to 100° C)
  • Operating Pressure 3500 PSI
  • Flow 5 GPM
  • Ports P, P2 & T SAE 8
  • Ports P3, P4, P5 & P6 SAE 6
  • Mount Four 0.344" dia. thru holes on 4.7" x 3.7" centers
  • Size 8.375" x 5.5" x 4.5"
  • Shpg 16 lbs.
