Description
DESCRIPTION

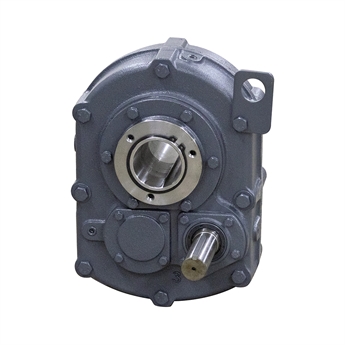

25:1 SHAFT MOUNT REDUCER
Brand new, WORLDWIDE ELECTRIC CORP Eliminator screw conveyor shaft mount reducers. Cast iron housing, high grade case hardened steel gears and shafts. Double lip seals. Metal reinforced double lips, spring loaded oil seals. Ball bearings. Tapered bushing output (bushing not included). Torque arm included. Suitable for screw conveyor applications when used with screw conveyor flange and drive shaft (Not included). Interchangeable with DODGE, HUB CITY, EDISON and BROWNING shaft mount reducers.

SPECIFICATIONS
  • Brand WORLDWIDE ELECTRIC CORP
  • Model SCSMR3-25/1
  • Ratio 25:1
  • Input Power see table below
  • Output see table below
  • Torque see table below
  • Input Shaft 1-1/4" diam. X 4-5/16" w/ 1/4" keyway
  • Output Bore see table below
  • Size 9-1/4" x 12-7/8" x 7-9/16"
  • Shpg. 140 lbs.
Service Class I Service Class II Service Class III
HP RPM Torque HP RPM Torque HP RPM Torque
0.75 4-5 10597-8477 in-lbs 0.5 4-5 7065-5652 in-lbs 0.5 6-7 4710-4037 in-lbs
1 6.7 9419-8074 in-lbs 0.75 6-7 7065-6055 in-lbs 0.75 8-10 5298-4239 in-lbs
1.5 8-10 10597-8477 in-lbs 1 8-10 7065-5652 in-lbs 1 10-16 5652-3532 in-lbs
2 12-16 9419-7065 in-lbs 1.5 12-16 7065-5298 in-lbs 1.5 18-24 4710-3532 in-lbs
3 18-30 9419-5652 in-lbs 2 16-24 7065-4710 in-lbs 2 24-38 4710-2975 in-lbs
5 32-50 8831-5652 in-lbs 3 26-46 6521-3686 in-lbs 3 40-70 4239-2422 in-lbs
7.5 52-74 8151-5728 in-lbs 5 50-74 5652-3819 in-lbs 5 74-85 3819-3324 in-lbs
10 78-85 7246-6649 in-lbs 7.5 78-85 5434-4987 in-lbs - - -

OUTPUT BORE OPTIONS
BORE ITEM # BORE ITEM #
1-11/16" 13-3-TBK-11116 1-3/4" 13-3-TBK-134
1-7/8" 13-3-TBK-178 1-15/16" 13-3-TBK-11516
2" 13-3-TBK-2 2-3/16" 13-3-TBK-2316

OTHER OPTIONS
MOTOR MOUNT 13-3-MM
BELT GUARD 13-3-BG
SCREW CONVEYOR FLANGE 13-3SCF
SCREW CONVEYOR DRIVE SHAFT 13-3SCDS-2.716
