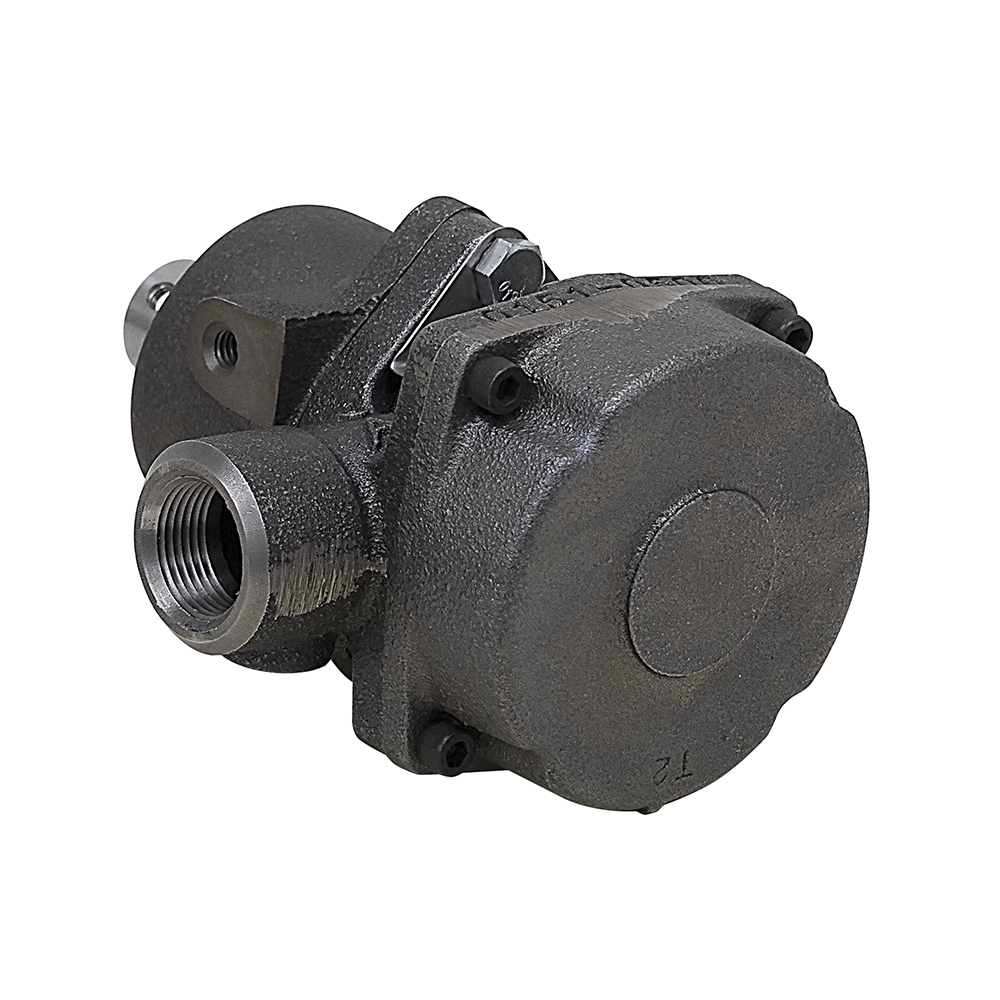

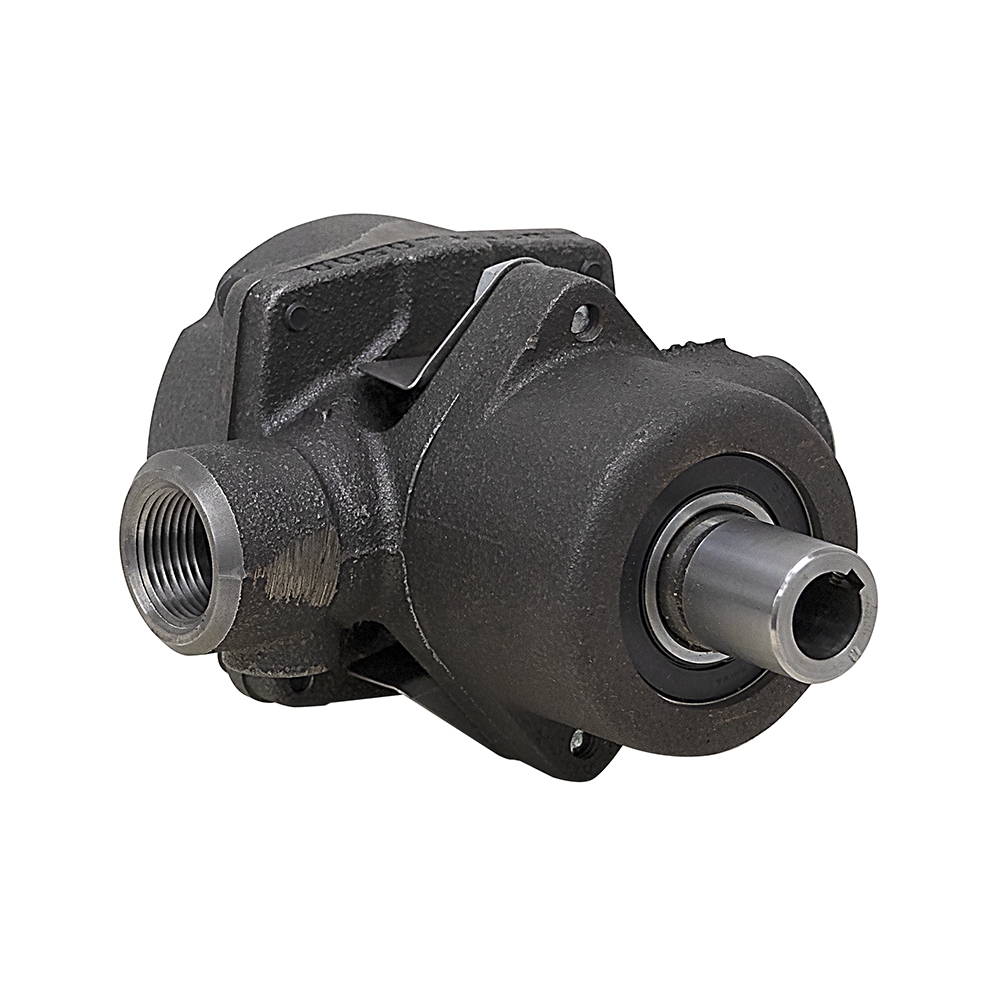

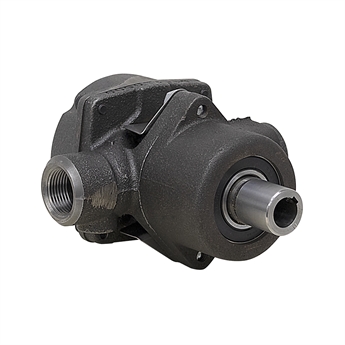

510C-DHA Hypro 5 Roller Pump

ROLLER PUMP
New. Hypro 510C-H five roller pump. Used to handle hot oils and heat transfer liquids to 400° F. Typical applications are in filtering systems for reclaiming and clarifying hot cooking oils, machine coolants and similar lubricating liquids (Not recommended for water). In filtering applications, input must be screened or filtered. Pump can handle viscous liquids to 2000 SSU (350 centipoise).

SPECIFICATIONS

• Brand Hypro
• Model Number 510C-DHA
• Ports 3/4" NPT
• Rotation Reversible
• Shaft 5/8" hollow w/keyway
• Max Speed 1800 RPM
• Flow
             10 psi                         50 psi
    9.9 GPM @ 1750 RPM    9.3 GPM @ 1750 RPM
    8.5 GPM @ 1450 RPM    7.9 GPM @ 1450 RPM
• Mount Two holes tapped 5/16"-18 on 1-1/2" centers
• Size 6" x 5-3/4" x 3-3/4"
• Shpg 9.5 lbs.
