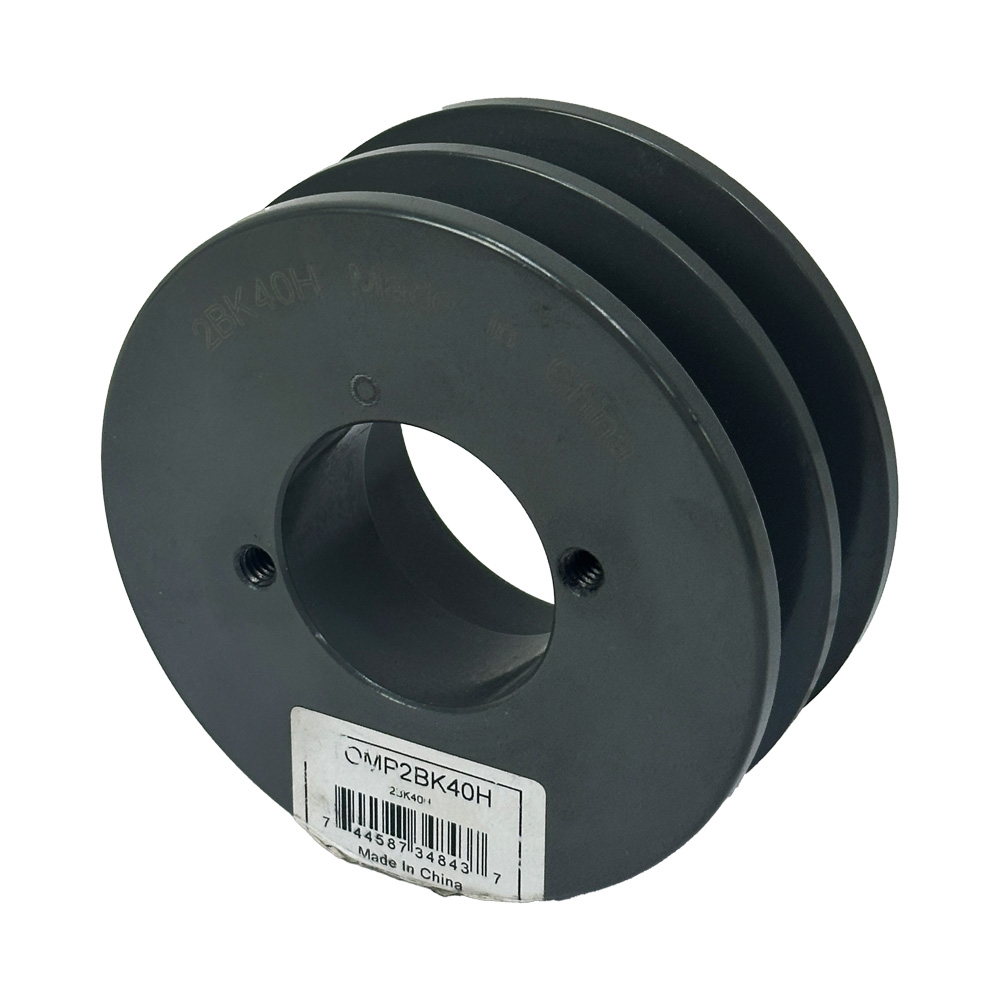

3.95 OD H-Bushing Double Groove Pulley

   Returned Item:  This pulley was installed and has mark from set screw. Sold as is.

H BUSHED BORE DOUBLE GROOVE PULLEY
Fractional HP, double groove, cast iron pulley. Use with a H-type split taper bushing (sold separately). For use with type "A" and "B" belts. Fully balanced.
(Click here to see the corresponding H bushings)

SPECIFICATIONS

• Outside Diameter 3.95"
• Belt Type A (1/2") Datum Diameter 3.20"
• Belt Type B (5/8") Datum Diameter 3.60"
• Shpg. 3 lbs.

Outside Diameter Diameter measured at the outside of the pulley.

Datum Diameter The datum diameters are an industry standard reference point used for calculations such as center distance and belt length. The datum system replaces the pitch system for classical belts and pulleys to compensate for differences in manufacturers construction of belts.
