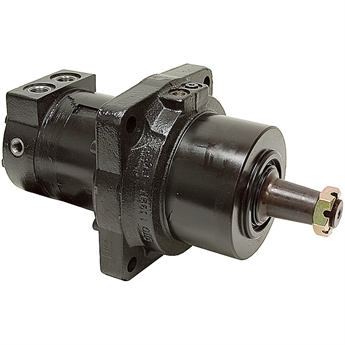

45.6 cu in HYD WHEEL MOTOR W/BRAKENew, White Hydraulics DT series wheel motor model 712750W8A31AAAAA. Provides extremely high torque output from a compact frame. Internal brake rated to hold 18000 lb.in. Requires 275 PSI oil to begin release, full release at 475 PSI. Brake port max pressure 3000 PSI.
SPECIFICATIONS - Disp. 45.6 cu. in. / rev.
- Motor Type Geroler
- Pressure:
2500 PSI cont. 3000 PSI int. - Torque:
15750 in-lbs. cont. 18500 in-lbs. int. - Speed:
130 RPM cont. 150 RPM int. - Flow:
25 GPM cont. 30 GPM int. - Rotation Reversible
- Mount 4 bolt wheel mount 8-1/4" bolt circle, 7.11" pilot dia. on backside of flange
- Nose dia. 5.5"
- Shaft 1-1/2" tapered shaft
- Ports 1/2" BSPP
- Brake Port SAE 4
- Case Drain 1/4" BSPP
- Size 7-3/4" x 7-3/4" x 11"
- Shpg. 75 lbs.
