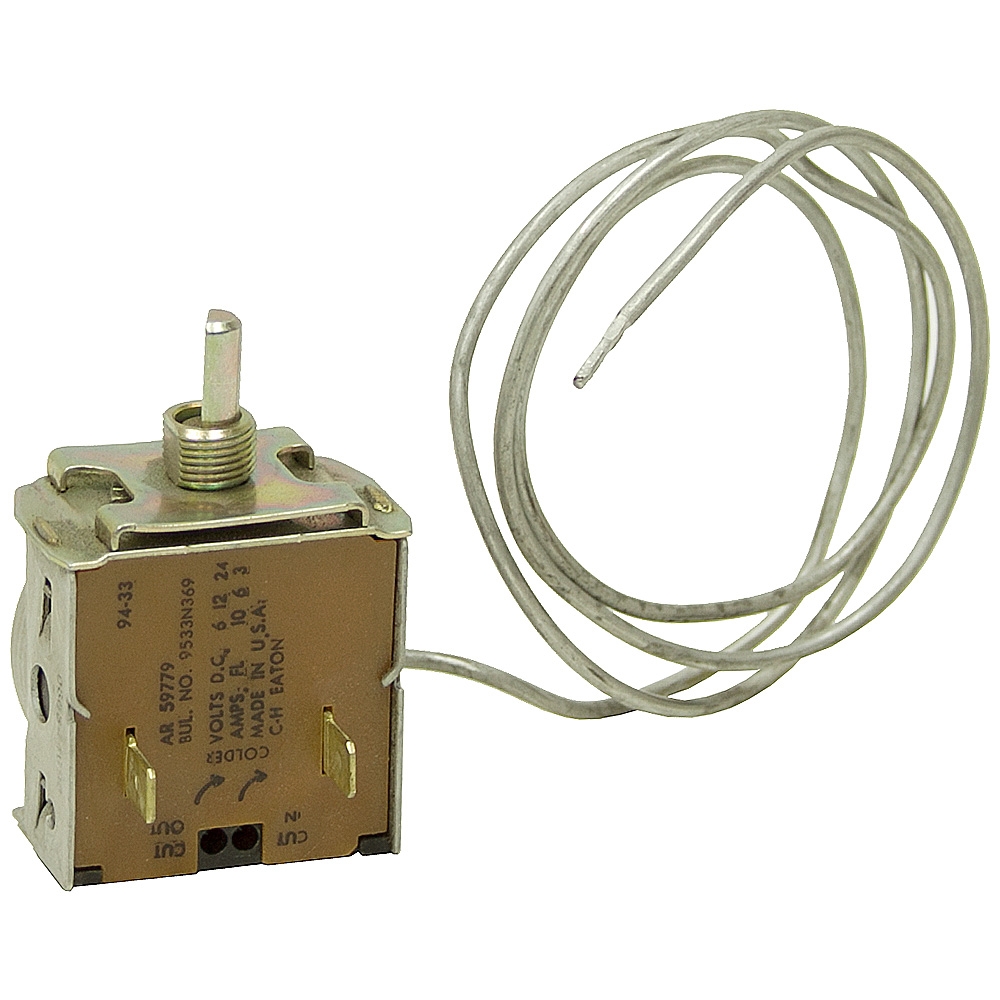

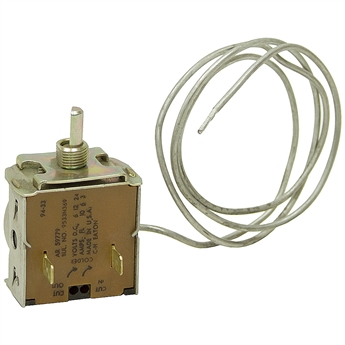

A/C Temperature Switch AR59779

JOHN DEERE A/C TEMPERATURE SWITCH
New, model AR 59779 AC/HT temperature switch. Replacement John Deer Part. Used in the following models.
Combines: 6600, 6620, 7700, 7720, 8820

Tractors: 2940, 4030, 4040, 4050,4055, 4230, 4240, 4250, 4450,4455, 4520, 4555, 4560, 4620,4630, 4640, 4650, 4755, 4760,4840, 4850, 4955, 4960, 5020,5200, 5210, 5300, 5310, 5400,5410, 5500, 5510, 8430 Model Year 1974-1981, 8440, 8450, 8630, 8640, 8650, 8850

SPECIFICATIONS

• Function SPST
• Contact Ratings
  10 amps @ 6 VDC
  6 amps @ 12 VDC
  3 Amps @ 24 VDC
• Set Point Temperature Unknown
• Temperature Differential Unknown
• Size 3-1/2" x 3" x 1-3/4"
• Shpg. 1/2 lbs.
