1.75x6x1 DA Hydraulic Cylinder 394581

Item Number: 9-9672

Price: $59.95
TOP
Back to top

1.75x6x1 DA Hydraulic Cylinder 394581

  • 1.75x6x1 DA Hydraulic Cylinder 394581
  • 1.75x6x1 DA Hydraulic Cylinder 394581 - Alternate 1
  • 1.75x6x1 DA Hydraulic Cylinder 394581 - Alternate 2

1.75x6x1 DA Hydraulic Cylinder 394581

item number: 9-9672 PRICE: $59.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-9672
1.75x6x1 DA Hydraulic Cylinder 394581
Item Number: 9-9672
Price: $59.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION

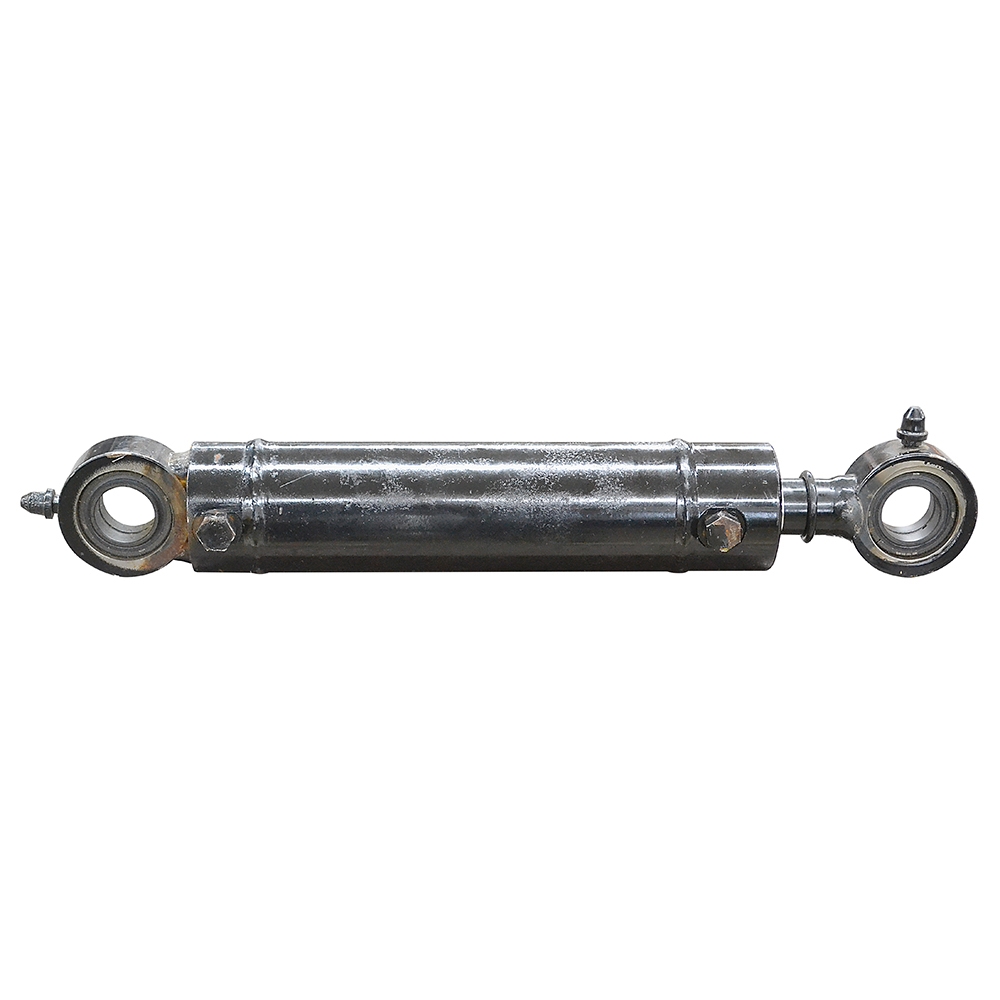

1.75" x 6" x 1" DA HYD CYL
Unused old inventory. Double acting hydraulic cylinder. Numbers on cylinder 394581

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 1.75" x 6"
  • Barrel Thickness 0.25"
  • Gland Retainer Welded Gland
  • Pressure 3000 PSI max.
  • Rod Dia. 1"
  • Ports SAE 4
  • Retracted Length 13.5"
  • Shpg. 11 lbs.
END MOUNTINGS

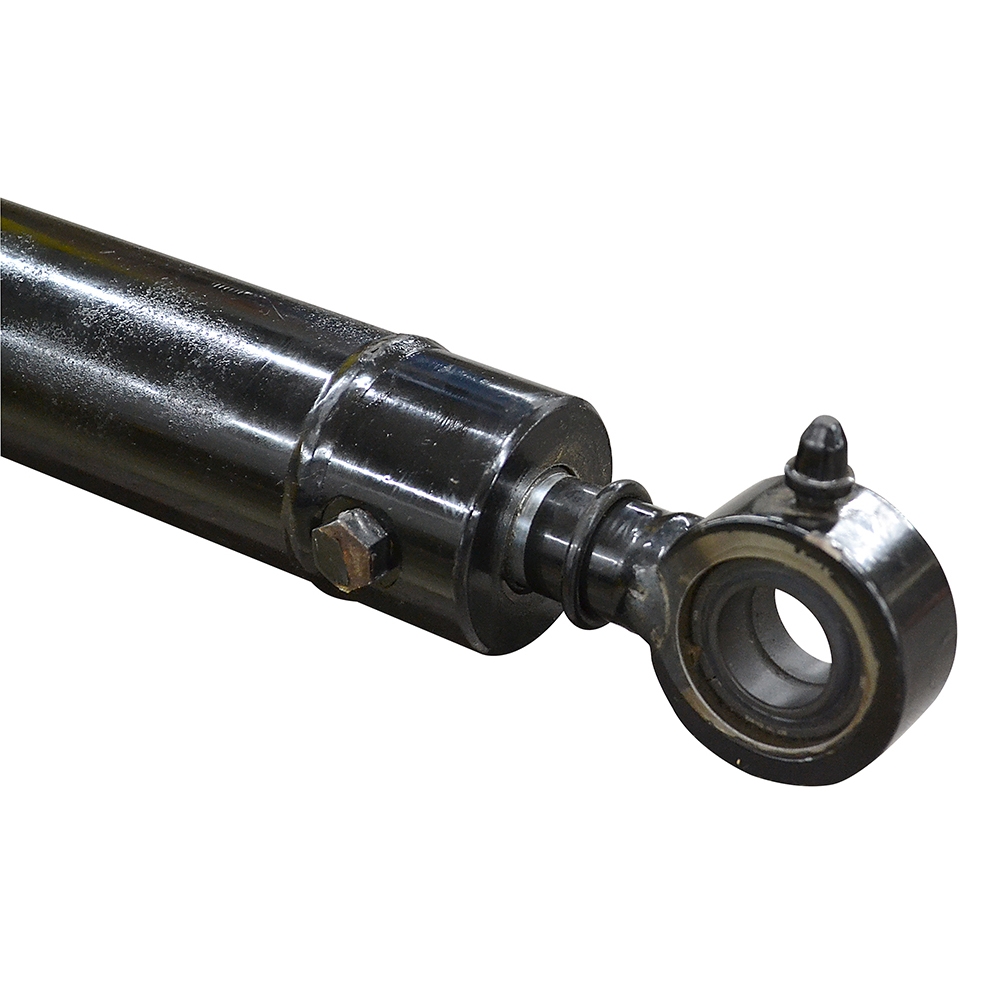

  • Rod End Swivel Eye
  • Thickness, Max 1"
  • Pin-Center-To-Tang-End 1.10"
  • Thru-hole Width 0.87"
  • Pin Hole 1"

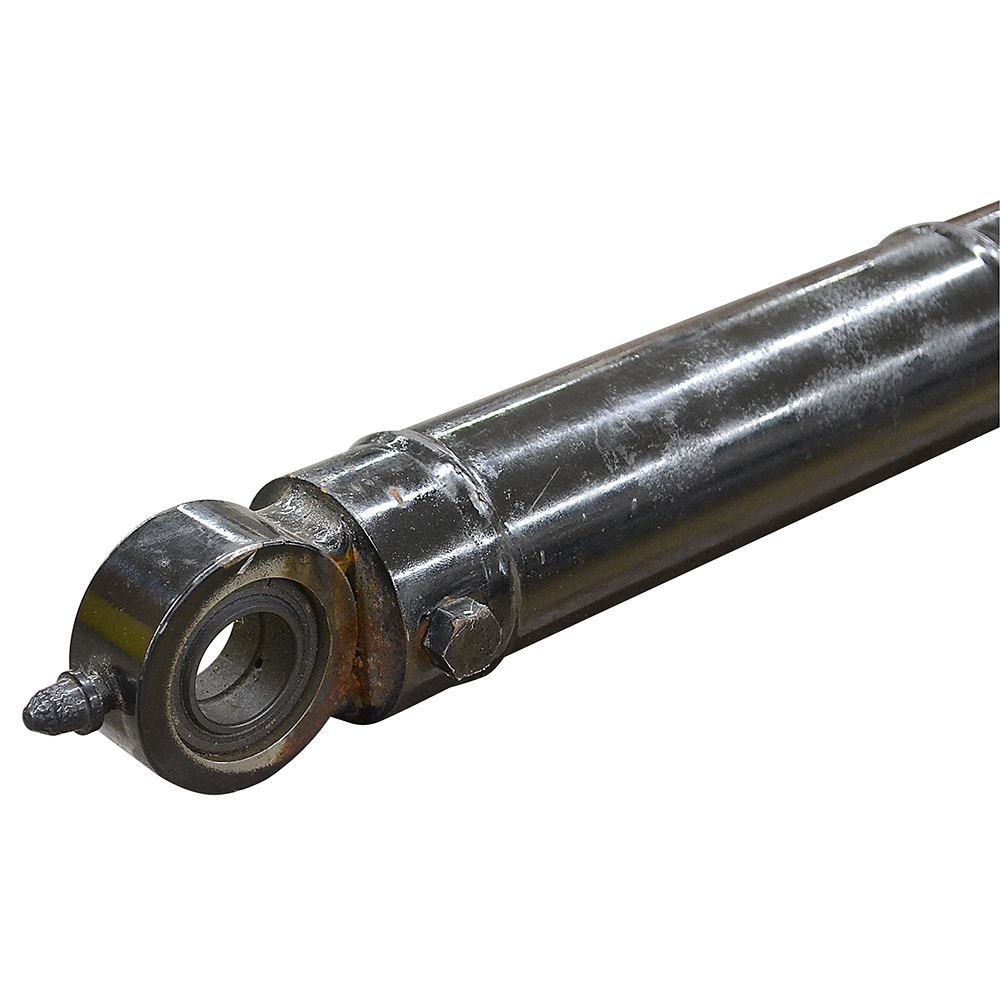

  • Base End Swivel Eye
  • Thickness, Max 1"
  • Pin-Center-To-Tang-End 1.13"
  • Thru-hole Width 0.87"
  • Pin Hole 1"
