3x7.83x1.75 Prince DA Hydraulic Cylinder BB-0752

Item Number: 9-8800

Price: $89.95
TOP
Back to top

3x7.83x1.75 Prince DA Hydraulic Cylinder BB-0752

  • 3x7.83x1.75 Prince DA Hydraulic Cylinder BB-0752
  • 3x7.83x1.75 Prince DA Hydraulic Cylinder BB-0752 - Alternate 1
  • 3x7.83x1.75 Prince DA Hydraulic Cylinder BB-0752 - Alternate 2

3x7.83x1.75 Prince DA Hydraulic Cylinder BB-0752

item number: 9-8800 PRICE: $89.95 Out of Stock - No Longer Available
Calculate Shipping for Item 9-8800
3x7.83x1.75 Prince DA Hydraulic Cylinder BB-0752
Item Number: 9-8800
Price: $89.95
Estimate shipping to:
Shipping Notes:
* UPS 3-Day, 2-Day, and Next Day orders entered before 1pm (CST) Mon-Fri will be shipped the same day. Orders entered Sat or Sun will be shipped the following Monday.
Description
DESCRIPTION

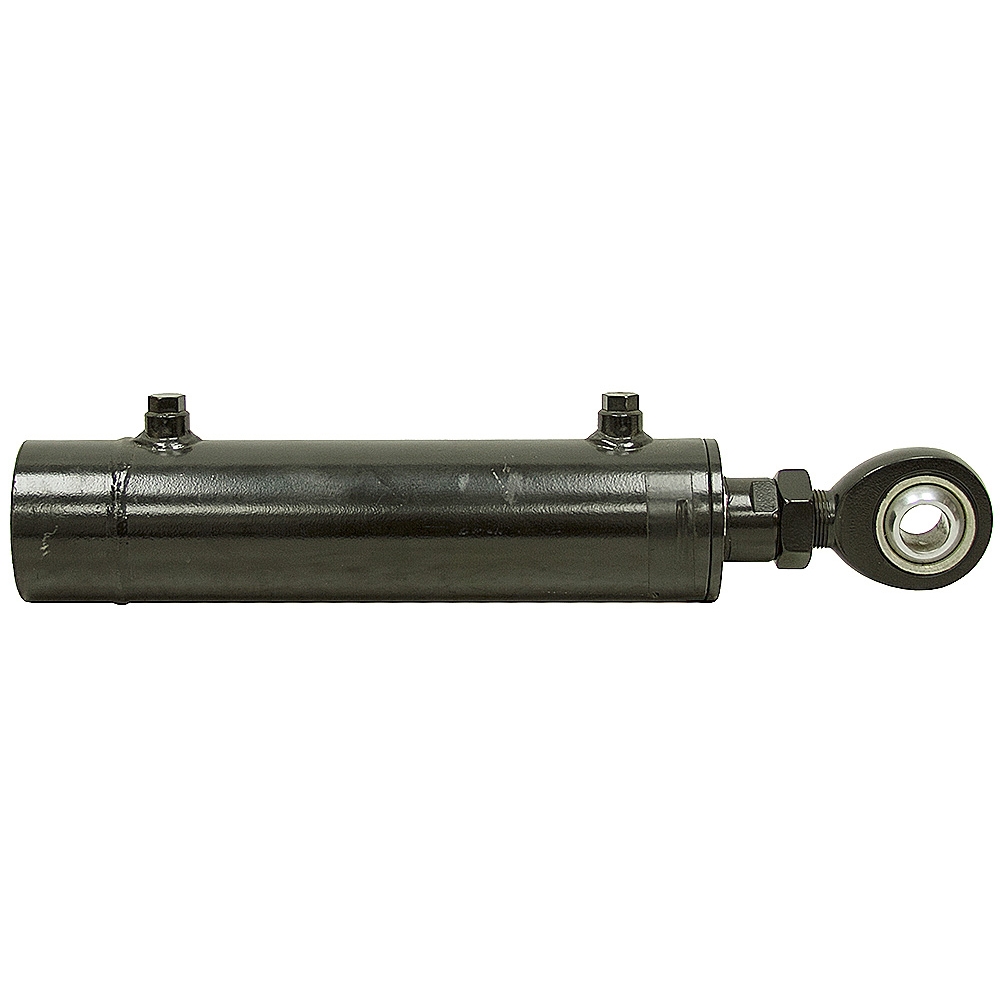

3" x 7.83" x 1.75" DA HYDRAULIC CYLINDER
New, Prince Mfg model# BB-0752 welded cylinder with wire-lock gland retainer.

SPECIFICATIONS
  • Double Acting
  • Bore x Stroke 3" x 7.83"
  • Barrel Thickness 3/16"
  • Pressure 3000 PSI max.
  • Rod Dia. 1-3/4"
  • Ports SAE 6
  • Retracted Length 18-1/2"
  • Shpg. 29 lbs.
END MOUNTINGS
  • Rod End Thread-On Tang w/ Ball Bushing
  • Max Thickness 1-3/8"
  • Pin Center to Tang End 1"
  • Thread size-Pitch 1-1/4"-12
  • Pin Hole 1"
  • Base End Tapped
  • Thread size-Pitch M24-3.0
  • Depth 1-1/2" w/ 1/4" Thread Relief
More Specs
MORE SPECS
Links To More Info On This Item
Click to view...

Instructions
Click on boxes below for more information about this product.
Dimensional DiagramMore Specs
